| Logic Type |
Noninverting Buffers |
| Power Supply (Min) (V) |
1.65 |
| Power Supply (Max) (V) |
5.5 |
| Channel |
1 |
| Data Rate (Max) (Mbps) |
/ |
| ICCA+ICCB (Max) (μA) |
1 |
| Temperature |
-40℃~125℃ |
| Tpd (Typ) (ns) |
3.7@3.3V |
| Package (mm) |
WBSOT353-5L(1.1) |
| Output Type |
|
| IOLmax (Max) (mA) |
32 |
| IOHmax (Max) (mA) |
32 |
Wide Supply Voltage Range: 1.65 V to 5.5 V
CMOS Low Power Consumption
Input Accept Voltage to 5.5 V
IOFF Supports Partial Power-Down-Mode Operation
tpd = 3.7 ns at 3.3 V
High Output Drive: ±24 mA at VCC = 3.0 V
Operating Temperature Range:-40 °C to 125 °C
SOT353 - 5L

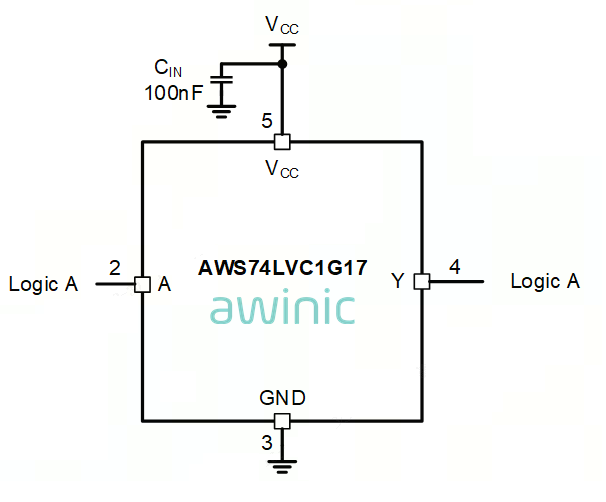

AWS74LVC1G17 is a single Schmitt-trigger buffer. The device accepts any supply voltage from 1.65 V to 5.5 V. The function of AWS74LVC1G17 is Y = A.
The device functions as an independent buffer with Schmitt-trigger inputs, so the device has different input threshold levels for positive going (VT+) and negative going (VT-) signals to provide hysteresis (ΔVT) which makes the device tolerant to slow or noisy input signals.
The AWS74LVC1G17 is fully specified for partial power-down applications using off output current (IOFF). The outputs for this device enter a high-impedance state when the device is powered down, preventing any damaging backflow current through the device.
