| Frequency (GHz) |
0.1~5 |
| Switch Feature |
DP4T antenna |
| Control Interface |
MIPI |
| VDD (Min) (V) |
/ |
| VDD (Max) (V) |
/ |
| VIO (Min) (V) |
1.65 |
| VIO (Max) (V) |
1.95 |
| P0.1dB (dBm) |
39 |
| IL (Min) (dB) |
0.57 |
| IL (Max) (dB) |
0.8 |
| ISO (Max) (dB) |
52 |
| ISO (Min) (dB) |
39 |
| Temperature |
-40℃~90℃ |
| Package (mm) |
QFN 2X2-16L |
•Broadband frequency range: 0.1 to 5 GHz
•Low insertion loss: 0.7dB typical @ 2.7 GHz
•High isolation: 41dB typical @ 2.7 GHz
•High power handling capability of up to 39 dBm
•MIPI RFFE V2.1 interface
•Single VIO supply
•No DC blocking capacitors in typical application
•Small WBQFN 2.0mm x 2.0mm x 0.55 mm -16L package

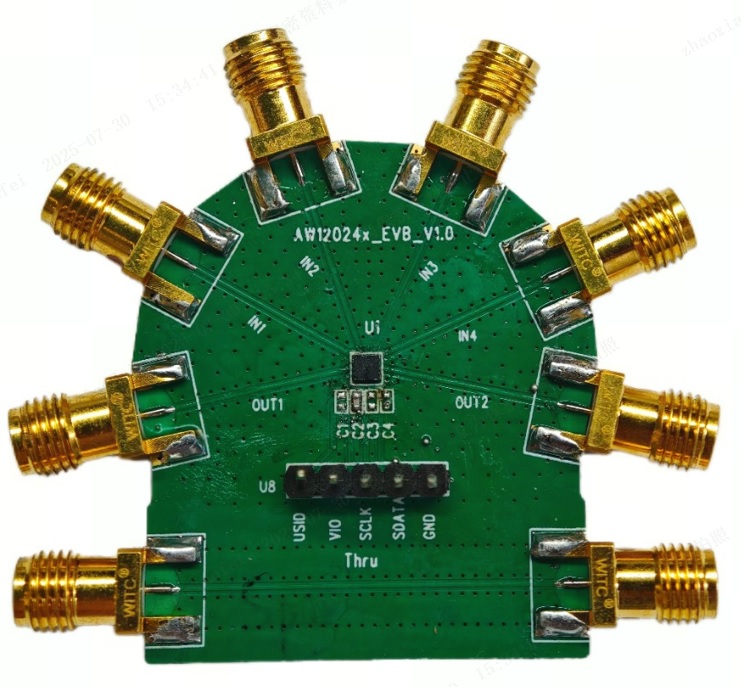

The AW12024T is a dual-pole four-throw switch with low insertion loss, high Isolation and high power capability. It is suitable for multi-mode LTE and 5G NR quadruple antenna applications.
The AW12024T is perfectly compatible with MIPI RFFE V2.1 control interface operating in 1.65 to 1.95V voltage range. It is provided in a compact 2.0mm x 2.0mm x 0.55mm size, 16-pin WBQFN package.
