With the rapid development of embedded systems today, traditional 8/16-bit MCUs are increasingly struggling to meet the demands of ever-more-complex applications. Higher computing performance, richer peripheral resources, more reliable industrial-grade quality, all while balancing cost and power consumption — this is almost universally what engineers are seeking.
Today, we bring you a versatile, cost-effective Cortex-M0+ core MCU. The AW32L005 perfectly balances performance, power consumption, and cost, making it an ideal choice for upgrading from traditional 8/16-bit MCUs, as well as an excellent solution for a wide range of applications including intelligent control, industrial automation, and consumer electronics.

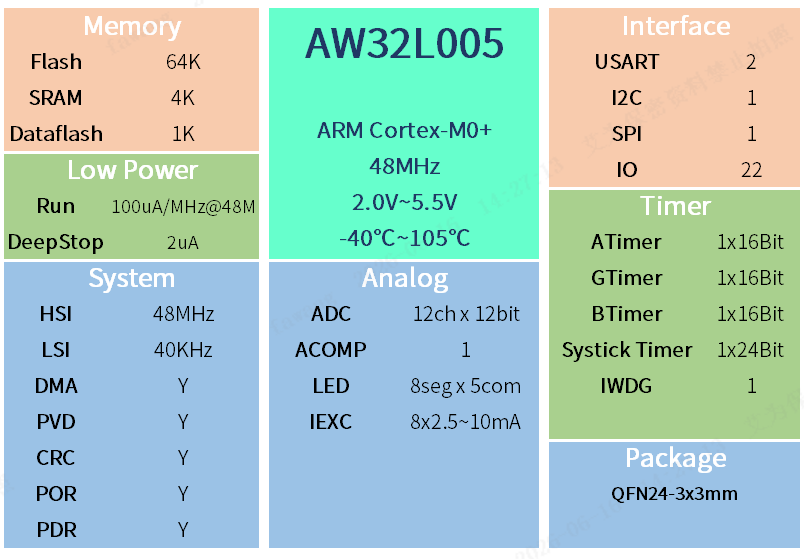

Figure 1 AW32L005 Resource Overview
I. General-Purpose Core + Ample Storage + Rich Peripherals
Core
Equipped with the industry-recognized low-power, high-performance Arm® Cortex®-M0+ core, operating at up to 48MHz, delivering computing power far beyond that of traditional 8/16-bit MCUs. This enables shorter product development cycles, faster response times, and lower power consumption.
Memory
Built-in 64KB program Flash, supporting OTA (Over-The-Air) upgrades;
Built-in 4KB SRAM, sufficient for task execution and data caching needs;
Built-in 1KB data Flash, dedicated to storing user parameters and configuration information without occupying the main program space, supporting up to 100,000 erase/write cycles, meeting the lifetime requirements of the vast majority of products.
Peripheral Resources
One advanced timer, supporting complementary PWM output and dead-time adjustment, suitable for high-precision applications such as motor control and power conversion;
One general-purpose timer and one basic timer, meeting various timing, counting, and PWM output requirements;
Independent Watchdog (IWDG): effectively prevents program runaway and improves system stability;
Built-in high-speed analog comparator and 12-bit ADC, supporting a minimum conversion time of 1μs (1MSPS sampling rate), capable of simultaneously acquiring multiple analog signals. It enables high-precision, high-speed real-time acquisition of temperature, voltage, current, or sensor data, providing a solid foundation for precise control;
Efficient communication and interconnectivity: 2 USART interfaces, 1 SPI interface for connecting to Bluetooth, displays, Wi-Fi modules, sensors, and other peripherals; 1 I2C interface supporting multi-master mode.
II. Flexible I/O Design for Differentiated Product Advantages
The AW32L005 provides up to 22 fast I/O ports, supporting multiple multiplexed functions that can be flexibly configured according to application requirements. What's more, it features two unique I/O characteristics that make your product design more flexible and efficient:
Constant Current Source Output:
Up to 8 specific IOs can be configured as constant current source mode, offering four selectable current levels: 2.5/5/7.5/10mA, eliminating the need for additional constant-current circuits — particularly suitable for LED driving, sensor power supply, and similar applications.
High Sink Current Capability:
Up to 5 specific IOs can be configured as sink current mode, with a maximum sink current of up to 80mA, capable of directly driving relays, high-power LEDs, and other loads, simplifying external circuit design.
Figure 2 AW32L005 Application Scenarios
III. Industrial-Grade Quality — A Reliable Choice for Harsh Environments
In applications such as industrial control, automotive electronics, and outdoor equipment, chip reliability is of paramount importance. From the very beginning of its design, the AW32L005 has been developed to industrial-grade standards, ensuring stable operation under a variety of harsh conditions.
Wide Voltage + Wide Temperature Range
Operating voltage: 2.0V ~ 5.5V: supports battery-powered and industrial power supply systems, with strong tolerance to voltage fluctuations.
Operating temperature: available in two versions: -40°C ~ 85°C industrial grade and -40°C ~ 105°C extended industrial grade, meeting the temperature requirements of different applications.
Multiple Security Safeguards
Built-in hardware CRC calculation unit: enables fast data validation, ensuring the integrity of communication and stored data.
96-bit unique chip ID (UID): each chip has a globally unique identification number, which can be used for product encryption, anti-cloning, and other security applications.
Ultimate Low-Power Design
Supports multiple low-power modes including Sleep, Stop, and Deep Stop. In Deep Stop mode, the current can be as low as the microamp (μA) level, significantly extending the battery life of portable devices, making it especially suitable for portable and IoT applications.
Figure 3 AW32L005 Application Scenarios
IV. Broad Application Scenarios, Empowering Diverse Industries
With its outstanding performance, rich peripherals, and reliable quality, the AW32L005 can be widely applied in the following fields:
🔹 Consumer Electronics
Wireless chargers, power banks
Smart toys, robots
LED lighting control, dimming and color-tuning systems
Small appliance control boards
🔹 Industrial Control
Small motor drives, stepper motor control
Industrial sensors, transmitters
Power management, UPS systems
Industrial automation control nodes
IoT terminal nodes, data loggers
🔹 Product Upgrades and Replacement
Perfectly replaces traditional 8/16-bit MCUs, significantly enhancing product performance and functionality, shortening development cycles, and accelerating time-to-market.
From abundant peripheral resources to industrial-grade reliability, the AW32L005 MCU demonstrates outstanding comprehensive capabilities in every aspect. It is not only the best choice for upgrading from traditional 8/16-bit MCUs, but also an ideal partner for creating cost-effective, high-reliability embedded products.
Contact us today to obtain detailed product datasheets and development board samples, and begin your innovation journey!
