【Application Solution】 Low Power Consumption Enables Long Endurance, AWINIC Chips Empower Continuous Glucose Monitoring

2026-06-17

In the field of health management, Continuous Glucose Monitoring (CGM) has become an indispensable necessity for diabetic patients. China has a vast diabetic population, and patients with type 1 diabetes, type 2 diabetes requiring intensive insulin therapy, and gestational diabetes, in particular, urgently need accurate and continuous glucose data to scientifically guide treatment plans.

Traditional fingertip blood sampling is not only inconvenient to operate but also fails to capture blood glucose fluctuations during critical periods such as at night or after meals, making it easy to miss risk warning signals. In contrast, Continuous Glucose Monitors (hereinafter referred to as CGM) can display real-time dynamic blood glucose trend curves, provide early warnings of high and low blood glucose risks, and help patients adjust their diet, exercise, and medication regimens in a timely manner, truly shifting blood glucose management from passive response to active protection.


Figure 1 CGM wearing scenario

In response to the stringent demands of Continuous Glucose Monitors (CGM) for miniaturization and long endurance, AWINIC Technology has launched a series of small-package, low-power complete solutions, covering key components such as Hall switches, load switches, boost DC-DC converters, and operational amplifiers. The specific application architecture is as follows:

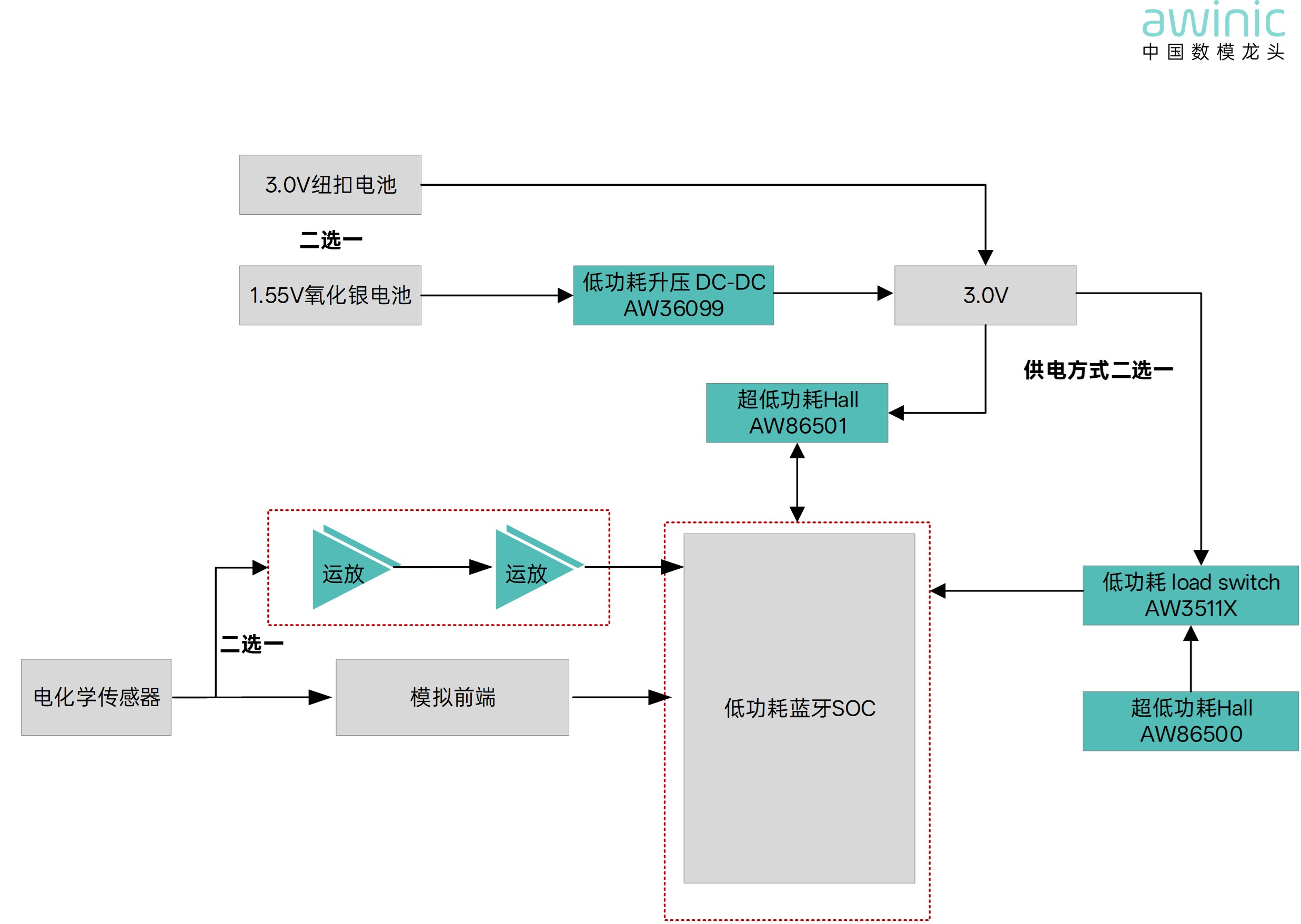

Figure 2 CGM application block diagram

Product Features

Low-voltage, Low-power, Small-package Boost

The AW36099X series is AWINIC's self-developed high-efficiency, ultra-low-power synchronous boost converter, highly suitable for 1.55V silver-oxide battery power supply scenarios and capable of meeting the boost requirements of the downstream SoC and peripheral circuits. The AW36099X series features are as follows:

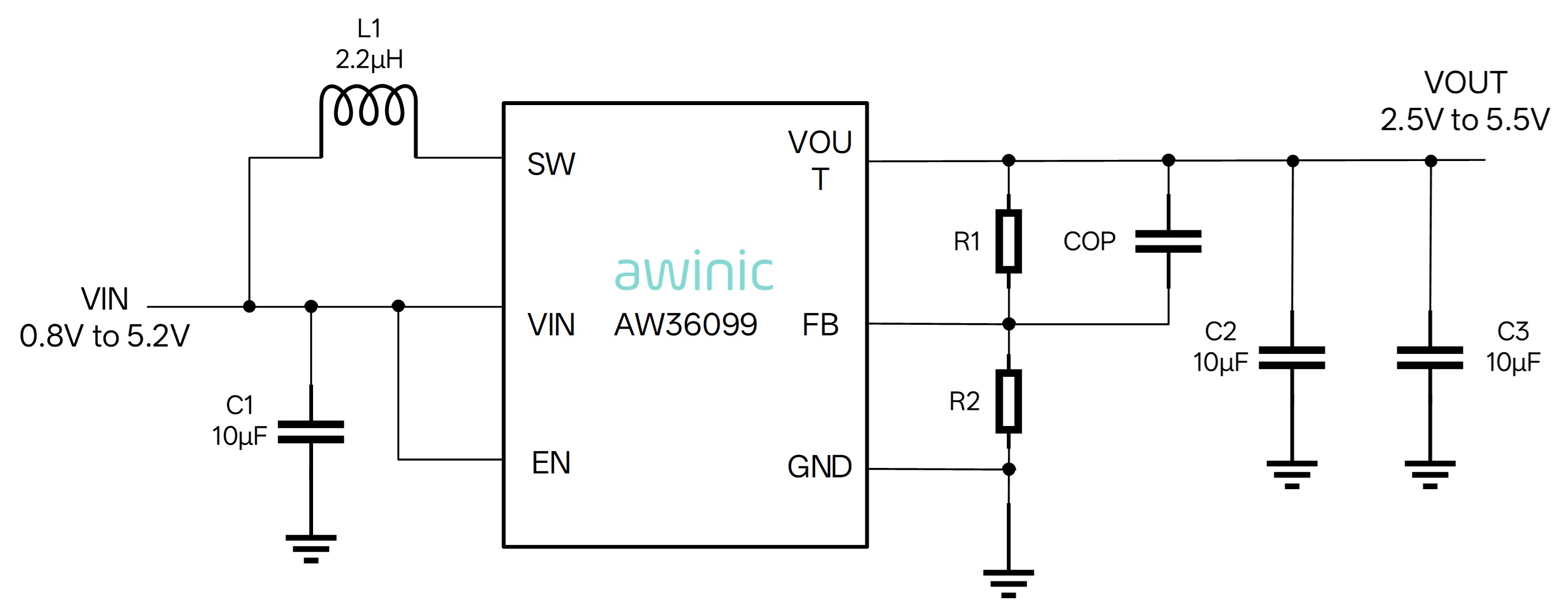

Figure 3 AW36099X application circuit

Low-power, Small-package Load Switch

Specifically designed for portable devices such as CGM, it can disconnect the downstream load during storage/shipping, significantly extending endurance:

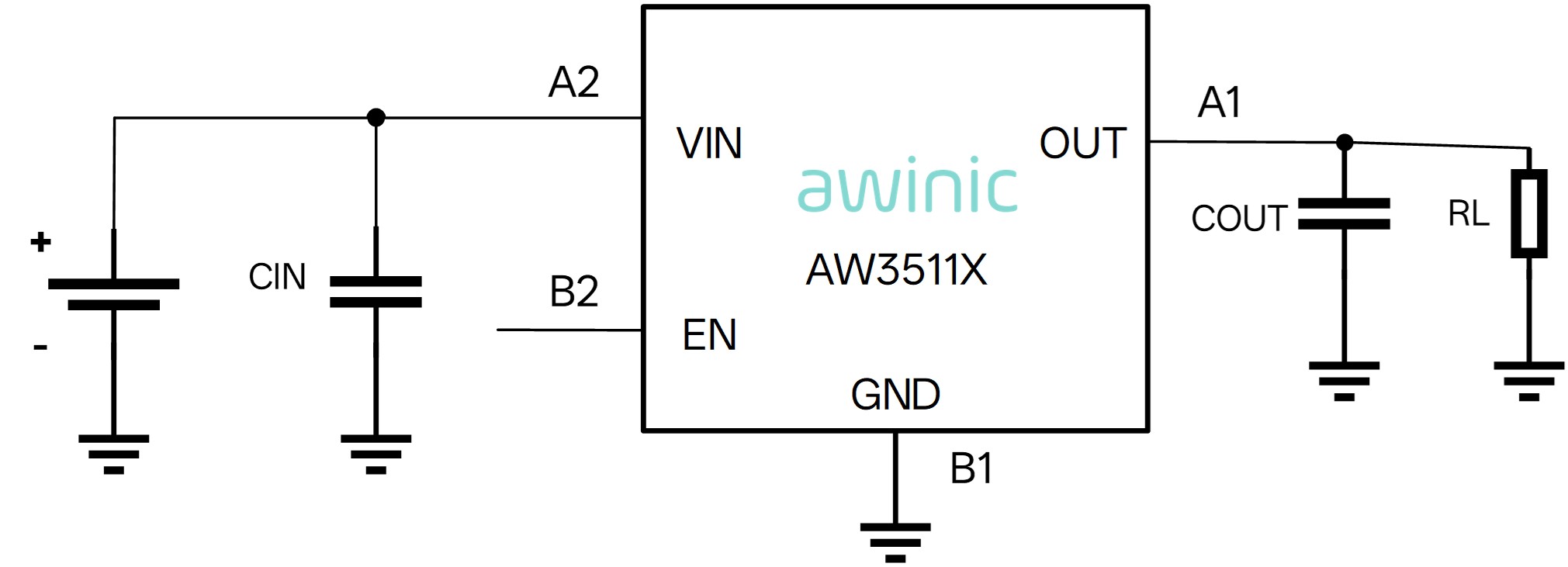

Figure 4 AW3511X application circuit

Breaking the Power Consumption Limit

The AW86501ADC series Hall sensors have successfully overcome the three core industry pain points of "space constraints, battery life anxiety, and environmental interference," providing three key supports from the technology foundation for CGM products to achieve miniaturized design, long shelf-life assurance, and operational stability. Key specifications:

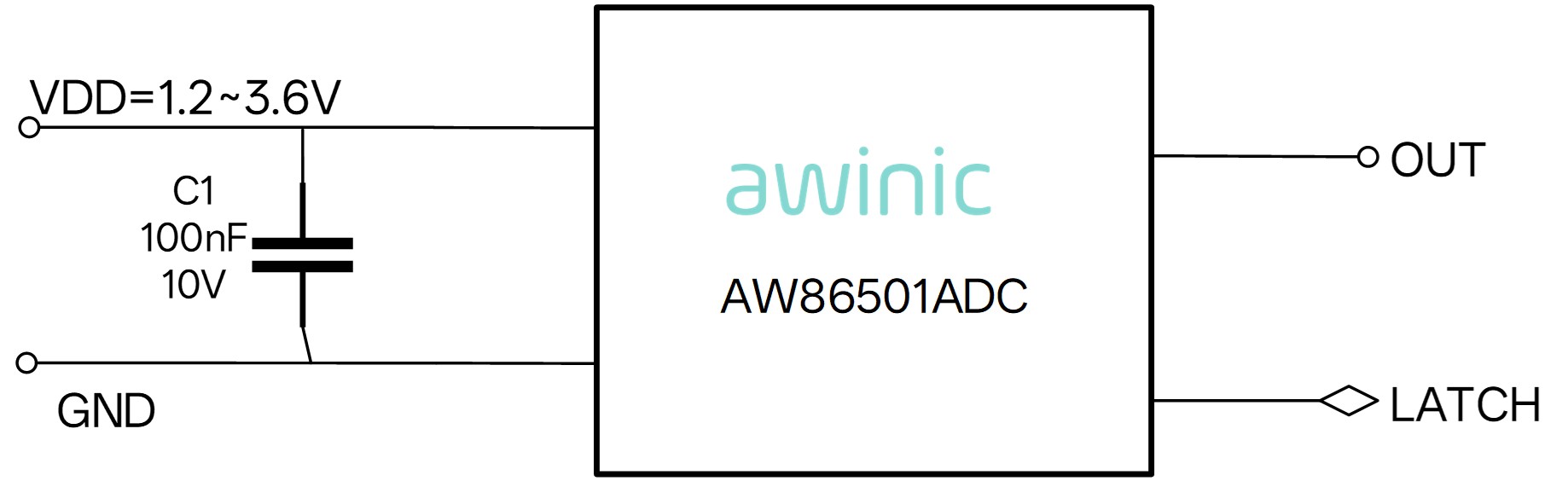

Figure 5 AW86501ADC application circuit

Ultra-low-power Operational Amplifier

AWINIC's small-package, low-power, low-offset operational amplifiers precisely empower the post-stage signal conditioning of glucose sensors, ensuring stable and reliable output of sensor signals. Key parameters are as follows:

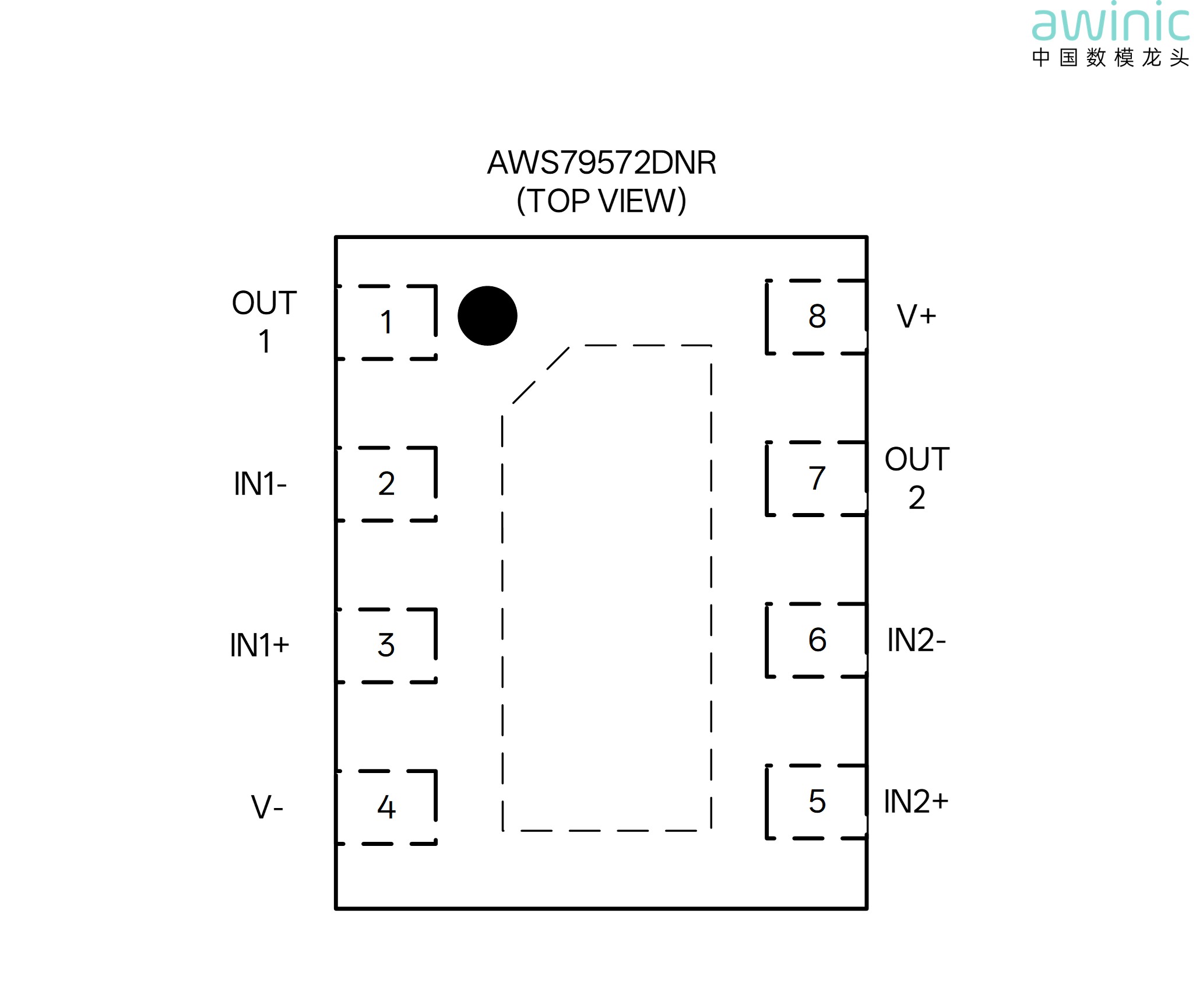

Figure 6 AWS79572DNR package outline drawing

AWINIC CGM Recommended Component Selection Table

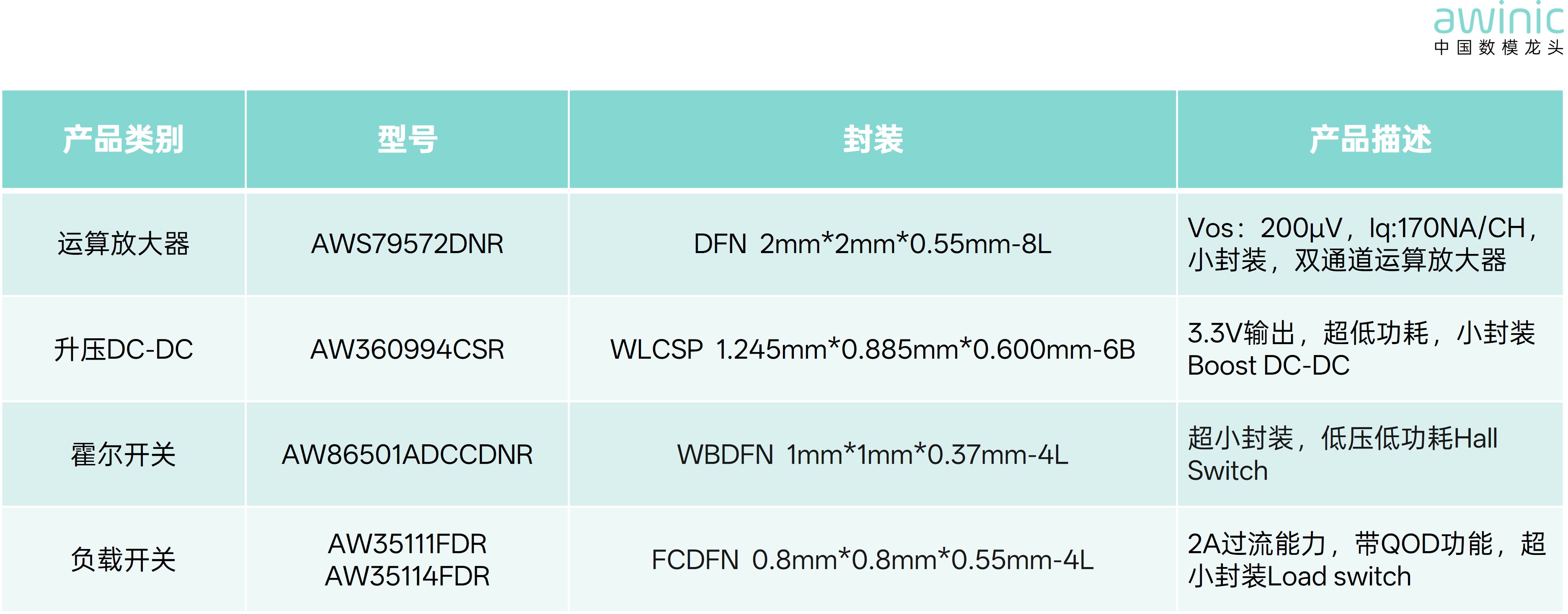

Table 1 AWINIC CGM Recommended Component Selection Table
