As digital offices and mobile productivity become ubiquitous, laptops, tablets, and fast chargers have become daily necessities. The proliferation of the PD3.1 EPR 28V fast charging protocol delivers higher power and faster speeds, but also brings unprecedented challenges to port protection. Transient disturbances such as lightning surges, grid fluctuations, electrostatic discharge, and abnormal plug/unplug events can easily burn interface chips, crash systems, or even damage entire devices. Traditional TVS diodes, affected by a thermal‑electric positive feedback effect, often exhibit voltage “bulging” or “humping” — uneven clamping, insufficient safety margins, and poor long‑term reliability — making it difficult to meet the stringent EMC and lifetime requirements of high‑end equipment.
To address these common industry pain points, Awinic Electronics launches the Plus‑TVS flat‑clamping surge protection TVS — the AW403063TCSR. Featuring an innovative feedback mechanism that breaks through the thermal runaway bottleneck of conventional TVS devices, it achieves ultra‑low dynamic resistance and extremely flat clamping. Under high surge stress, the voltage remains stable without spikes, with ample safety margins. Combining high ESD protection, a compact package, and ultra‑low power consumption, it is fully compatible with PD3.1 port applications in laptops, PCs, tablets, and more, providing next‑generation smart terminals with a more reliable, safer, and longer‑lasting transient protection solution.
I. Product Brief
The AW403063TCSR is a flat‑clamping surge protection TVS designed for PD3.1 EPR28V systems. It features highly compatible and flat clamping voltages, high surge immunity, and an ultra‑small, thin form factor, making it ideal for port protection in laptops, personal computers, tablets, and similar applications.
II. Product Advantages
In traditional discrete TVS devices, after turn‑on, the dynamic resistance Rd increases with temperature (positive temperature coefficient). The increased resistance further raises power dissipation (P = I² × Rd), creating a positive feedback loop.
As surge energy continues to be injected, heat dissipation lags behind heat generation, causing the junction temperature to rise exponentially. This thermal‑electric feedback runs out of control, ultimately resulting in a “hump” (bulge) in the Vclamp curve (see Figure 1).
For example, a traditional 36V clamping TVS paired with a 40V‑rated chip in a 28V PD port application carries extremely high risk: the safety margin is only 10%, surge test pass rates are low, long‑term reliability is poor, and TVS failure can directly damage the chip.

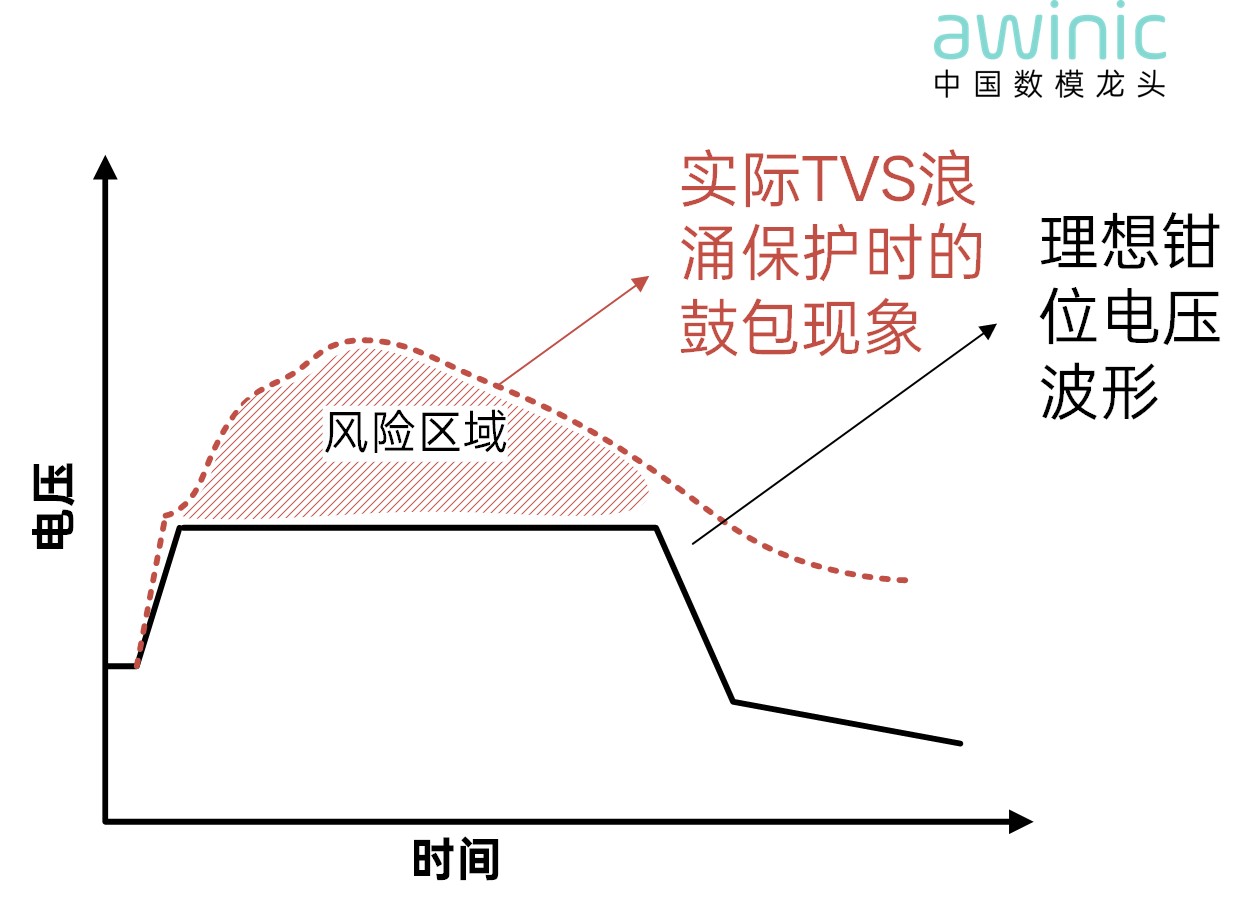

Figure 1: Voltage bulge phenomenon when a traditional TVS triggers surge protection
Awinic’s new AW403063TCSR incorporates a unique feedback mechanism to achieve precise, flat clamping. Under 200V, 8/20µs surge current stress, it firmly holds the system contact voltage below 40V, with a dynamic resistance as low as 5mΩ, easily withstanding high‑power transients from lightning strikes, grid fluctuations, and more.
For industrial signal lines’ common EMC requirements, the device can withstand up to 1kV IEC 61000-4-5 open‑circuit voltage through a 42Ω coupling resistor. It also integrates Level‑4 IEC 61000-4-2 ESD protection, comprehensively blocking both electrostatic “lightning” and surge “tsunamis,” preventing equipment damage caused by transient voltages at the source.

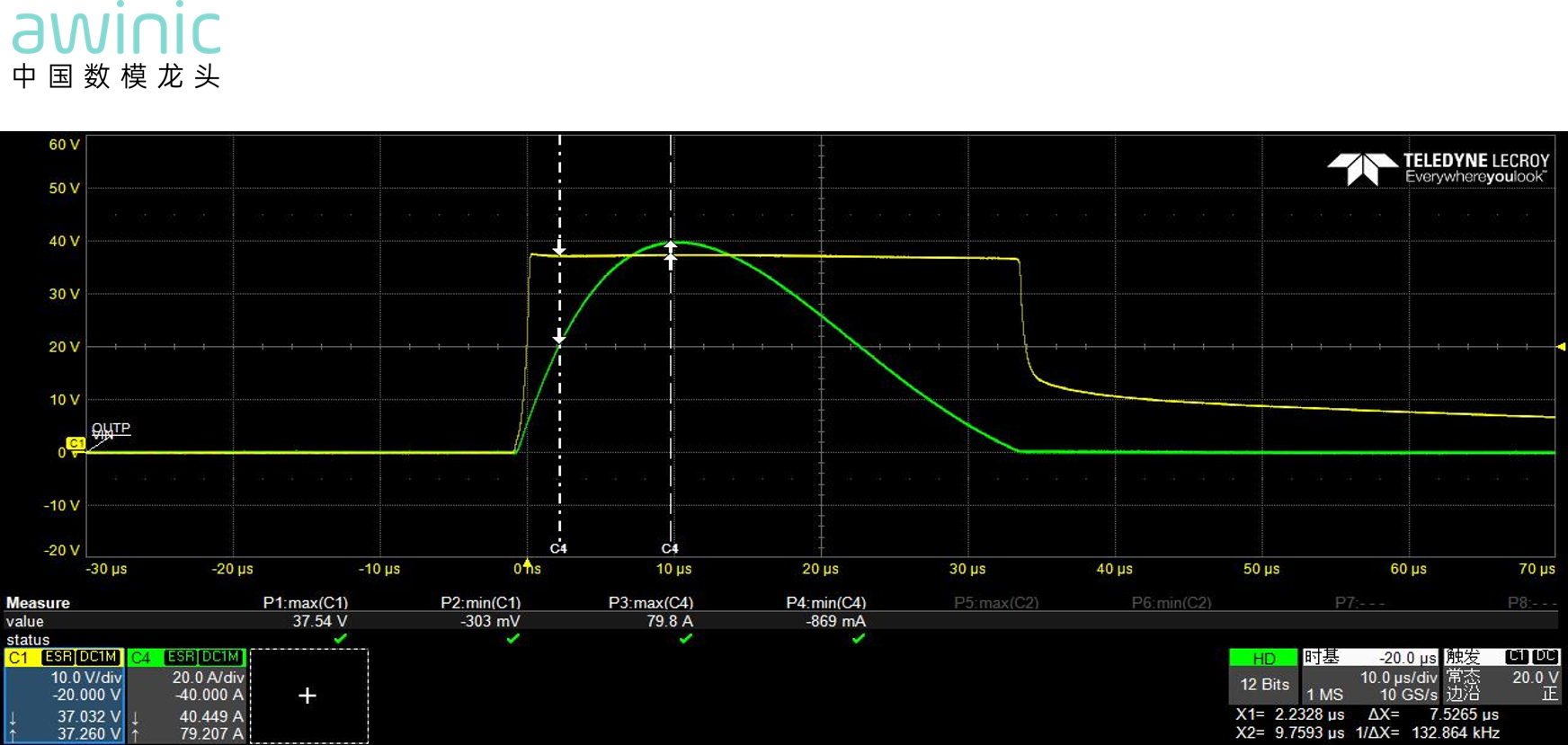

Figure 2: Measured surge current and protection voltage curves
III. Product Features

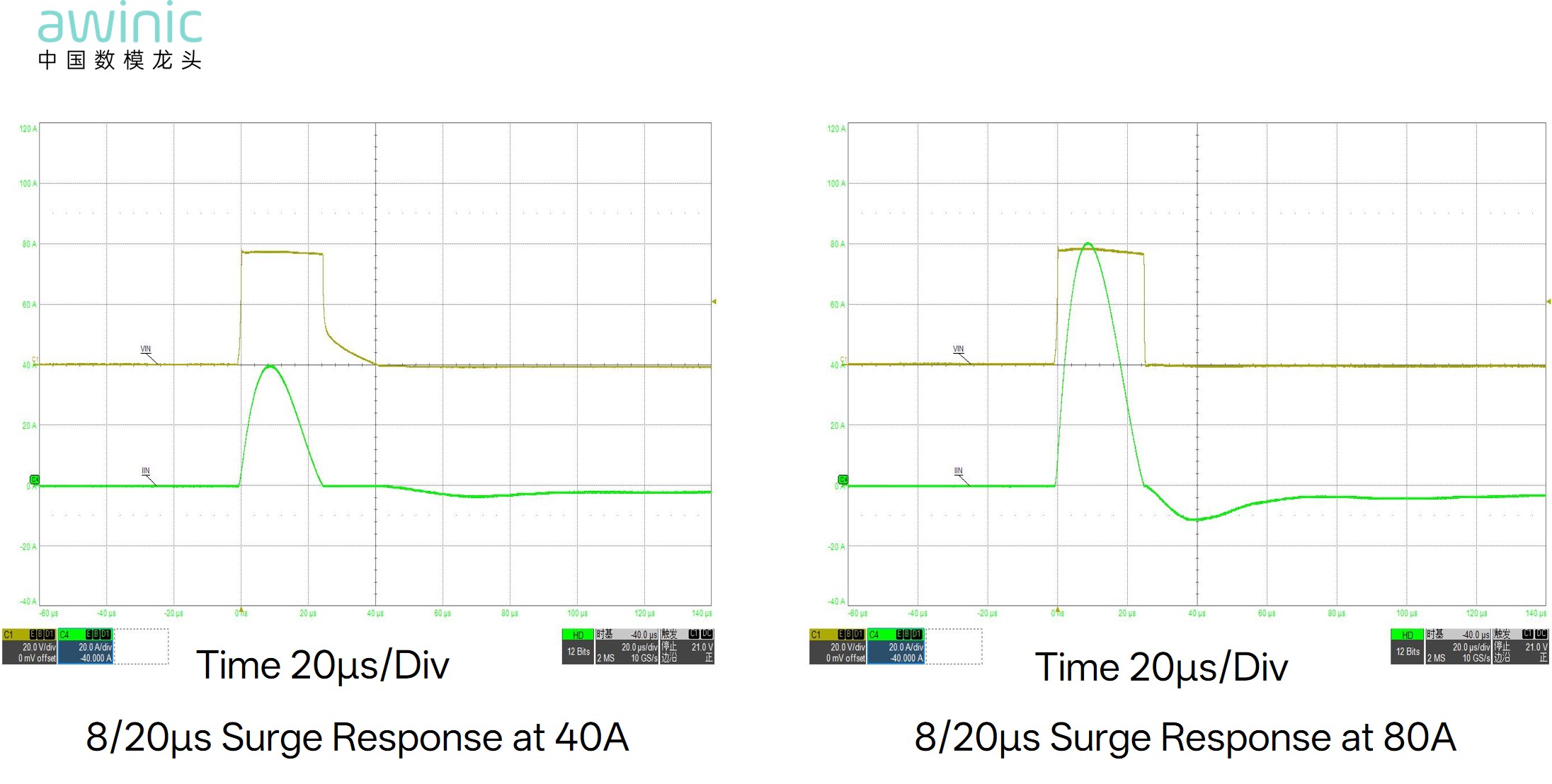

Figure 3: Response clamping curves under different surge currents
IV. Product Specifications

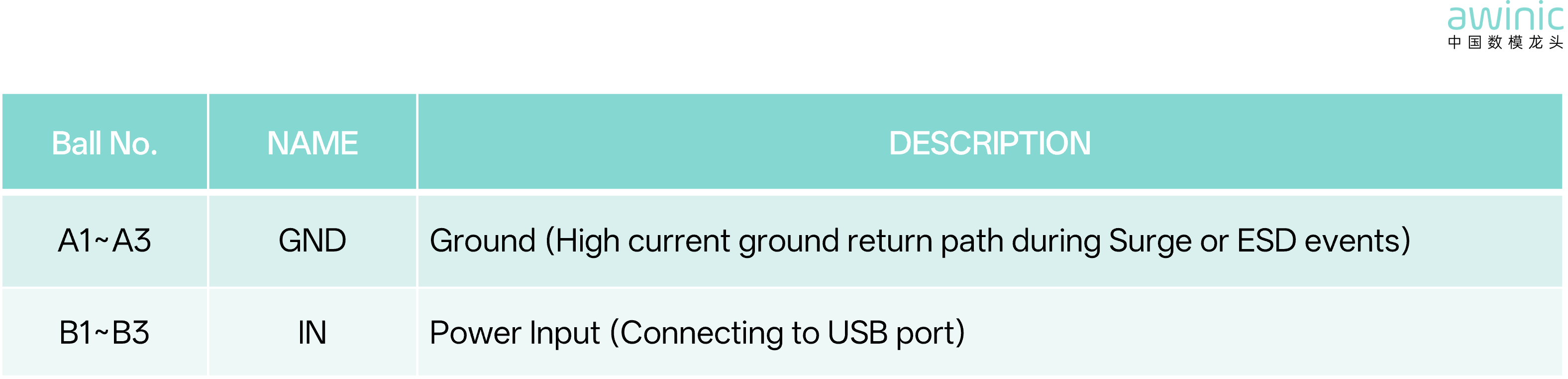

Table 1: Product specification table

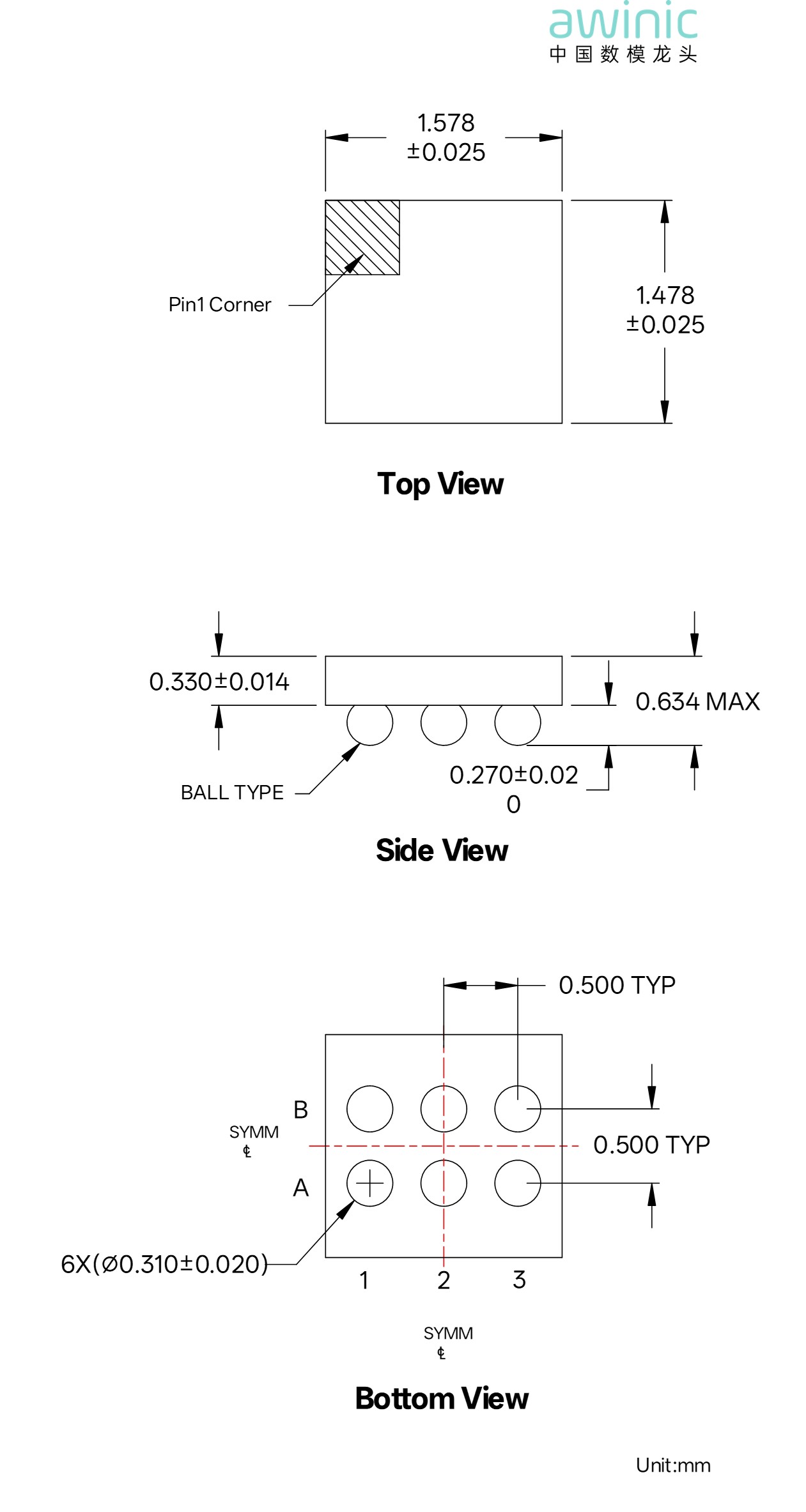

Figure 5: Product specification diagram
V. AW403063TCSR Characteristic Parameter Table

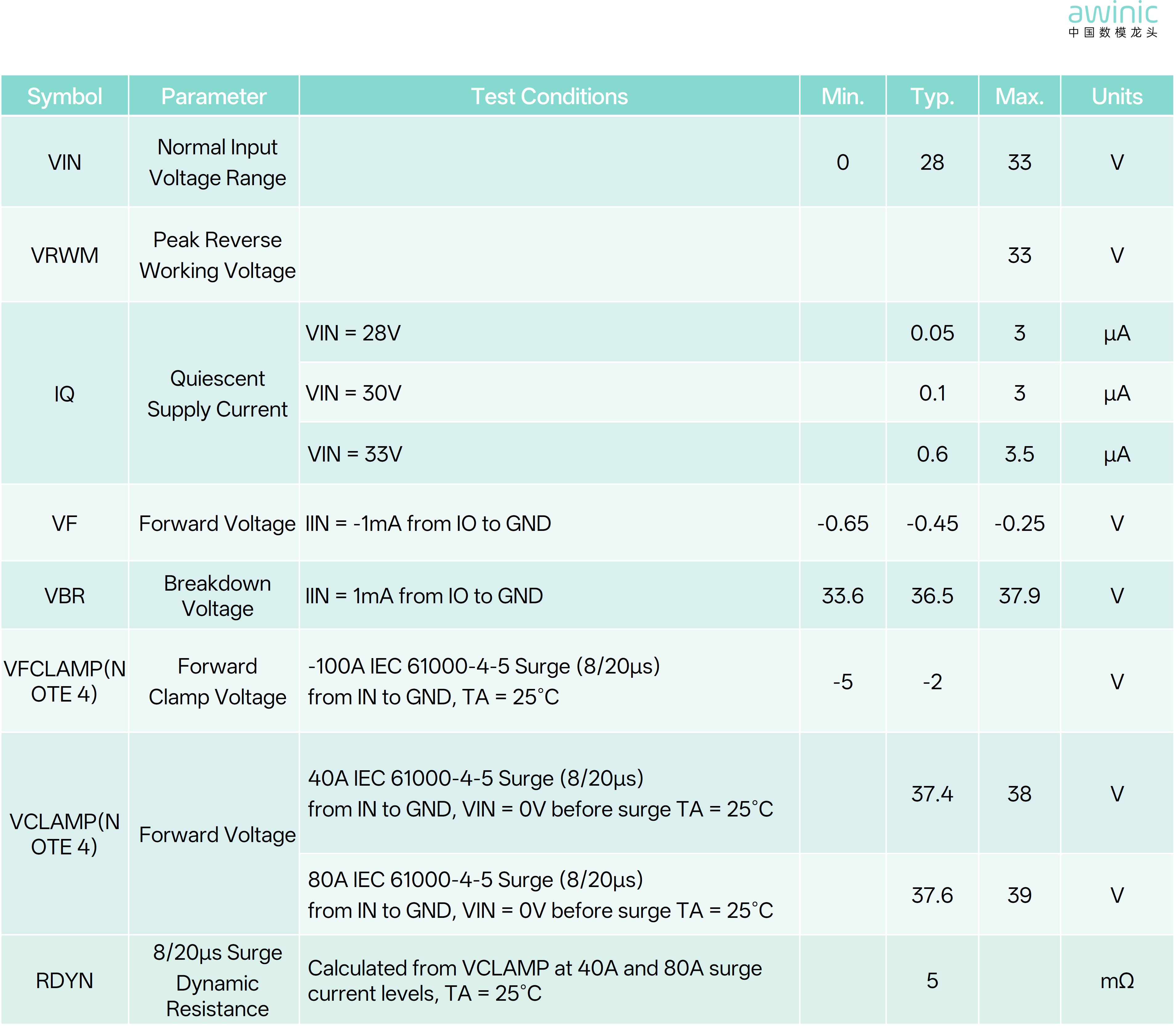

Table 2: AW403063TCSR characteristic parameter table
VI. Example Application Products

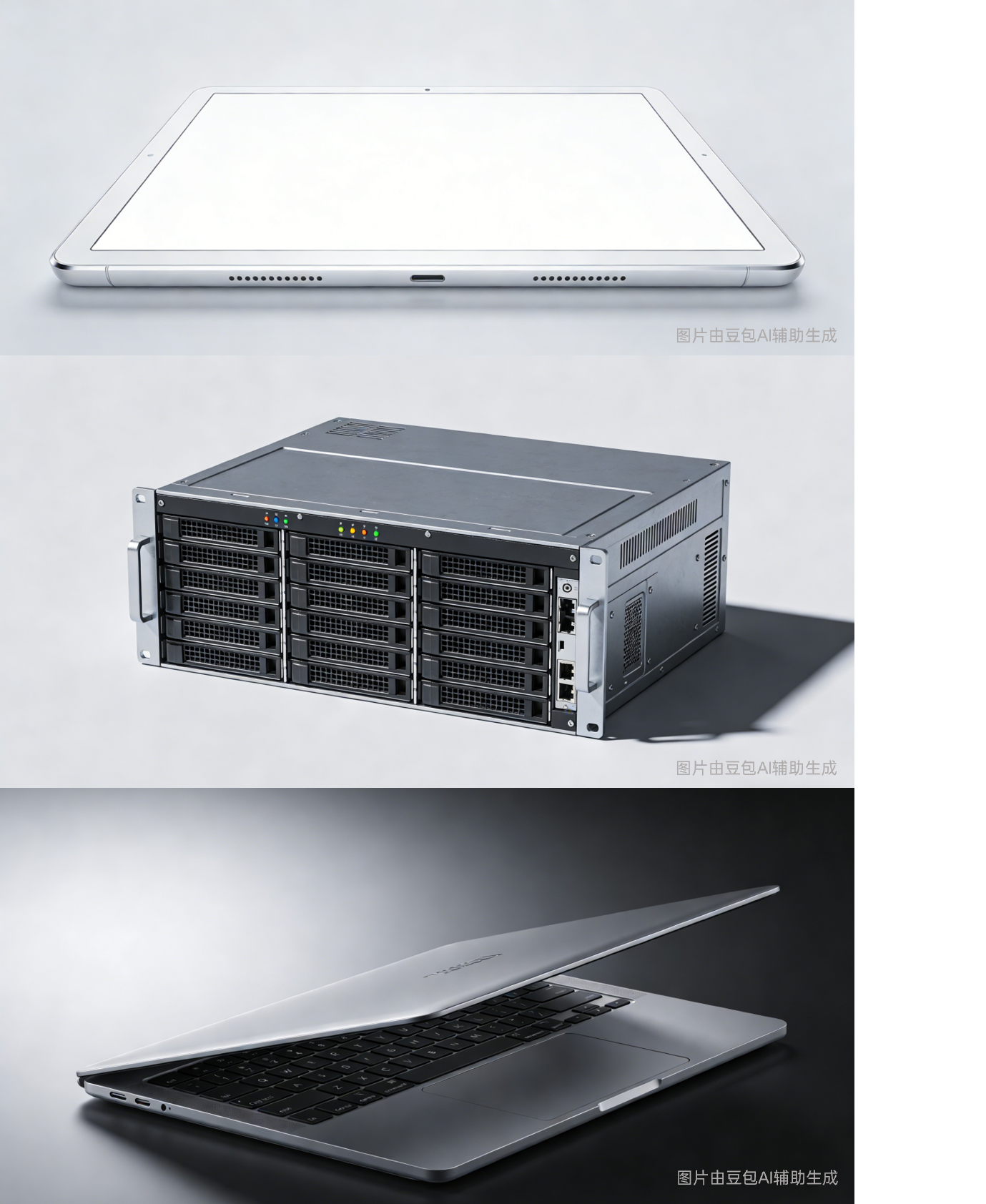

Figure 6: Example application products
From solving the industry pain points of thermal runaway and voltage bulging in traditional TVS devices, to delivering a next‑generation protection solution with extremely flat clamping, ultra‑low dynamic resistance, and high safety margins, Awinic’s AW403063TCSR redefines the PD3.1 port protection standard through technological innovation.
With excellent surge suppression capability, a stable and flat clamping curve, reliable ESD and EMC performance, plus miniaturization and low‑power advantages, the product is perfectly suited for high‑end smart terminals such as notebooks, PCs, and tablets. In high‑speed charging and complex power environments, it builds a robust “protection barrier” for device interfaces.
Looking ahead, Awinic Electronics will continue to deepen its focus on signal and power protection, leveraging more innovative technologies and even more refined products to help mobile smart devices operate more safely, more stably, and longer.
