On a crowded subway during morning rush hour, you put down your phone, pull out a handheld console, and your fingertips touch the familiar cross-shaped D-pad. Instantly, you’re seperated from the noise and fast pace of the carriage. Late at night in bed, after a long day of work, you ignore the endless chores, take out your handheld console, and seek your own source of joy. This seemingly simple experience has long transcended mere entertainment; it has become a spiritual refuge that heals anxiety, offers a place for self, and connects emotions.
Figure 1: Handheld gamer on the morning rush hour subway
Looking back at half a century of handheld console evolution:
Figure 2: Showcase of various handheld gaming console form factors
For handheld gaming console applications, AWINIC offers a range of products in audio, haptics, lighting, and sensing, as shown below:

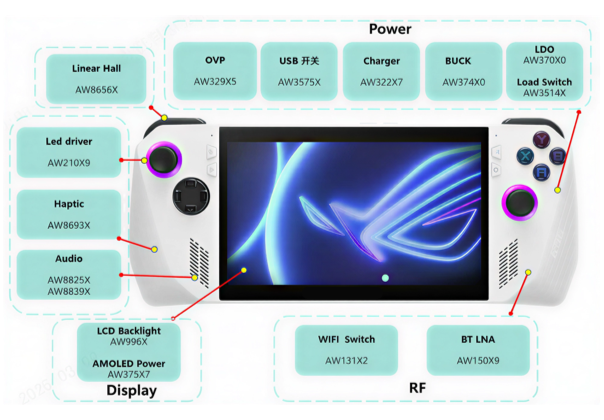

Figure 3: AWINIC application solution block diagram for handheld gaming consoles
I. Game Vibration Feedback: High-Voltage Linear Motor Driver
Figure 4: Typical application circuit diagram for high-voltage motor driver
AWINIC has deeply involved in haptic feedback for many years. Beyond hardware, the awinicTikTap® Leizhenzi 4D gaming algorithm deeply interfaces with game logic, intelligently parsing and utilizing raw vibration data from game protocols, real-time image features, and contextual audio information. Through precise signal parsing and drive tuning, it delivers highly realistic scenario-based vibration feedback. The moment a player presses the fire button, the algorithm rapidly responds and outputs a vibration waveform that closely matches the gun’s recoil. Every shot delivers clear, sharp, and layered tactile feedback, authentically replicating the force and rhythm of gun recoil, greatly enhancing immersion and satisfaction, taking the gaming experience to the next level.
Figure 5: Game
vibration data mode

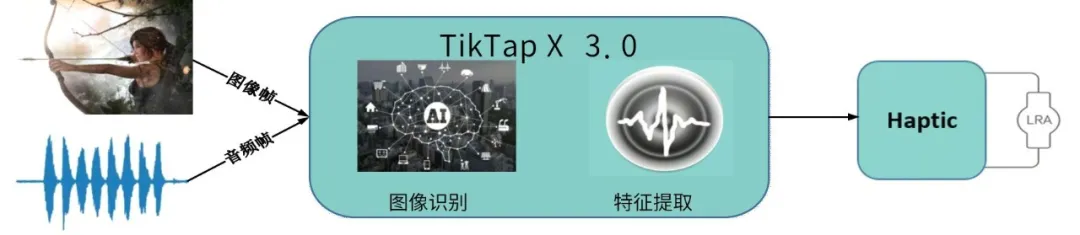

Figure 6: Game image + game sound mode

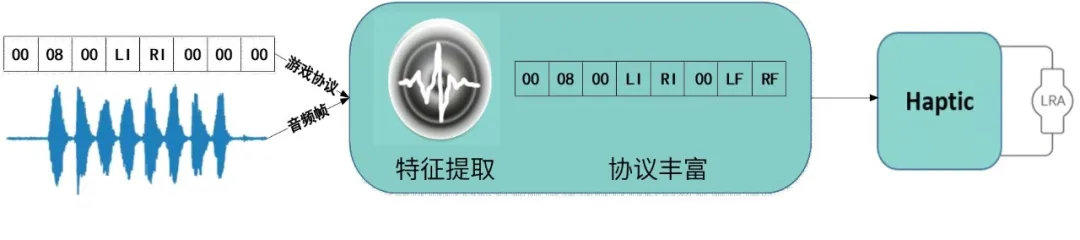

Figure 7: Game audio stream mode

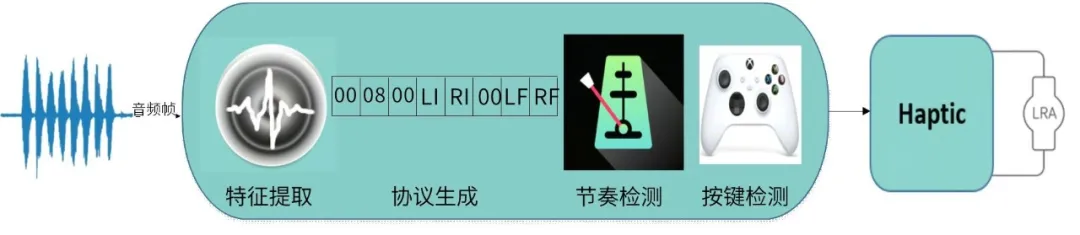

Figure 8: awinicTikTap® Leizhenzi 4D gaming algorithm
II. Trigger Key Travel Sensing: Linear Hall Sensor
Unlike traditional triggers with only “0 or 100%” two-state response, the linear Hall sensor detects every increment of key press travel. For example, in racing games, you can precisely control throttle depth at 30%, 50%, or 80% for smooth cornering and seamless acceleration. In shooting games, you can fine-tune fire rate or scope magnification.
Hall effect sensing is non-contact; there is no physical friction between the magnet and sensor. Millions of presses feel as good as new.
Thanks to direct analog signal sampling, Hall triggers operate without jitter, delivering instantaneous feedback and crisp, responsive action.
With software tuning, you can set your preferred trigger force and feel to find your personal “golden touch.”
Key parameters:
Figure 9: Linear HALL Application Circuit Diagram
III. RGB Ambient Lighting: Breathing LED Driver
Versatile status indications (not limited to the following):
Atmosphere enhancement:
AW210XX/AW200XX: AWINIC’s breathing LED driver products cover 3 to 216 channels, capable of displaying over 16 million color variations and breathing effects, synchronized with game visuals to create a more realistic virtual ambiance. AWINIC provides a one-stop solution including driver ICs and lighting effect algorithm tuning.
Figure 10:
AWINIC rainbow breathing LED effect
Figure 11:
AWINIC brilliant breathing LED effect

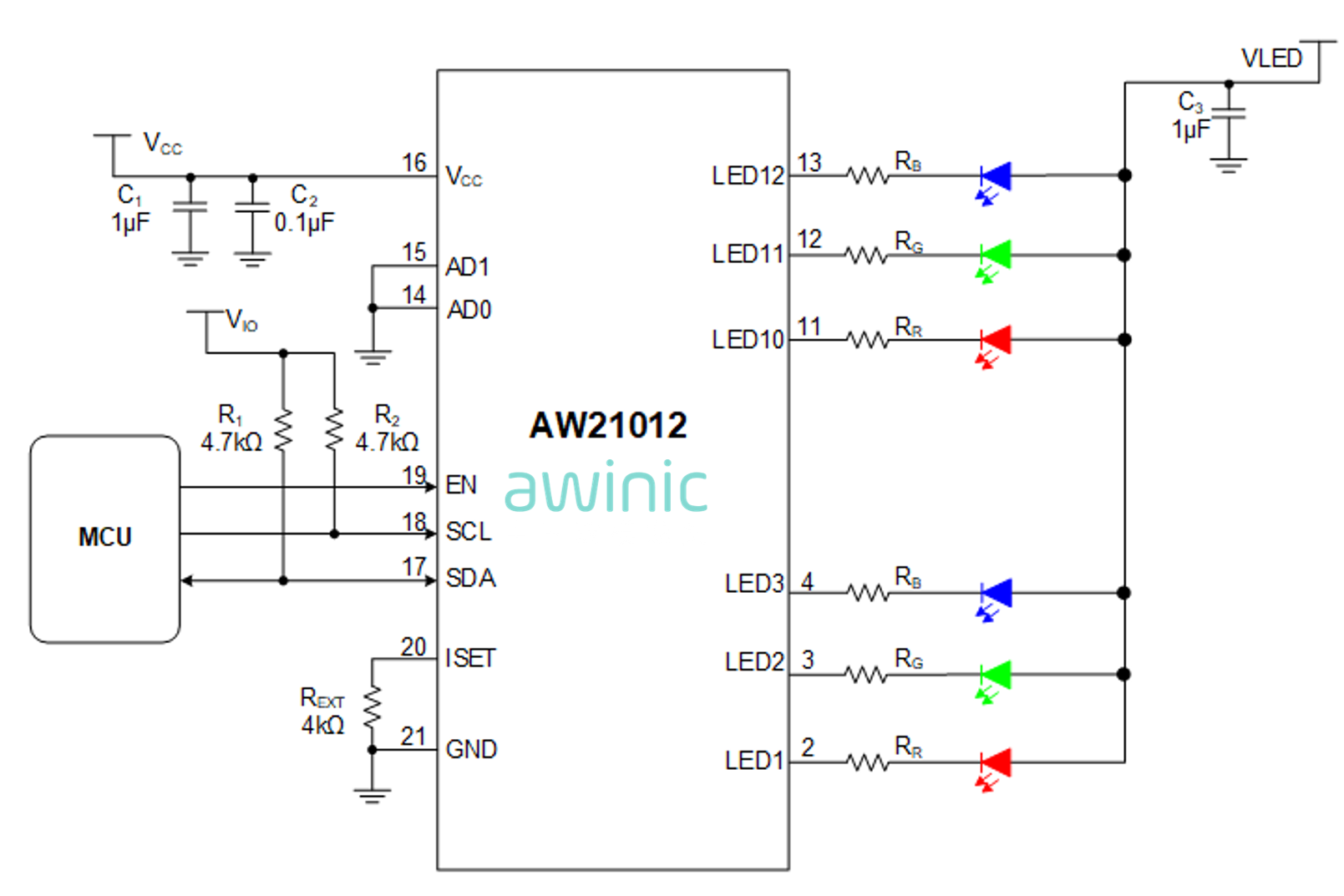

Figure 12: Breathing LED driver application circuit
IV. Speaker Audio: Audio Amplifier + Audio Algorithm
AW883X9: Digital audio amplifier with integrated 12V BOOST. It delivers instantaneous high power for deeper bass and clearer treble. Built-in DSP3.0 runs AWINIC’s self-developed awinicSKTune® V7 audio effects and protection algorithms, supporting 2–8 PA cascading. Stereo layout enables accurate positional audio – footsteps approaching from afar, cars whizzing by – with clear and precise sound imaging. The sound is natural, full, and impactful, with perfect audio-video sync for an even more stunning gaming experience.
Figure 13: AW883X9 audio amplifier application circuit
Audio Algorithm: awinicSKTune® (Shenxian) algorithm, including basic sound effects and protection, plus signature sound effects and protection algorithms.

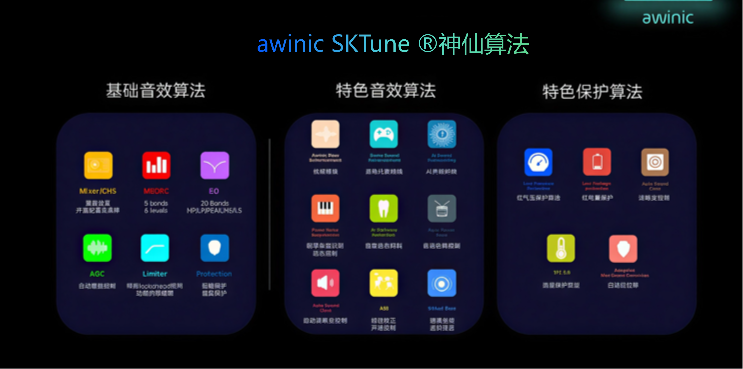

Figure 14: awinicSKTune® (Shenxian) algorithm
Since the first-generation self-developed awinicSKTune® algorithm in 2017, it has now evolved to the eighth generation. The basic algorithm module includes 16 EQ bands and 8-band DRC for excellent sound quality, while amplitude and temperature protection ensure the speaker performs at its peak without coil unwinding or wire breakage, delivering long-lasting durability, safety, and reliability.
The signature algorithm module includes sound field widening, AI sibilance suppression, AI surround sound field, AI vocal enhancement, adaptive speaker protection, psychoacoustic low power, smart volume control, bass boost 3.0, and nonlinear distortion compensation protection. This elevates sound quality even further, with high separation of audio elements and immersive audiovisual enjoyment right at your ears, making the device irresistible.
Component Selection Table
As a leading analog and mixed-signal IC company, AWINIC provides a one-stop chip-level solution covering core interaction, efficient power delivery, and precise sensing, helping handheld gaming consoles achieve high integration, low power consumption, and a powerful user experience. Below is AWINIC’s recommended selection guide for handheld gaming consoles:

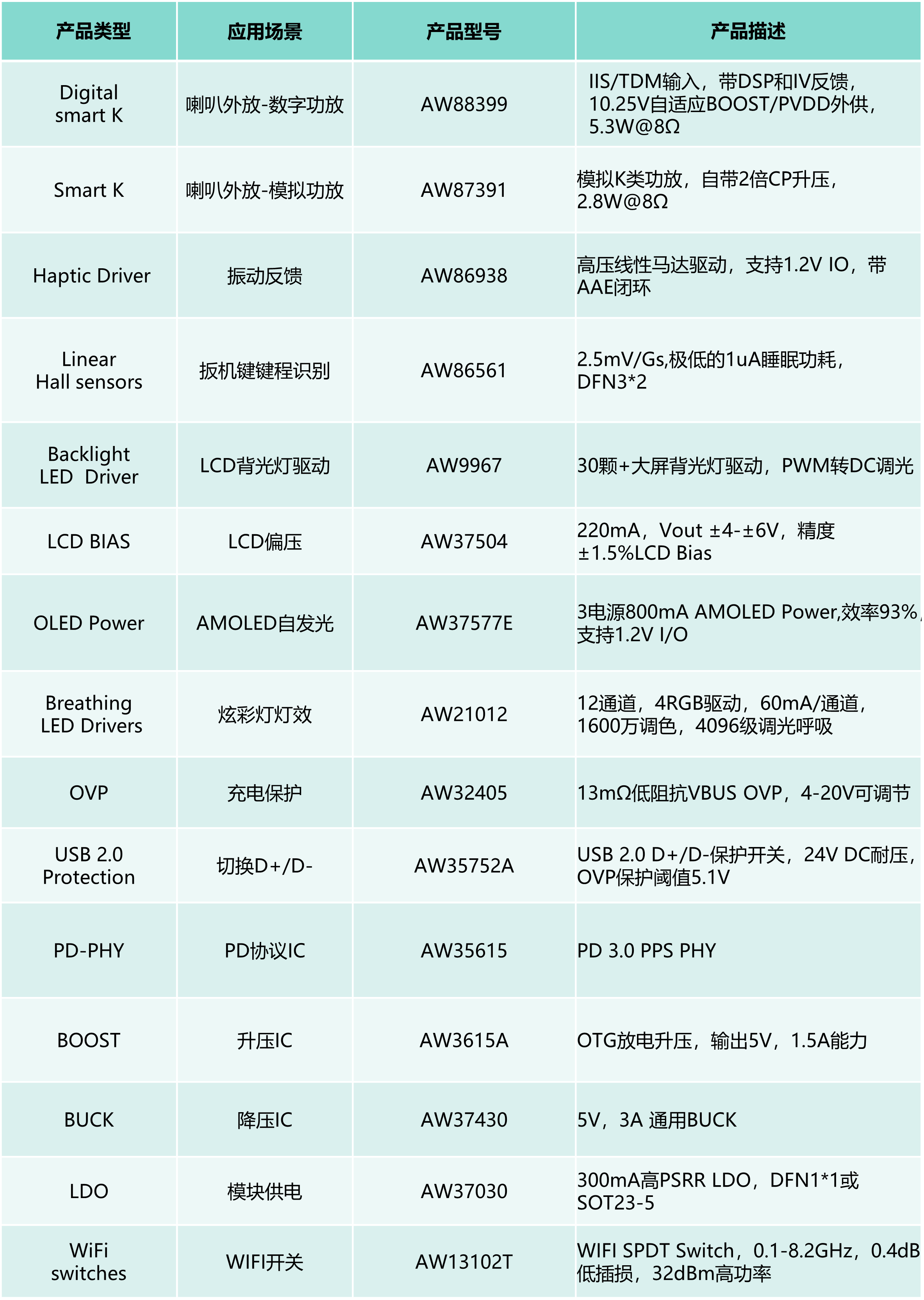

Table 1: AWINIC recommended selection guide for handheld gaming consoles
