With the trend toward larger smart TV screens, immersive home theater experiences, and smarter service robots, mid-to-high power audio solutions in the 20–30W range have become a critical differentiator for end products seeking a competitive edge. Whether it's large-screen TVs and soundbars in the living room, smart speakers for home and commercial use, or devices such as service robots and smart display terminals—all demand greater power output stability, high-fidelity sound quality, energy efficiency, and integrated design from their audio amplifiers.
With years of deep expertise in the high-performance audio amplifiers, Awinic Technology officially launches the AW85805STSR and AW85807TSR, two digital-input, high-efficiency Class D audio amplifiers designed for mid-to-high power applications. Precisely targeting the mainstream 20–30W mid-to-high power audio market, this series leverages Awinic's full-chain, self-developed audio technology foundation. It integrates a next-generation high-efficiency amplifier architecture, a high-performance Feitian™ DSP, and the SKTune® Magic Algorithm to deliver a tiered product portfolio that comprehensively covers core applications such as smart TVs, home speakers, service robots, and commercial smart terminals. This brings a powerful, stable, and high-fidelity immersive audio experience to end products.
Optimized Energy Efficiency, Setting a Benchmark for High Power with Low Power Consumption
AW85807TSR
Deeply optimized for mid-to-high power scenarios, this model focuses on industry-leading low power consumption within its power class. Equipped with intelligent power tracking technology, it achieves over 15% efficiency improvement at low-to-medium volumes, delivering both robust full-power output and ultra-low standby power consumption—perfectly addressing key energy efficiency pain points. The built-in high-performance Feitian™ DSP integrates a range of Awinic's signature audio algorithms, including sound field surround, AI noise suppression, and adaptive power optimization, resulting in purer sound quality, fuller bass, and a more immersive soundstage for a comprehensively enhanced listening experience.
Key Specifications:
Feitian™ DSP + SKTune® Magic Algorithm: A Powerful Combination
The AW85807TSR integrates Awinic's Feitian™ DSP and is enhanced with the SKTune® Magic Audio Algorithm. In addition to supporting classic DRC and EQ functions, it incorporates Awinic's signature sound effects algorithms such as sound field surround, bass boost, and intelligent noise suppression, delivering delicate, dynamic sound quality and an expansive, immersive sound field. It also features an adaptive power optimization algorithm and intelligent protection mechanisms for low temperature and low voltage, enhancing battery life and overall system stability while improving the listening experience.
Power Tracking Control – A High-Efficiency Enabler: Dynamically adjusts the PVDD voltage supplied by the external DC-DC converter, maintaining sufficient voltage headroom. This provides ample dynamic range for the audio signal, prevents signal clipping and distortion, effectively improves overall audio system efficiency, and achieves over 20% total power optimization.

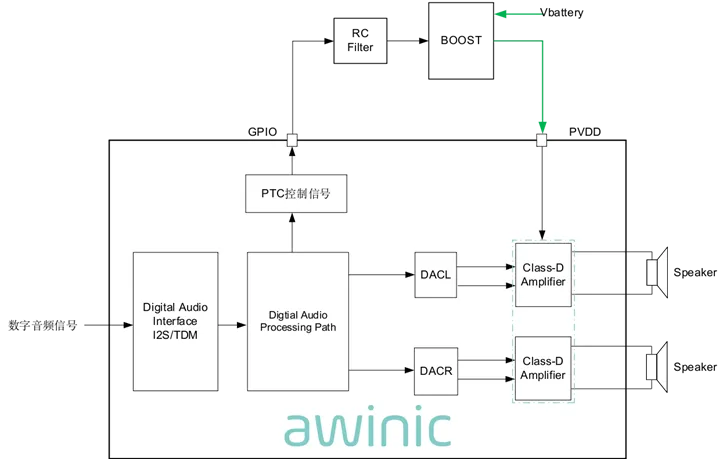

Figure 1 AW85807TSR PTC Function Block Diagram
Figure 2 AW85807TSR Application Schematic Diagram
Applicable Scenarios: Portable Speakers, Embodied Robots, Bluetooth Speakers, Service Robots, Smart Home & IoT Devices, etc.
Optimized for 12–20V Systems
Precisely Tailored for Mainstream Mid-to-High Power Scenarios
AW85805STSR
Deeply customized and optimized for industry-standard 12–20V power supply systems, this model delivers optimal efficiency, distortion control, and power output stability within this voltage range.
Key Specifications:
High Efficiency, Low Power Consumption, Significantly Reduced Heat Generation:
Powerful Audio Performance, Uncompromising Sound Quality
Featured DEE Intelligent Algorithm Module:
Figure 3 AW85805STSR Schematic Diagram
Applicable Scenarios: Smart TVs, Smart Speakers, Desktop Speakers, Soundbars, Commercial Smart Display Terminals, Smart Home & IoT Devices, etc.
With this new product launch, Awinic has further refined its product portfolio in the mid-to-high power audio segment, offering a full range of domestically developed, tiered audio solutions with independent control for various terminal devices. Moving forward, Awinic will continue to deepen its expertise in the high-performance analog and mixed-signal IC field, pushing performance boundaries through self-developed technologies and helping drive continuous upgrades to the terminal audio experience.
