【Application Solution】Smart Headlights That Communicate: Awinic's Breakthrough Solution Enhances Automotive Lighting Interaction

2026-03-15

In the wave of automotive intelligence, headlights are no longer just illumination tools; they have evolved into a dynamic visual language that embodies interaction and personality. With the maturation of smart lighting language technology, headlights have been endowed with social attributes, expanding light-based interaction from inside the vehicle to the outside. This propels the industry into a new era of boundless interaction and cross-domain integration.

In typical applications of smart lighting language, the most common is the interactive rear LED matrix display. However, to achieve a high-resolution interactive rear screen, traditional solutions usually require deploying 2000 to 5000 LED beads, relying on as many as 42 to 105 driver chips. This not only complicates the design and keeps costs high but also poses challenges for hardware layout and reliability.

To solve this industry pain point, Awinic, a leader in analog and mixed-signal ICs, has launched the AW20216EQPY-Q1, a leading 216-channel matrix LED driver chip for the automotive market.

Core Advantages

In common taillight screen applications using 2000 to 5000 LED beads, this solution requires only 10 to 25 driver chips. This effectively saves hardware costs, reduces the complexity of the PCB, and provides a cost-effective, highly reliable domestic chip solution for smart automotive lighting. The solution boasts the following core advantages:

· Ultra-High Integration:
Drives 18*12 LEDs, supporting 216 single-color LEDs or 72 RGB LEDs.

· Extreme Visual Performance:
16.78 million color adjustment, 256-level PWM dimming.

· Efficient Communication Interfaces:
10MHz SPI communication interface and 1MHz I²C communication interface to meet refresh rate requirements.

· Professional-Grade Anti-Interference Design:
Advanced ghosting elimination technology
Efficient EMI suppression design & Professional-grade squeal suppression technology
PWM phase-shift function
Spread spectrum function

· Full-Scenario Automotive Reliability:
Supply Voltage Range: 2.7V ~ 5.5V
Operating Temperature: -40°C ~ +125°C
AEC-Q100 Grade 1

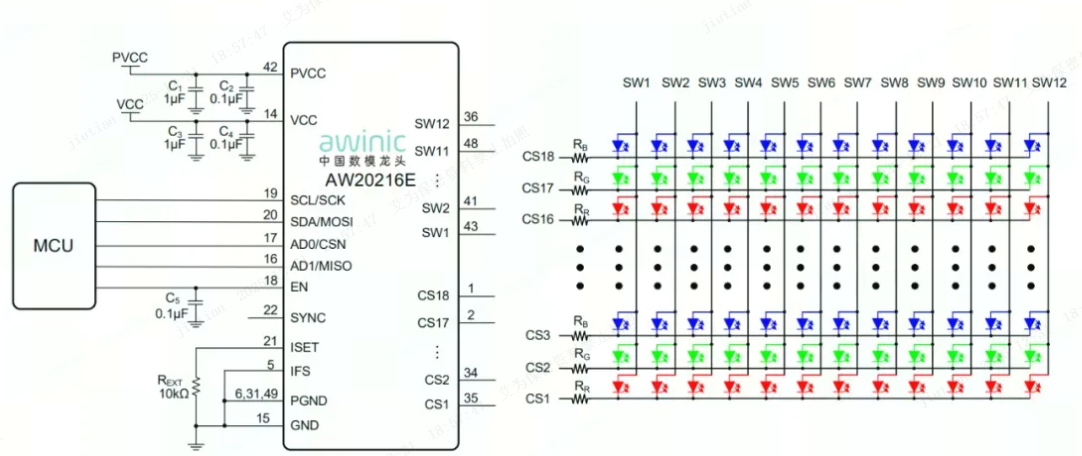

Figure 1: AW20216EQPY-Q1 Typical Block Diagram

Figure 2: Awinic Taillight Application Solution

Empowering Diverse Lighting Scenarios

With its high channel count, independent dimming, and excellent consistency, the AW20216EQPY-Q1 empowers a variety of high-end lighting scenarios:

· Interactive Rear Display: Enables rich light language expressions such as dynamic text, icons, emojis, and progress bars, supporting visual interaction with other vehicles and pedestrians.

· Exclusive Starlight Roof Effect: Eliminates the need for zone-based lighting or forming LED strings. The 216-channel LED or 72-channel RGB dimming allows each "star" to twinkle independently, creating an immersive starlight visual effect.

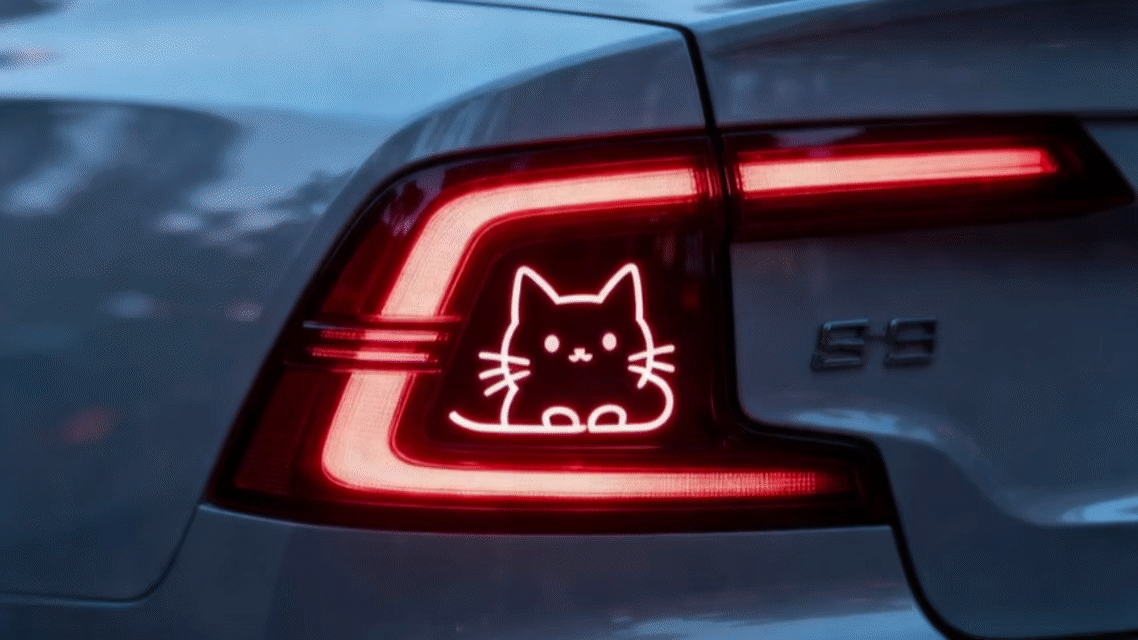

Figure 3: Various Application Scenarios

Introduction to Awinic's Breathing Light Driver Products

As a leader in analog and mixed-signal ICs, Awinic Electronics boasts a comprehensive family of breathing light driver chips. It possesses a complete solution capability in the automotive lighting field, comprehensively covering the design requirements of diverse scenarios and providing flexible and reliable technical support for various applications.

If you need to delve deeper into the detailed parameters and suitable scenarios for other models, please refer to the product selection guide below for accurate model selection guidance.

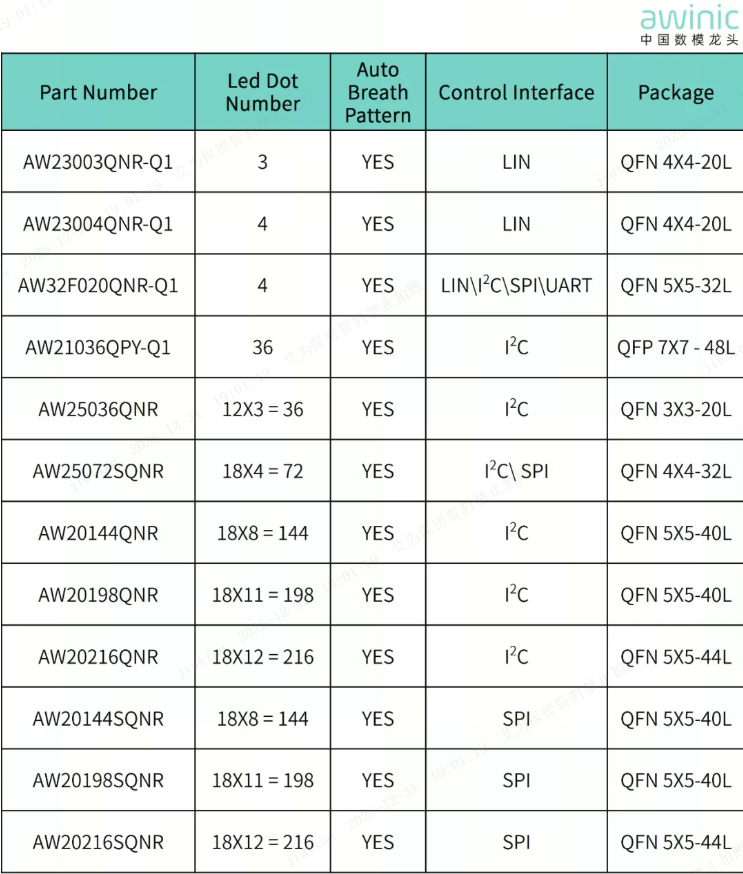

Table 4: Awinic Breathing Light Driver Selection Guide
