Recently, vivo officially launched a new product in its Y-series – the vivo Y300, marketed as a device with "Super Strong External Sound and Ultra-Long Battery Life". Equipped with a new-generation super speaker and a three-directional sound system, the vivo Y300 delivers an exceptional external audio experience. It also features a 6500mAh ultra-thin "Blue Ocean" battery with 5-year durability, ensuring ultra-long battery life. In terms of design, the vivo Y300 perfectly combines fashion and sophistication: its smooth body lines and exquisitely crafted contours fit comfortably in the palm, offering a pleasant grip. Available in a variety of colors, each with its own charm – trendy hues highlight personality, while classic shades exude calmness. Whether navigating a bustling city or immersing in quiet nature, the vivo Y300 is an excellent embodiment of your fashion taste. Additionally, it comes with the all-new OriginOS 5 and "hero-level" quality assurance, ensuring a reliable and long-lasting user experience. As a powerful and impressive new device, the vivo Y300 stands out as a "transcendental leader of national smartphones" that satisfies users.
Figure 1: vivo Y300 Product Image
The vivo Y300 is equipped with vivo’s loudest speaker to date, boasting a maximum volume increase of up to 600%, a peak sound pressure level of 91.7dB, and a sound transmission distance of up to 100 meters at maximum volume. Its shocking and loud external sound allows users to hear clearly and enjoyably in various scenarios. Based on the large sound-generating unit, vivo has also designed a 4cc professional acoustic cavity – the large cavity enables more sufficient air vibration, endowing the Y300’s external sound with super "explosive power". Meanwhile, the peak power of the speaker array reaches 4.5W, approximately 3 times that of the previous-generation Y200.
Figure 2: Introduction to vivo Y300’s Speaker
Since its launch, the vivo Y300 has been widely favored by major tech bloggers and consumers, especially for its outstanding external audio performance – it not only delivers loud volume but also excellent sound quality. We compared the external audio performance of the vivo Y300 and iPhone 15 Pro Max from both subjective and objective perspectives, and the results show that the vivo Y300 has a clear advantage in both aspects.

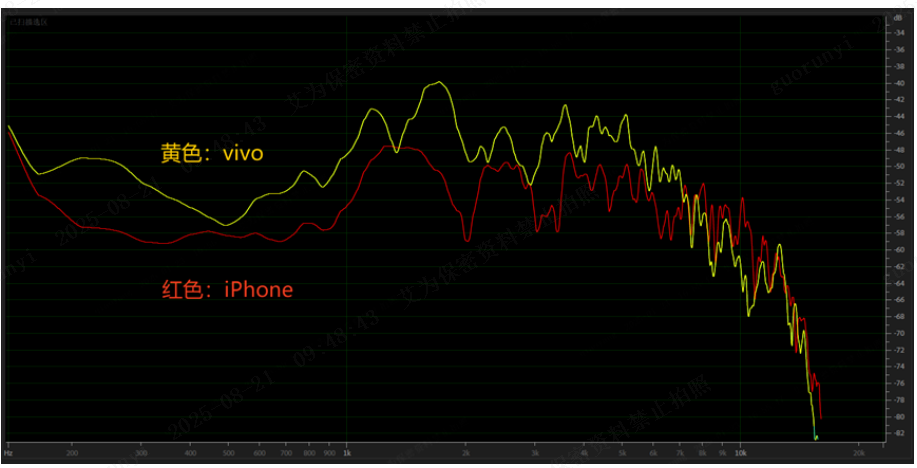

Figure 3: Comparison of External Frequency Response Curves Between vivo Y300 and iPhone 15 Pro Max – Mid-to-low frequency loudness increased by up to 8dB

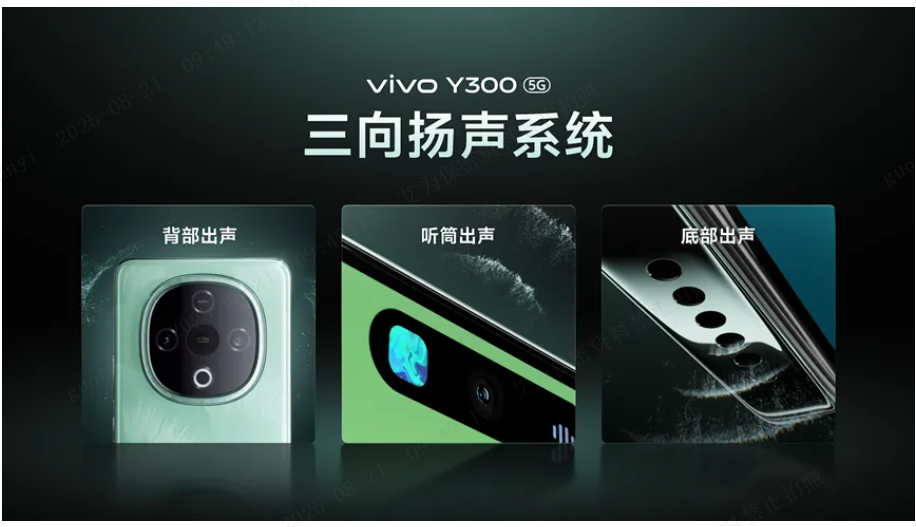

Figure 4: Diagram of vivo Y300’s Three-Directional Sound System
The vivo Y300’s stunning external audio performance would not be possible without the support of Awinic’s "Divine Combination" solution.
To achieve three-dimensional sound quality and sound effects, the vivo Y300 adopts Awinic’s audio solution – a "Divine Combination" of dual Smart K chips paired with Awinic’s "Divine Algorithm", awinic SKTune®. Based on Awinic’s unique analysis and understanding of the sound effects of electronic devices and the characteristics of speakers, the Smart K series audio power amplifier chips can be combined with awinic SKTune, Awinic’s fully independently developed "Divine Algorithm". This comprehensive "end-to-end audio hardware-software solution" effectively enhances sound quality; the integration of hardware and software makes the world of sound more vivid.
The latest Awinic Smart K series audio power amplifier equipped in the vivo Y300 incorporates Awinic’s proprietary Multi-Level AGC audio algorithm. This algorithm automatically adjusts the output power according to the intensity of the input signal, ensuring pure and lossless sound quality at any volume. In addition, its I2C control offers broad compatibility and flexible configuration options, enabling it to easily adapt to various speaker load environments and seamlessly integrate into various consumer electronic devices, demonstrating strong adaptability and convenience. Most notably, the latest Smart K series features Awinic’s new-generation patented technology – Smart Adaption, which delivers ultra-high working efficiency and extremely low standby power consumption, contributing to the ultra-long battery life of the vivo Y300.
Batteries in portable products have also undergone new changes – silicon-anode batteries have begun to be widely used in portable devices. Compared with traditional lithium-ion batteries, silicon-anode batteries have higher energy density and a wider power supply voltage range, which brings certain challenges and new requirements for audio power amplifiers. The latest Awinic Smart K series audio power amplifier is specifically designed for the low-voltage application of silicon-anode batteries, supporting lower operating voltages to extend the product’s battery life.
Key Performance Improvements of the Latest Awinic Smart K Series:
-
Improvement 1: Low-Power Technology
Static power consumption optimized by 20%.
-
Improvement 2: Dynamic Adaptive Boost
Efficiency increased by 8-10 percentage points at 0.5-0.7W.
-
Improvement 3: Low-Noise Solution
Effectively reduces overall noise to 25uV and RCV noise to 6.5uV; earpiece noise is on par with digital power amplifiers.
-
Improvements 4 & 5: Broad Compatibility
Supports 1.2V & 1.8V IO; compatible with 2.5V low operating voltage, matching future platform and battery specifications.
Figure 5: Typical Application Block Diagram
Overview of Features of Awinic’s New-Generation Smart K Series:
-
Operating Voltage: 2.5V ~ 5.5V
-
Control Method: I2C
-
Output Power: 4.75W (at VDD = 4.2V)
-
Quiescent Current: 5mA (at VDD = 3.6V)
-
Efficiency: 87% (at 0.5W)
-
Noise Floor: SPK (25uV @ 18dB), REC (6.5uV @ 0dB)
-
Power Supply Rejection Ratio (PSRR): 85dB

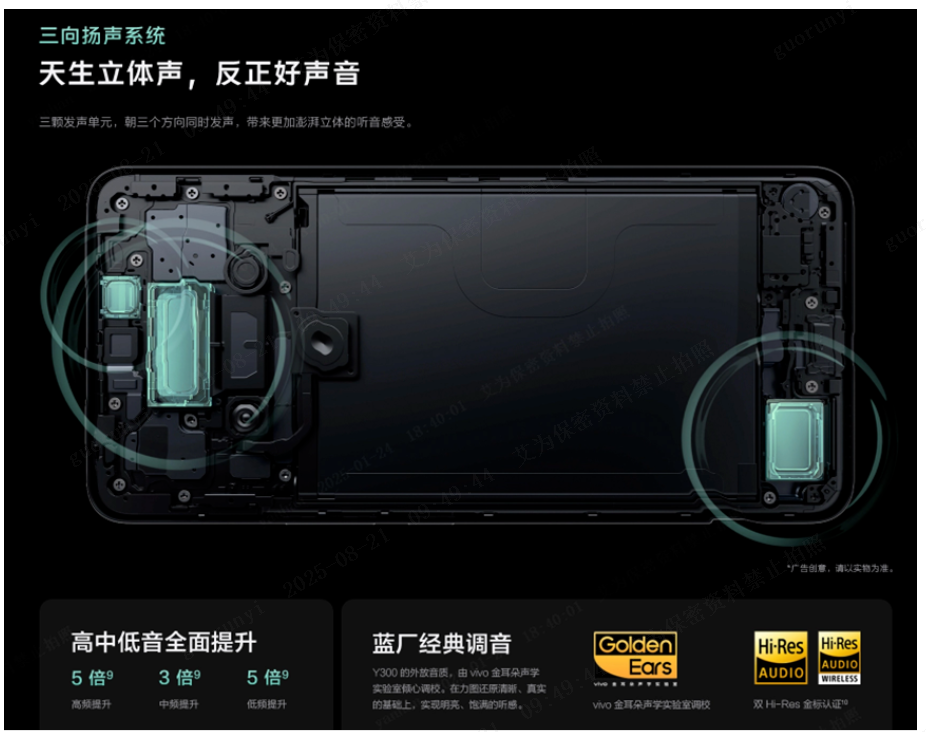

Figure 6: Introduction to vivo Y300’s Three-Directional Sound System
In terms of sound effect algorithms, the vivo Y300 is also equipped with Awinic’s latest 7th-generation "Divine Algorithm", awinic SKTune® V7. It delivers an ultimate acoustic experience for users across scenarios such as surround sound, sound field widening, bass dynamic enhancement, and game sound effect enhancement. For speaker protection, Awinic provides the latest protection algorithms with unique features, including low-voltage protection, low-pressure protection, and Non-IV temperature protection. These algorithms accurately identify the speaker’s status, maximize the release of the speaker’s performance, and further enhance audio performance.

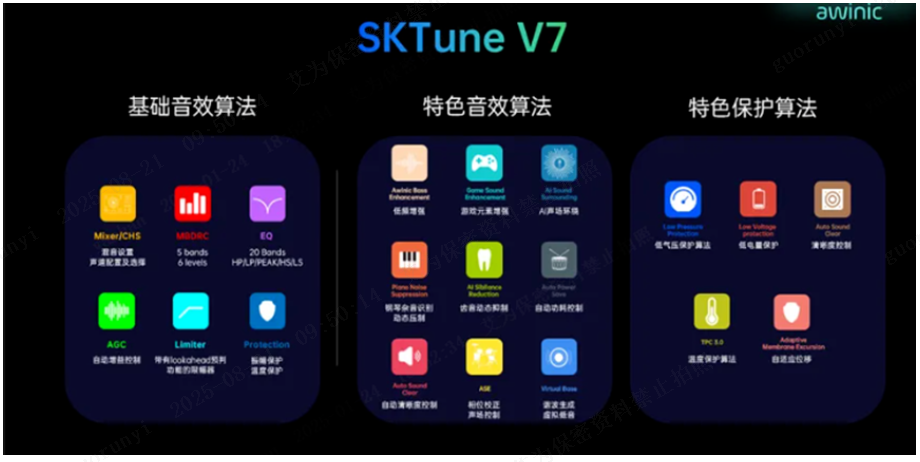

Figure 7: "Divine Algorithm" awinic SKTune® V7
From Version 1 to Version 7, the "Divine Algorithm" awinic SKTune® has always been developed based on customer needs. With meticulous refinement and continuous breakthroughs in technical bottlenecks, it covers basic sound effect algorithms, advanced sound effect algorithms, hardware protection mechanisms, and specialized protection algorithms – bringing high-end auditory enjoyment to hundreds of millions of smartphone users.
Figure 8: Overview of Awinic Smart PA Features
Awinic LightSpeech® Series – Awinic Flash Driver Empowers the vivo Y300’s Superb Imaging Capabilities
The vivo Y300 is equipped with a 50MP ultra-clear main camera on the rear. Combined with the natural color soft light ring and super night scene algorithm, it captures clear and detailed photos whether in bright daylight or dim nights, achieving accurate focusing and lossless details in various complex scenarios. It also excels in selfies: it handles strong sunlight during the day with ease, and at night, the super night scene mode ensures stunning night portraits even in dark environments.

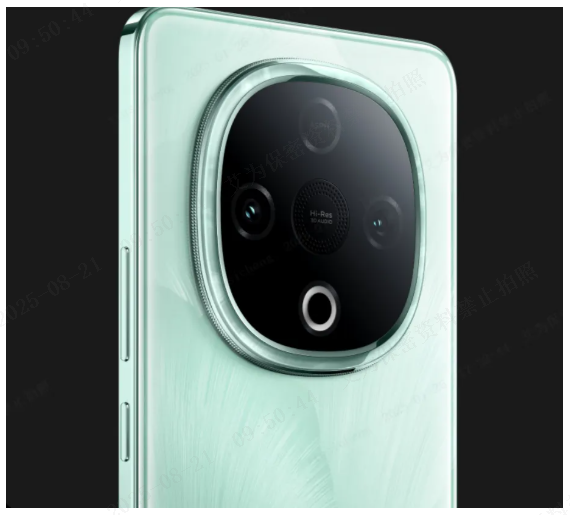

Figure 9: Diagram of vivo Y300’s Rear 50MP Camera
Awinic LightSpeech® Series – Awinic Flash Driver Empowers the vivo Y300’s Superb Imaging Capabilities. To achieve excellent shooting results – performing well in both backlight and low-light conditions – in addition to a powerful image sensor (Sensor) and advanced algorithms, a "perfect supporting role" is essential: the flash. It is with the support of the flash that better light and shadow effects are achieved, allowing the device to "illuminate your beauty" even in pitch-black nights.
Overview of Features of Awinic Flash Driver:
-
Single-channel 1.5A high-current, high-precision LED flash driver
-
Slim package, small board space occupation
-
Supports 256-level brightness adjustment
-
Maximum single-channel TORCH current: 375mA
-
Supports 1.2V/1.8V IO interface levels
-
IVFM mechanism for real-time input voltage detection and flash driver current optimization
Figure 10: Typical Application Diagram
Figure 11: Awinic’s "Store"
To meet various application scenarios, Awinic’s product line is committed to building an IC supermarket – Awinic’s "Store" – making it easy for customers to select products that perfectly meet their needs.
Some images in this article are sourced from the Internet, and their copyright belongs to the original authors. In case of copyright issues, please contact the background of the "Awinic Home" WeChat official account to negotiate relevant matters.
