In the current era where the wave of intelligence is sweeping the globe, electronic devices are undergoing a dual revolution in functional integration and energy efficiency. As mobile and wearable devices accelerate their evolution towards miniaturization and lightweight design, coupled with the stringent requirements of AI technology for computing power and energy efficiency, the market has put forward nearly extreme challenges to the space occupancy and power consumption control capabilities of electronic components. The demand for miniaturized, high-performance electronic components is also growing day by day. Traditional Hall sensors, due to their package size and energy consumption level, are difficult to meet the ultimate needs of emerging terminals for miniaturized design and long-lasting battery life.
As a leading domestic digital-analog enterprise, Awinic Electronics has successfully developed a new generation of "Hyper-Hall" series Hall sensors based on the "circuit design technology" and "process and packaging technology" honed in the field of mobile devices and consumer electronics over 17 years. Facing the industry's ultimate demand for "smaller, more power-saving, and more reliable", Awinic's "Hyper-Hall" series, with an ultra-small Hall package size of 0.8×0.8mm and ultra-low power consumption of 0.8μA, redefines the rules of the track. It provides the underlying support of "double freedom in space and battery life" for products such as AR smart glasses, foldable phones, smart rings, and medical CGM, promoting consumers into the era of "seamless" experience.
Picture 1 Comparison of Package Area

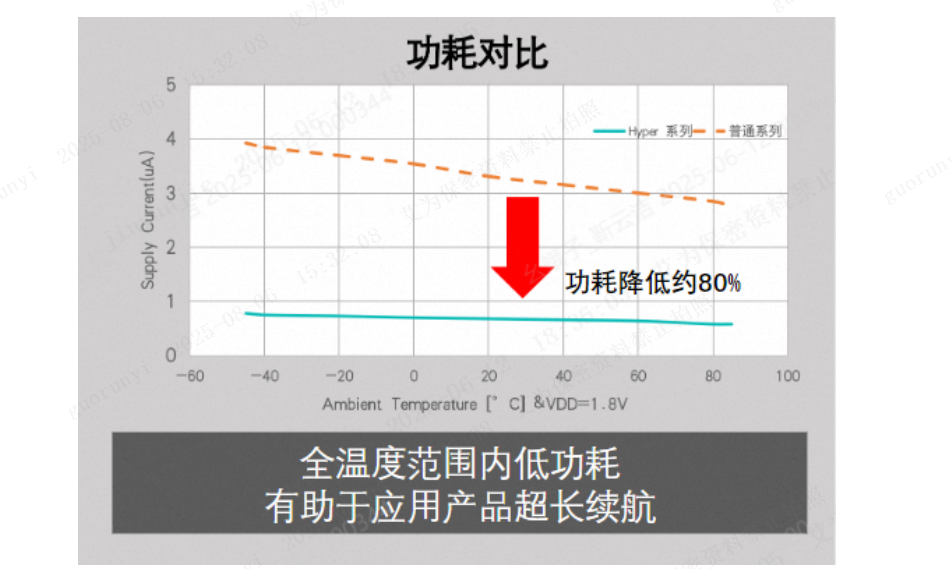

Picture 2 Comparison of Power Consumption
The first member of the "Hyper-Hall" series adopts a small FCDFN package size (0.8mm×0.8mm). Compared with products with ordinary WBDFN package size (1.1mm×1.4mm), the product's mounting area is reduced to 40% of the original (from 1.54mm² to 0.64mm²), optimizing more space for high-density PCB layouts and helping customers achieve more compact circuit designs and larger battery space. In addition, through the breakthrough of ultra-low power consumption architecture, the "Hyper-Hall" series has an operating power consumption of less than 0.8uA, which is 20% of the power consumption of traditional products (reduced from 4μA to 0.8μA), achieving efficient operation and contributing to the ultra-long battery life of applied products.

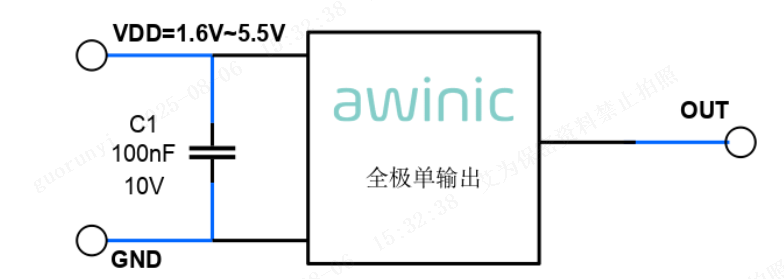

Picture 3 Application Diagram of Omnipolar Single Output

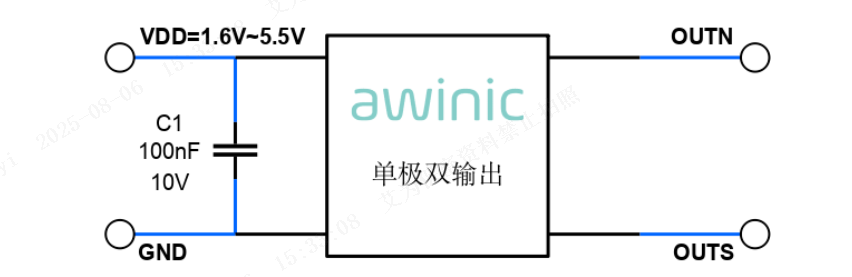

Picture 4 Application Diagram of Unipolar Dual Output
Core Features of "Hyper-Hall" Series
Operating voltage range:
-
AW8651X-FDR series: 1.6~5.5V (mass production)
-
AW8650X-FDR series: 1.1~3.6V (to be released in Q3)
Ultra-low power consumption:
-
AW8651X-FDR series: 0.8uA
-
AW8650X-FDR series: 0.1uA
Detection magnetic field threshold range:
Output type:
-
Push-pull output
-
Open-drain output
Package type:
Picture 5 Application Examples
Awinic will continue to deepen its efforts in the design and research of miniaturized packaged, ultra-low power consumption, and high-reliability magnetic products. Through technological innovation and process optimization, it will provide more competitive solutions for application scenarios such as consumer electronics and industrial internet, effectively helping terminal products achieve energy conservation, consumption reduction, and miniaturization upgrades, and continuously injecting innovative momentum into the development of the industry.
