AWS90001STR

Low-power Low-voltage and Rail-to-Rail Operational Amplifier

产品手册：

在线预览 - AWS90001STR - 产品手册

参考价格

1-99￥1.54
100-249￥1.26
250-499￥1.02
500-999￥0.80
1000+￥0.62

产品详细信息

参数

Channel	1
Power Supply (Min) (V)	1.8
Power Supply (Max) (V)	5.5
Vos@25℃ (Max) (mV)	1.6
Vos TC (Typ) (µV/℃)	1
GBW (Typ) (MHz)	1
Slew rate (Typ) (V/us)	2
Iq per channel (Typ) (mA)	0.066
Vn @ 1 kHz (Typ) (nV/rtHz)	30
CMRR (Typ) (dB)	103
Rail-to-rail	in,out
Temperature	-40℃~125℃
IB (Typ) (pA)	1
Package	SOT23-5L

封装 | 引脚 | 尺寸

SOT353-5L

特性

Wide Supply Voltage Range:1.8V ~ 5.5V Low Input Offset Voltage: ±0.4mV Slew Rate: 2V/μs Low Input Bias Current: 1pA Low Broadband Noise: 28nV/√Hz Low Quiescent Current: 66μA Rail-to-Rail Input and Output Bandwidth: 1MHz Small Package for Low-Cost Applications Sink and Source Current Capability: 38mA

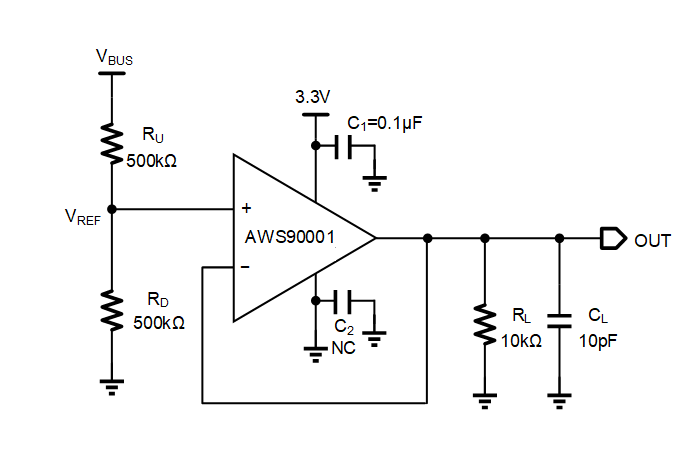

说明

The AWS90001 is a high precision, micro-power, low-voltage (1.8V to 5.5V) operational amplifier with rail-to-rail input and output swing capabilities, which makes it ideal to general-purpose applications. This op amp features very good AC performance with a gain-bandwidth product of 1MHz, slew rate of 2V/μs and low input voltage noise of 5.2μVpp, while drawing 66μA (typical) of quiescent current. It has an input common-mode voltage range that extends to each supply rail, and its outputs swing to within 60mV of the supply rails with a 2kΩ load.

The AWS90001 provides an appropriate solution for space-constrained applications such as battery powered IoT devices, wearable electronics, and personal electronics where minimum PCB footprint is required. The AWS90001 is available in green small-size WBDFN 0.8mm × 0.8mm × 0.37mm - 5L package and WBSOT 23 - 5L package.

技术文档

类型	项目标题	语言	日期
产品设计指南	AWS90001 硬件设计指南	中文	2025-08-07
产品设计指南	AWS90001 Hardware Design Guide	英文	2026-04-15
产品手册	DS_AWS90001_EN_V2.4	英文	2026-04-16
技术帖	【技术帖】开年第一篇干货——鼎鼎大名的运算放大器，你知多少？	中文	2023-01-30
