AWS74LVC1G07STR

Buffer With Open-drain Output

产品手册：

在线预览 - AWS74LVC1G07STR - 产品手册

参考价格

1-99￥2.69
100-249￥2.21
250-499￥1.78
500-999￥1.40
1000+￥1.08

产品详细信息

参数

Logic Type	Noninverting Buffers
Power Supply (Min) (V)	1.65
Power Supply (Max) (V)	5.5
Channel	1
Data Rate (Max) (Mbps)	20
ICCA+ICCB (Max) (μA)	2
Temperature	-40℃~125℃
Tpd (Typ) (ns)	4.1@3.3V
Package (mm)	SOT353-5L
Output Type
IOLmax (Max) (mA)	32
IOHmax (Max) (mA)	/

封装 | 引脚 | 尺寸

SOT353-5L

特性

AWS74LVC1G07STR is a single buffer with open-drain output. The device accepts any supply voltage from 1.65V to 5.5V and the maximum sink current is 32mA. The AWS74LVC1G07STR can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. The AWS74LVC1G07STR is fully specified for partial power-down applications using off output current (IOFF).The outputs for this device enter a high-impedance state when the device is powered down, preventing any damaging backflow current through the device.

说明

 Supply voltage range: 1.65V to 3.6V
 -24mA output drive at 3.0V
 IOFF supports partial-power-down mode operation
 CMOS low power consumption
 Direct interface with TTL levels
 Latch-up performance exceeds ±200mA
 ESD protection：
Exceeds 2000V Human Body Model
Exceeds 1500V Charged Device Model
 SOT353 2.07mm X1.26mm X1.1mm-5L package

技术文档

类型	项目标题	语言	日期
产品设计指南	AWS74LVC1G07STR 硬件设计指南	中文	2023-06-27
产品设计指南	AWS74LVC1G07_Hardware_Design_Guide	中文	2025-02-20
产品手册	DS_AWS74LVC1G07_EN_V1.2	英文	2025-02-20

设计和开发

如需其他信息或资源，请查看下方列表，点击标题即可进入详情页面。

硬件开发

评估板

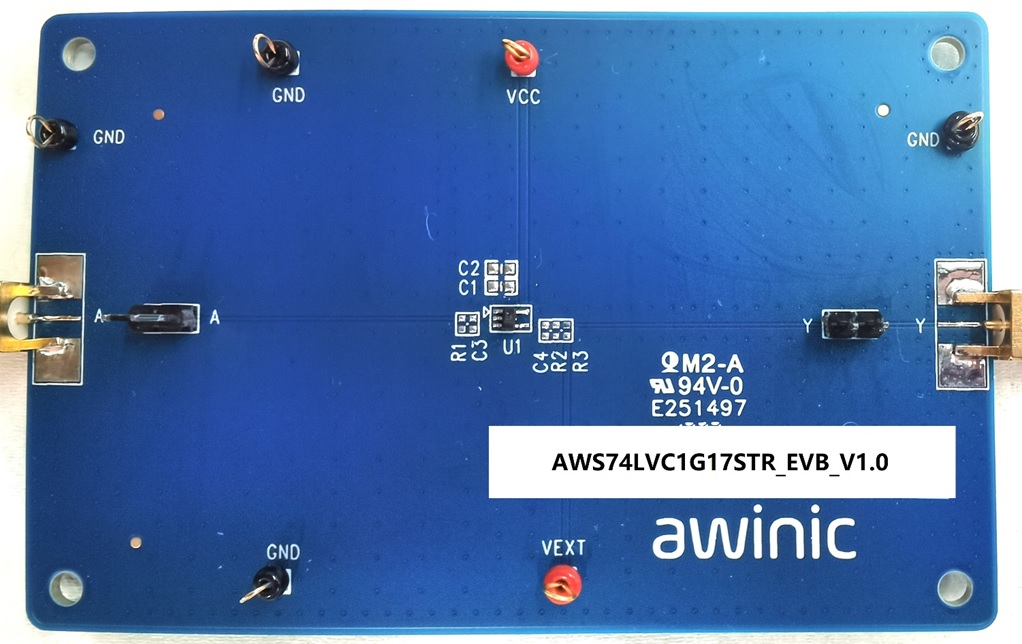

AWS74AUP1T17STR DEMO V1.0 — AWS74LVC1G14STR_EVB_V1.0支持AWS74LVC1G14STR
