AWS72240A3SPRT

产品手册：

在线预览 - AWS72240A3SPRT - 产品手册

参考价格

1-99￥15.38
100-249￥12.61
250-499￥10.15
500-999￥8.00
1000+￥6.15

产品详细信息

参数

Channel	1
Power Supply (Min) (V)	-6
Power Supply (Max) (V)	72
Vos@25℃ (Max) (mV)	0.02
Vos TC (Typ) (µV/℃)	0.03
Gain (V/V)	50
Gain error (%)	0.013
Bandwidth (kHz)	1100
CMRR (Typ) (dB)	150
Power Supply (Min) (V)	2.7
Power Supply (Max) (V)	5.5
Temperature	-40℃~125℃
IB (Typ) (pA)	2.5
Package	TSSOP-8L

封装 | 引脚 | 尺寸

TSSOP-8L

特性

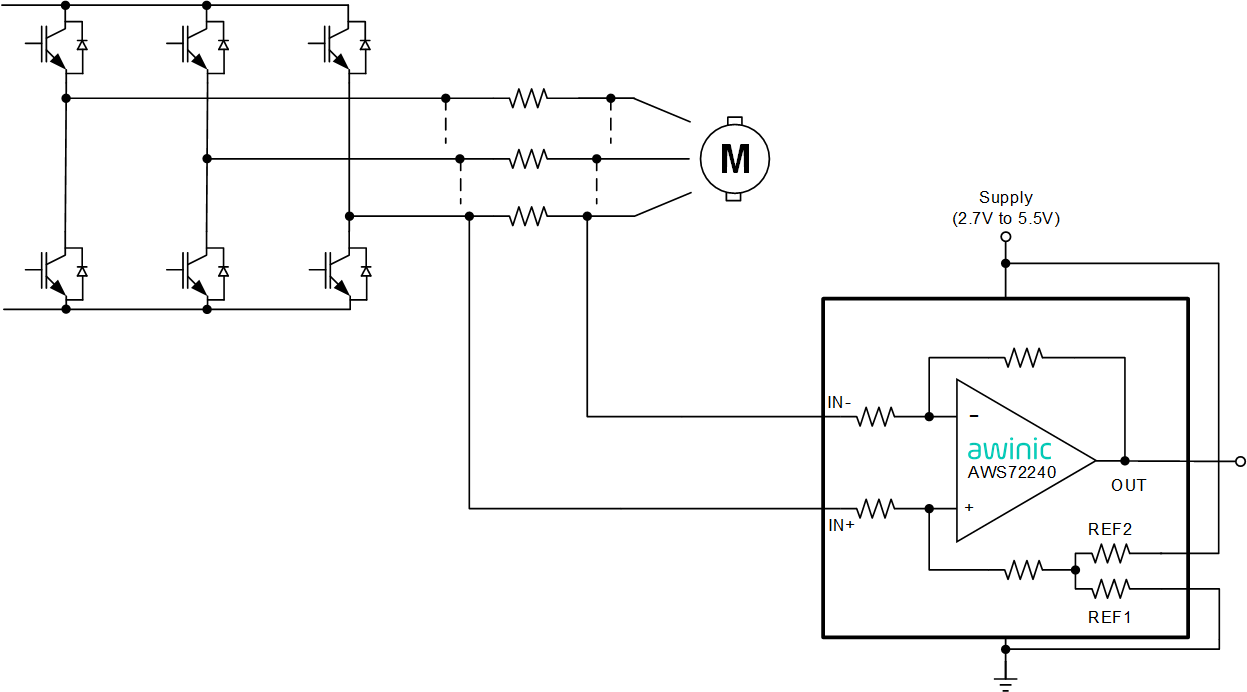

Enhanced PWM rejection optimized for systems subject to switching common-mode voltages Excellent CMRR – 130dB (min) – 106dB AC CMRR at 50kHz Wide common-mode voltage: −6V to 72V Accuracy: –Gain error :0.1%,9ppm/℃ drift(max) –Offset voltage: ±20uV,0.6uV/℃ drift (max) Bandwidth: 1.1 MHz Low Quiescent Current: Available gains: AWS72240A1:10V/V AWS72240A2:20V/V AWS72240A3:50V/V AWS72240A4:100V/V AWS72240A5:200V/V

技术文档

类型	项目标题	语言	日期
产品手册	DS_AWS72240_EN_V1.0	英文	2026-03-13
产品设计指南	AWS72240A3SPRT Hardware Design Guide	英文	2026-06-08
可靠性报告	Reliability Qualification Report For AWS72240A3SPRT	英文	2026-07-14
