AWR13412EDNR

0.1-5.925GHz 3G/4G/5G SPDT RX射频开关

产品手册：

在线预览 - AWR13412EDNR - 产品手册在线预览 - AWR13412EDNR - 产品手册

参考价格

1-99￥0.35
100-249￥0.28
250-499￥0.23
500-999￥0.18
1000+￥0.14

产品详细信息

参数

Frequency (GHz)
Switch Feature
Control Interface
VDD (Min) (V)
VDD (Max) (V)
VIO (Min) (V)
VIO (Max) (V)
P0.1dB (dBm)
IL (Min) (dB)
IL (Max) (dB)
ISO (Max) (dB)
ISO (Min) (dB)
Temperature
Package (mm)	DFN 1.1X0.7-6L

封装 | 引脚 | 尺寸

DFN 1.1X0.7-6L

特性

1.工作频率范围：0.1 至 5.925GHz 2.低插入损耗：0.29dB@2.7GHz 3.高隔离度：28dB@2.7GHz 4.集成逻辑控制 5.DFN 1.1X0.7-6L 封装

说明

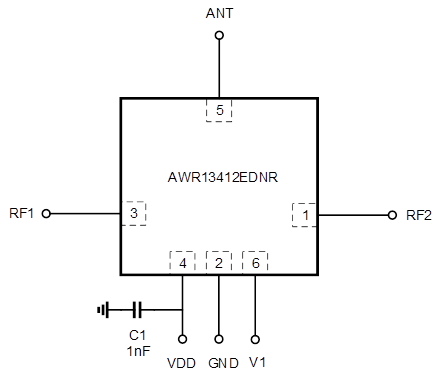

The AWR13412EDNR is a SPDT switch with low insertion loss and high Isolation. It can be used to support band switching and mode switching for cellular 3G/4G/5G, data cards and tablets. It is also WLAN compatible. The symmetrical design of internal ports makes it convenient for PCB routing and adjustment of receiving and transmitting signals. The band/mode switching is realized by the GPIO pins as referenced in the chip block diagram and the control logic. The AWR13412EDNR is provided in a compact DFN 1.1X0.7-6L package

技术文档

类型	项目标题	语言	日期
产品设计指南	AWR13412EDNR Hardware Design Guide	英文	2026-05-18
产品手册	DS_AWR13412E_CN_V1.0	中文	2026-08-18
产品手册	DS_AWR13412E_EN_V1.0	英文	2026-08-18
可靠性报告	Reliability Qualification Report For AWR13412EDNR	英文	2026-08-27
