AWP37578CSR

Triple Outputs Switching Converter for AMOLED Display

产品手册：

在线预览 - AWP37578CSR - 产品手册

参考价格

1-99￥10.77
100-249￥8.83
250-499￥7.11
500-999￥5.60
1000+￥4.31

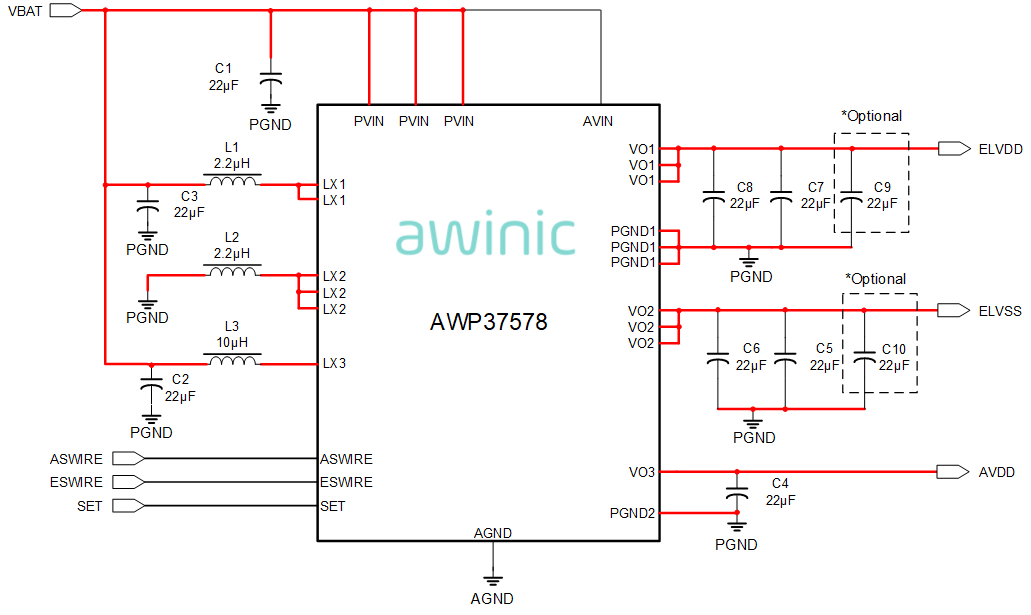

产品详细信息

参数

Control Interface	one-wire
ELVDD (Min) (V)	4.6
ELVDD (Max) (V)	5
ELVSS (Min) (V)	-6.6
ELVSS (Max) (V)	-0.5
AVDD (Min) (V)	6.5
AVDD (Max) (V)	8.0
Maximum ELVDD/ELVSS Current (mA)	900
Maximum AVDD Current (mA)	150
Temperature	-40℃~85℃
Power Supply (Min) (V)	2.5
Power Supply (Max) (V)	4.8
IO Level (V)	1.2
Package (mm)	WLCSP 2.017X2.017-25B

封装 | 引脚 | 尺寸

WLCSP 2.017X2.017-25B

特性

 Input voltage: 2.5V ~ 4.8V  Excellent line and load transient response  Programmable output voltage by ESWIRE from 4.6V to 5V in 100mV steps (Default: 4.6V)  Programmable output voltage by ESWIRE from -6.6V to -0.5V in 100mV steps (Default: -4V)  Programmable output voltage by ASWIRE from 6.5V to 8.0V in 50mV (SET=H) or in 100mV (SET=L) steps (Default: 7.6V)  Max Output current for ELVDD and ELVSS  800mA @ VIN=2.5V, ELVDD=4.6V, ELVSS= -4.0V  1000mA @ VIN=2.9V, ELVDD=4.6V, ELVSS= -4.0V  900mA @ VIN=2.9V, ELVDD=4.6V, ELVSS= -4.5V  150mA Max Output current for AVDD  Short Circuit Protection (SCP)  WLCSP 2.017X2.017 - 25B

技术文档

类型	项目标题	语言	日期
产品设计指南	AWP3757X Hardware Design Guide	英文	2026-01-13
产品设计指南	AWP3757X硬件设计指南	中文	2026-01-28
产品手册	DS_AWP37578_EN_V1.2	英文	2026-07-06
