AWD86566BBDNR

高灵敏度微功耗线性霍尔效应传感器

产品手册：

在线预览 - AWD86566BBDNR - 产品手册在线预览 - AWD86566BBDNR - 产品手册

参考价格

1-99￥1.57
100-249￥1.29
250-499￥1.04
500-999￥0.82
1000+￥0.63

产品详细信息

参数

Output Type	Analog
VDD (Min) (V)	2.7
VDD (Max) (V)	5.5
Sensitivity (mV/Gs)
Sleep Current (μA)	NAr
BandWidth (kHz)	15k
Noise(mVrms)	0.3
Temperature	-40℃~125℃
linearity(%)	0.1
Package (mm)	DFN 1.6X1.6-6L

封装 | 引脚 | 尺寸

DFN 1.6X1.6-6L

特性

比例式线性霍尔效应磁传感器工作电源电压范围：2.7V 至 5.5V 模拟输出，静态偏置为 1/2*Vcc 超低噪声 < 0.30mVRMS 低功耗： 2.0mA @ Vcc=3.3V 2.7mA @ Vcc=5.0V 磁灵敏度选择： 1.5mV/Gs @Vcc=3.3V 2.5mV/Gs @Vcc=5.0V 快速 15kHz 传感带宽温度稳定的静态电压输出和灵敏度宽工作温度范围： -40°C 至 +125°C 封装：WBDFN 1.6x1.6-6L

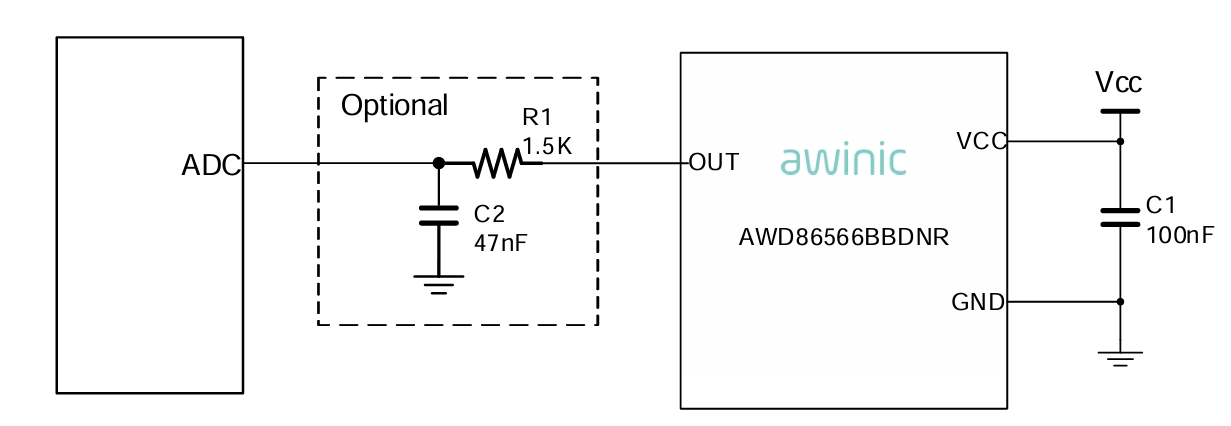

说明

The AWD86566BBDNR is a linear Hall effect sensor that responds proportionally to magnetic flux density. This device enables precise position detection and supports a wide range of applications, where low power consumption is a key consideration. The recommend operation voltage at 3.3V or 5V. In the absence of a magnetic field, the analog output drives to 1/2* Vcc The output varies linearly with the applied magnetic flux density. Sensitivity options deliver maximum output voltage swing for the desired sensing range. North and south magnetic poles produce distinct output voltages. The AWD86566BBDNR features magnet temperature compensation to counteract how magnets drift for linear performance across a wide -40°C to +125°C temperature range.

技术文档

	类型	项目标题		语言		日期
	产品手册	DS_AWD86566BBDNR_CN_V1.0		中文		2026-09-15
	产品手册	DS_AWD86566BBDNR_EN_V1.0		英文		2026-09-15
