AWD8231ASPR

3.7A DC Motor Driver with Integrated Current Sensing and Regulation

产品手册 :

在线预览 - AWD8231ASPR-英语版 - 产品手册

参考价格：

1-99￥3.84
100-249￥3.15
250-499￥2.53
500-999￥2.00
1000+￥1.54

产品详细信息

Motor Type	BDC Motor
H bridge	1
Micro Step	-
VDD (Min) (V)	4.5
VDD (Max) (V)	33
Peak Current (A)	3.6
Ron (mΩ)	560
Control Mode	GPIO/PWM
CTRL IF	GPIO
Temperature	-40℃~125℃
Function	Current Sensing and Regulation
Package (mm)	ESOP-8L

ESOP-8L

Drives a DC Motor or Other Loads Rdson HS + LS: 560mΩ 3.6-A Maximum Drive Current VM: 4.5V to 33V Operating Voltage Range PWM Control Interface Low-Power Sleep Mode Integrated IPROPI current sensing for stall detection and current regulation Over-Current Protection (OCP) Thermal Shutdown (TSD) Under-Voltage Protection(UVLO)

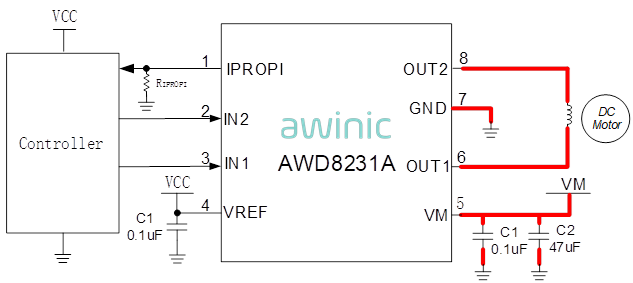

The AWD8231A device is an integrated motor driver, which is equipped with an N-channel H-bridge, a charge pump, current-sensing feedback, current regulation and protection circuits. The charge pump boosts efficiency by supporting N-channel MOSFET half bridges and 100% duty cycle driving. The internal current mirror architecture on the IPROPI pin realizes the functions of current sensing and regulation, which eliminates the necessity of using large power shunt resistors, thus saving the board area and reducing the system cost. The IPROPI current-sensing output enables the microcontroller to detect motor stall or changes in load conditions. The external voltage reference pin VREF can determine the threshold of current regulation during startup and stall events without the intervention of the microcontroller. The low-power sleep mode achieves ultra-low quiescent current consumption by shutting down most of the internal circuits. Its internal protection features include power undervoltage lockout, output overcurrent and device overheating protection.

技术文档

	类型	项目标题		语言		日期
	产品设计指南	AWD8231ASPR硬件设计指南		中文		2025-07-02
	产品手册	DS_AWD8231A _EN_V1.1		英文		2025-09-10

设计和开发

如需其他信息或资源，请查看下方列表，点击标题即可进入详情页面。

硬件开发

评估板

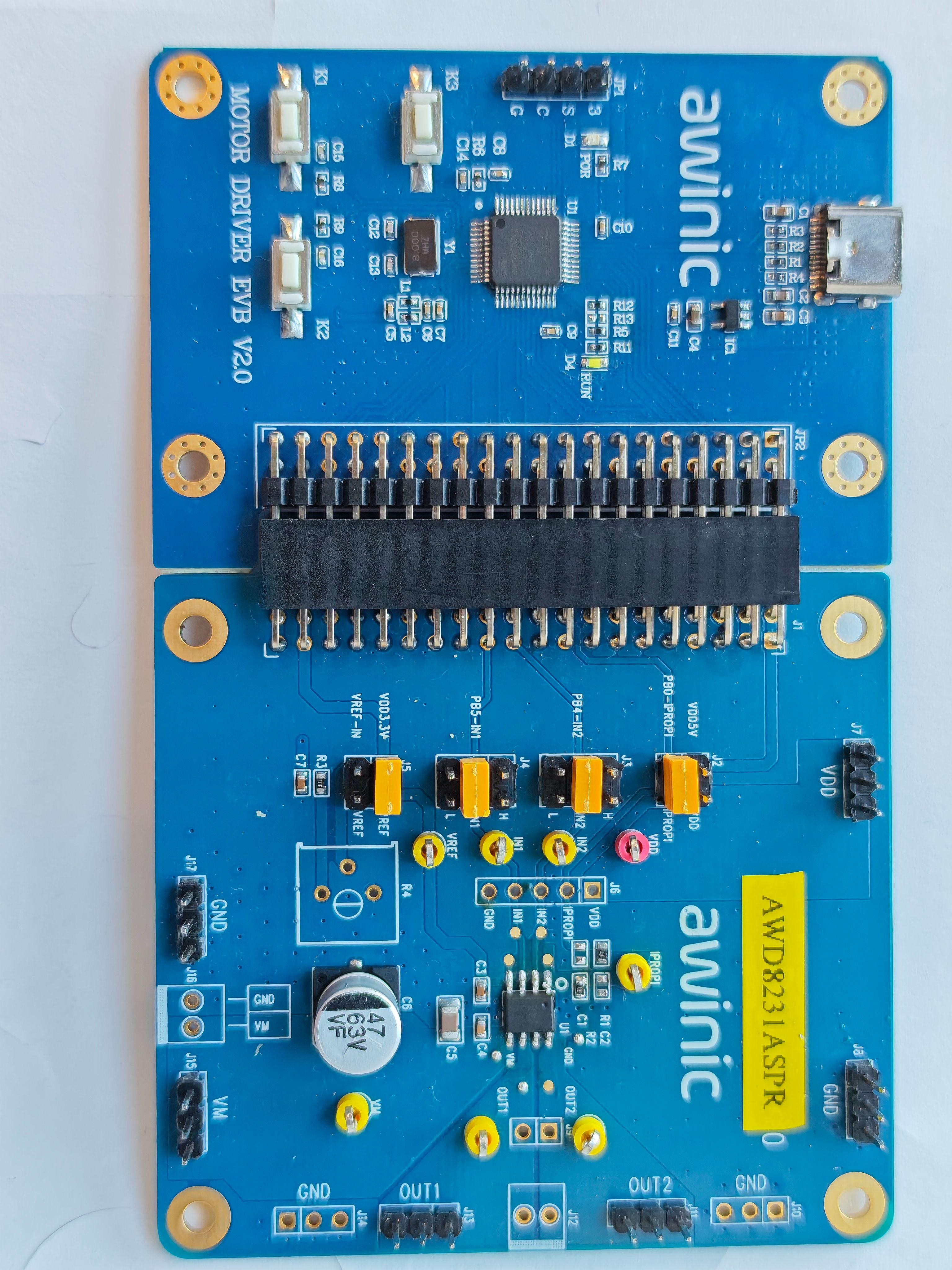

AWD8231A_EVB_V1.0 — AWD8231A_EVB_V1.0是直流电机驱动性能评估板，搭配MOTOR DRIVER EVB V2.0可实现直流电机的驱动评估.

AWD8231A芯片EVB评估板

了解详情

软件开发

应用软件和框架

BDC_MOTOR_DRIVER_GUI_v0.2.0.zip — AWD8231ASPR 产品调试工具

AW BDC_MOTOR_DRIVER_GUI软件可以依据选定的控制逻辑对芯片进行控制操作，实现用户通过上位机设定的芯片控制功能。

了解详情
