Channel |
5 |
LED Output |
0 |
Gesture Detection |
Click Slide IED |
ISD (μA) |
/ |
Istandby (μA) |
2.5 |
Capacitance Resolution(fF) |
0.001 |
Power Supply (Min) (V) |
2.7 |
Power Supply (Max) (V) |
3.6 |
Temperature |
-40℃~85℃ |
Flash |
YES |
Package (mm) |
DFN 2.1X1.8-10L |
1. 5-channel capacitive sensing
Self/Mutual capacitive sensing
Capacitance resolution down to 1aF
Auto-Offset-Tuning (AOT)
Adaptive Temperature Compensation
Effective waterproof
Independent configurations per channel
2. Built-in gesture/event recognition:
Click/Wear detection
Linear slide detection
Capacitive force detection
3. 400kHz I2C interface
1.2/1.8V IO logic supported
Default address: 0x12
4. External interrupt pin INTN, open-drain output
5. Built-in brown-out reset(BOR)
6. Low power consumption
Active mode:15.5μA
Doze mode:6.5μA
Sleep mode:5.0μA
Deep Sleep mode:2.5μA
7. 2.7V~3.6V power supply
8. DFN 2.1mm×1.8mm×0.55mm-10L package

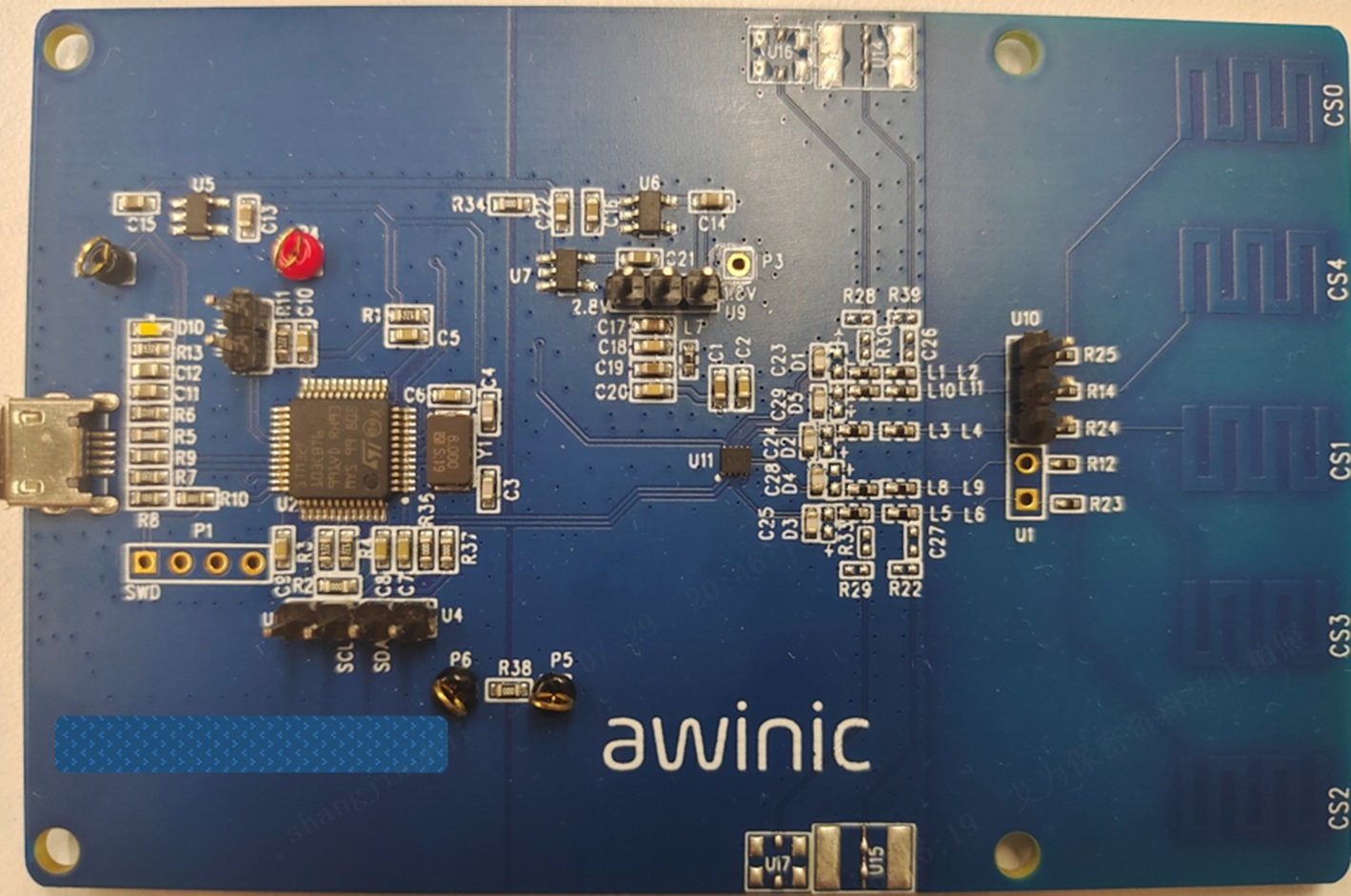

AW93205DNR is an 5-channel capacitive proximity and touch controller mainly used for wear detection, touch key, linear slider, wheel slider, etc. The chip can realize accurate position detection for lamp dimming, volume adjustment, etc.
AW93205DNR can recognize various gestures, such as single/double/triple click, short/long press and linear slide with the high-resolution capacitive sensing. The chip integrates mutual capacitive technology and dedicated algorithm, which greatly improve the waterproof performance for touch key.
The built-in ultra-low-power MCU and 16KB flash realize AFE sampling control, signal filtering, RF noise suppression, adaptive temperature compensation, baseline tracking, touch/wearing status determination, etc. The chip can flexibly customize the program and support online upgrade function.
