AW93001DSTR

A Low Power One-key Capacitor Touch Sensor.

产品手册：

在线预览 - AW93001DSTR - 产品手册

参考价格

1-99￥1.15
100-249￥0.95
250-499￥0.76
500-999￥0.60
1000+￥0.46

产品详细信息

参数

Channel	1
LED Output	0
Gesture Detection	Click
ISD (μA)	/
Istandby (μA)	1.3
Capacitance Resolution(fF)	100
Power Supply (Min) (V)	2.4
Power Supply (Max) (V)	5.5
Temperature	-40℃~85℃
Flash	NO
Package (mm)	SOT23-6L

封装 | 引脚 | 尺寸

SOT23-6L

特性

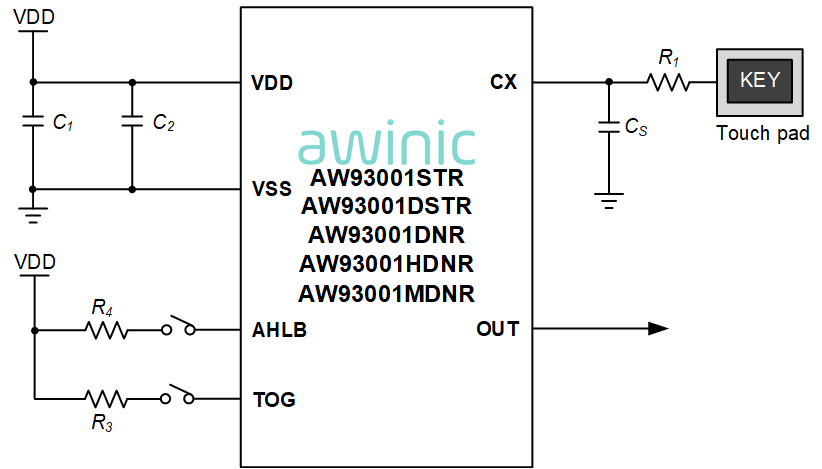

1 Sensitivity adjusted by the capacitance (0~50pF) outside (Refer to the DG_AW93001_Hardware_Design_Guide for details) 2 Maximum response time 1) Slow scan mode: 160ms(AW93001STR/BSTR/DNR/BDNR/CDNR/DDNR) 2) Slow scan mode: 64ms(AW93001EDNR/FDNR) 3) Fast scan mode: 48ms(AW93001STR/BSTR/DNR/BDNR/HDNR/GDNR/MDNR/LDNR/CSTR/DSTR/CDNR/DDNR/EDNR/FDNR) 3 Push-pull output (AW93001STR/DSTR/DNR/HDNR/MDNR) 1) Active high/low selected by pin AHLB 4 Push-pull output, active high(AW93001CDNR/EDNR) 5 Open-drain output, active low (AW93001BSTR/CSTR/BDNR/GDNR/LDNR/DDNR/FDNR) 6 Toggle output selected by pin TOG 7 Low power consumption 1) Slow scan mode (128ms): 1.3μA 2) Slow scan mode (32ms): 3.3μA 3) Fast scan mode (16ms): 5.4μA 8 2.4V~5.5V power supply 9 Operation temperature range: -40°C~85°C 10 Package 1) SOT23-6L 2) DFN 1.5mmx1.0mmx0.55mm-6L 3) DFN 2.0mmx2.0mmx0.75mm-6L 4) DFN 1.0mmx1.0mmx0.37mm-4L

说明

AW93001 is a single channel capacitive touch controller with low power consumption and wide operation voltage range.
With the help of signal processing algorithms, the device is able to track slow environmental variations, and maintain high performance operation.
AW93001 is designed for replacing traditional mechanical button. It can be applied in many fields, such as consumer electronics, white goods and appliances, etc.

技术文档

类型	项目标题	语言	日期
产品设计指南	AW93001 Hardware Design Guide	英文	2025-03-27
产品手册	DS_AW93001_EN_V2.8	英文	2025-05-28
产品设计指南	AW93001_Hardware_Design_Guide_CN	中文	2026-06-12
可靠性报告	Reliability Qualification Report For AW93001DSTR	英文	2026-05-19

设计和开发

如需其他信息或资源，请查看下方列表，点击标题即可进入详情页面。

硬件开发

评估板

AW93001X_EVB_V1.3 — AW93001X_EVB_V1.3是艾为低功耗单通道容式触摸芯片的演示板。芯片的供电电压为2.4V~5.5V。触控按键功能可以通过板上的指示灯状态进行演示。

适用于低功耗单通道容式触摸芯片的EVB评估主板
