AW88498QNR

I2S/TDM Input, 10.25V BOOST Digital Smart K Audio Amplifier with Speaker Voltage and Current Sense

产品手册：

在线预览 - AW88498QNR - 产品手册

参考价格

1-99￥13.46
100-249￥11.04
250-499￥8.88
500-999￥7.00
1000+￥5.38

产品详细信息

参数

Power Supply (Min) (V)	2.3
Power Supply (Max) (V)	5.5
Digital Supply (Min) (V)	1.65
Digital Supply (Max) (V)	1.95
IO Supply (Min) (V)	1.1
IO Supply (Max) (V)	1.95
PVDD Voltage(V)	10.25
Boost Type	Adaptive Boost
PO(W) （8&THD=1%）	5.5
SPK Noise(uV)	11
DSP	NO
Protection	MEC+TPC
Control Interface	IIC
RCV mode	YES
RCV Noise(uV)	8
Temperature	-40℃~105℃
Package (mm)	QFN 4X4-32L

封装 | 引脚 | 尺寸

QFN 4X4-32L

特性

Smart BOOST with total efficiency up to 86% High RF noise suppression, eliminate the TDD noise completely Low noise: 8μV THD+N: 0.02% Speaker Voltage and Current monitor and feedback with I2S/TDM interface Supports 4Ω Speaker Extensive Pop-Click Suppression Volume control (from -96dB to 0dB) I2S/TDM interface： I2S, Left-Justified and Right-Justified Supports 1/2/4/6/8 slots TDM Input Sample Rates from 8kHz to 192kHz Data Width: 16~32 Bits Ultrasonic support with sample frequency of ≥48kHz I2C-bus control interface Power Supplies： VBAT: 2.3V-5.5V DVDD: 1.65V~1.95V VDDIO: 1.1V~1.95V Battery Brown Out Protection Short-Circuit Protection, Over-Temperature Protection, Under-Voltage Protection and Over-Voltage Protection WBQFN 4mm X 4mm-32L package

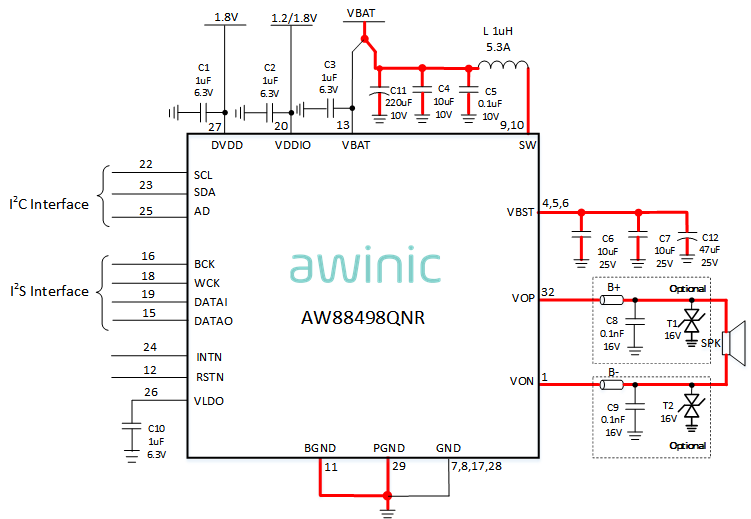

说明

The AW88498 is an I2S/TDM input, high efficiency digital Smart K audio amplifier with an integrated 10.25V smart boost converter. Due to its 8μV noise floor and ultra-low distortion, clean listening is guaranteed. It can deliver 6.2W output power into an 4Ω speaker at 1% THD+N. The AW88498 integrates a high-efficiency smart boost converter as the Class-D amplifier supply rail. The output voltage of boost converter can be adjusted smartly according to the input amplitude, which extremely improves the efficiency without clipping distortion. The AW88498 features high RF suppression and eliminates TDD noise completely benefited from the digital audio input interface. General settings are communicated via an I2C-bus interface, and the device address is configurable. The AW88498 offers Short Circuit Protection, Over-Temperature Protection, Under-Voltage Protection and Over-Voltage Protection to protect the device. AW88498 is available in a WBQFN 4mm X 4mm-32L package.

技术文档

类型	项目标题	语言	日期
产品设计指南	DG_AW88498_Software_Design_Guide	英文	2026-01-16
产品设计指南	DG_AW88498_Software_Design_Guide	中文	2026-01-16
产品手册	DS_AW88498QNR_EN_V1.0	中文	2026-01-30
产品设计指南	AW88498QNR Hardware Design Guide	中文	2026-02-25
技术帖	【技术贴】便携式智能音箱音频解决方案	中文	2024-06-21
