| Power Supply (Min) (V) |
3.0 |
| Power Supply (Max) (V) |
5.5 |
| Digital Supply (Min) (V) |
1.65 |
| Digital Supply (Max) (V) |
1.95 |
| IO Supply (Min) (V) |
1.65 |
| IO Supply (Max) (V) |
1.95 |
| PVDD Voltage(V) |
6.25 |
| Boost Type |
Adaptive Boost |
| PO(W)
（8&THD=1%） |
2.1W@4.2V(8Ω&THD=1%) |
| SPK
Noise(uV) |
10μV@6.75AV(3.6V) |
| DSP |
YES |
| Protection |
MEC+TPC |
| Control Interface |
IIC |
| RCV mode |
YES |
| RCV
Noise(uV) |
10μV@4.5AV(3.6V) |
| Temperature |
-40℃~85℃ |
| Package (mm) |
FCQFN 2X2.5-20L |
Integrates SKTune Algorithm
Bass Booster
Parametric Equalizer
Dynamic Range Control
Anti-clip Voltage Limiter
Speaker Membrane Excursion and Temperature Protection
Smart BOOST with total efficiency up to 86%
High RF noise suppression, eliminate the TDD noise completely
Low noise: 10μV
THD+N: 0.006%
Supports 6Ω Speaker
Extensive Pop-Click Suppression
Volume control (from -95.875dB to 0dB)
I2S/TDM interface:
I2S, Left-Justified and Right-Justified
Supports 1/2/4/6/8 slots TDM
Input Sample Rates from 8kHz to 96kHz
Data Width: 16, 20, 24, 32 Bits
Ultrasonic support via TDM/I2S running at 96kHz
I2C-bus control interface(1MHz)
Power Supplies:
VBAT: 3.0V~5.5V
DVDD: 1.65V~1.95V
Short-Circuit Protection, Over-Temperature Protection, Under-Voltage Protection and Over-Voltage Protection
FCQFN 2.0mmX2.5mmX0.55mm-20L Package

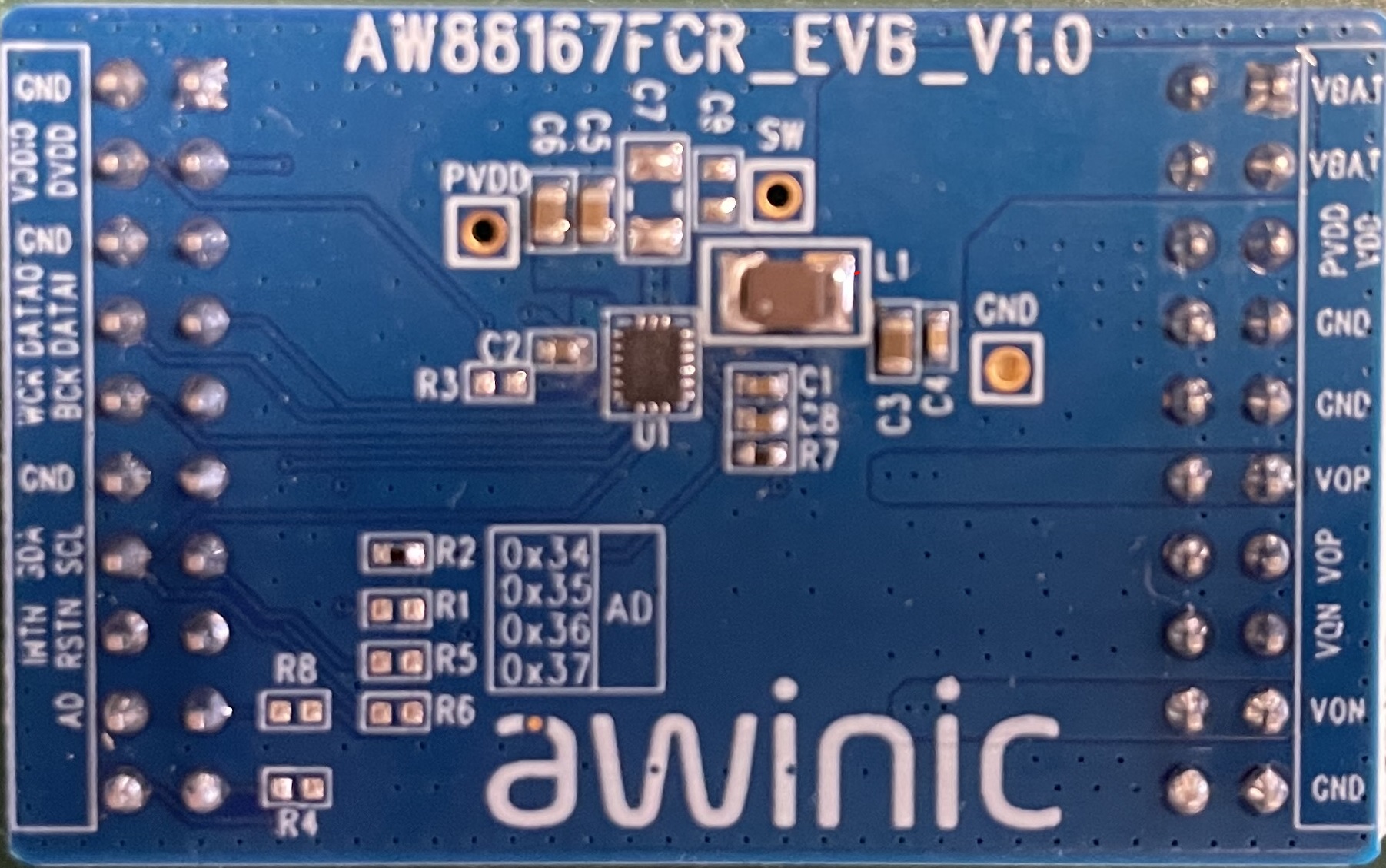

The AW88167 is an I2S/TDM input, high efficiency digital Smart K audio amplifier with an integrated 6.25V smart boost converter, sound quality enhancement algorithm and speaker protection. Due to its 10μV noise floor and ultra-low distortion, clean listening is guaranteed. It can deliver 2.1W output power into an 8Ω speaker at 1% THD+N.
The AW88167 integrates SKTune algorithm that includes parametric audio path equalizer, dynamic range control, anti-clip voltage limiter and speaker protection. The SKTune algorithm maximizes speaker performance while maintaining safe speaker conditions.
The AW88167 integrates a high-efficiency smart boost converter as the Class-D amplifier supply rail. The output voltage of boost converter can be adjusted smartly according to the input amplitude, which extremely improves the efficiency without clipping distortion.
The AW88167 features high RF suppression and eliminates TDD noise completely benefited from the digital audio input interface. General settings are communicated via an I2C-bus interface, and the device address is configurable.
The AW88167 offers Short Circuit Protection, Over-Temperature Protection, Under-Voltage Protection and Over-Voltage Protection to protect the device.
AW88167 is available in a FCQFN 2.0mmX2.5mmX0.55mm-20L Package.
