| Power Supply (Min) (V) |
2.5 |
| Power Supply (Max) (V) |
5.5 |
| PVDD Voltage(V) |
5.5 |
| Boost Type |
/ |
| PO(W) （8Ω&THD=1%） |
1.4W |
| SPK Noise(uV) |
19μV@0dB |
| Protection |
/ |
| Control Interface |
/ |
| RCV mode |
NO |
| RCV Noise(uV) |
NA |
| Temperature |
-40℃~85℃ |
| Package (mm) |
WLCSP 0.98X0.98-9B |
Ultra-Low Power：
Quiescent Current: 0.95mA@3.7V
Shutdown Current: <0.1A@3.7V
Low noise: 19µV@0dB
Five Pin-Selectable Gains :0dB,3dB, 6dB, 9dB, and 12dB
Hight Efficiency: 93%@1.75W
Output Power:
1.4W@5.0V, RL=8, THD+N=1%
1.8W@5.0V, RL=8, THD+N=10%
High PSRR：81dB
Spread Spectrum and Active Emissions Limiting
Extensive Click-and-Pop Suppression
Simplified interface for audio and general settings
Power Supplies
PVDD：2.5V-5.5V
Thermal and Overcurrent Protection
WLCSP 0.98mmX0.98mm-9B package

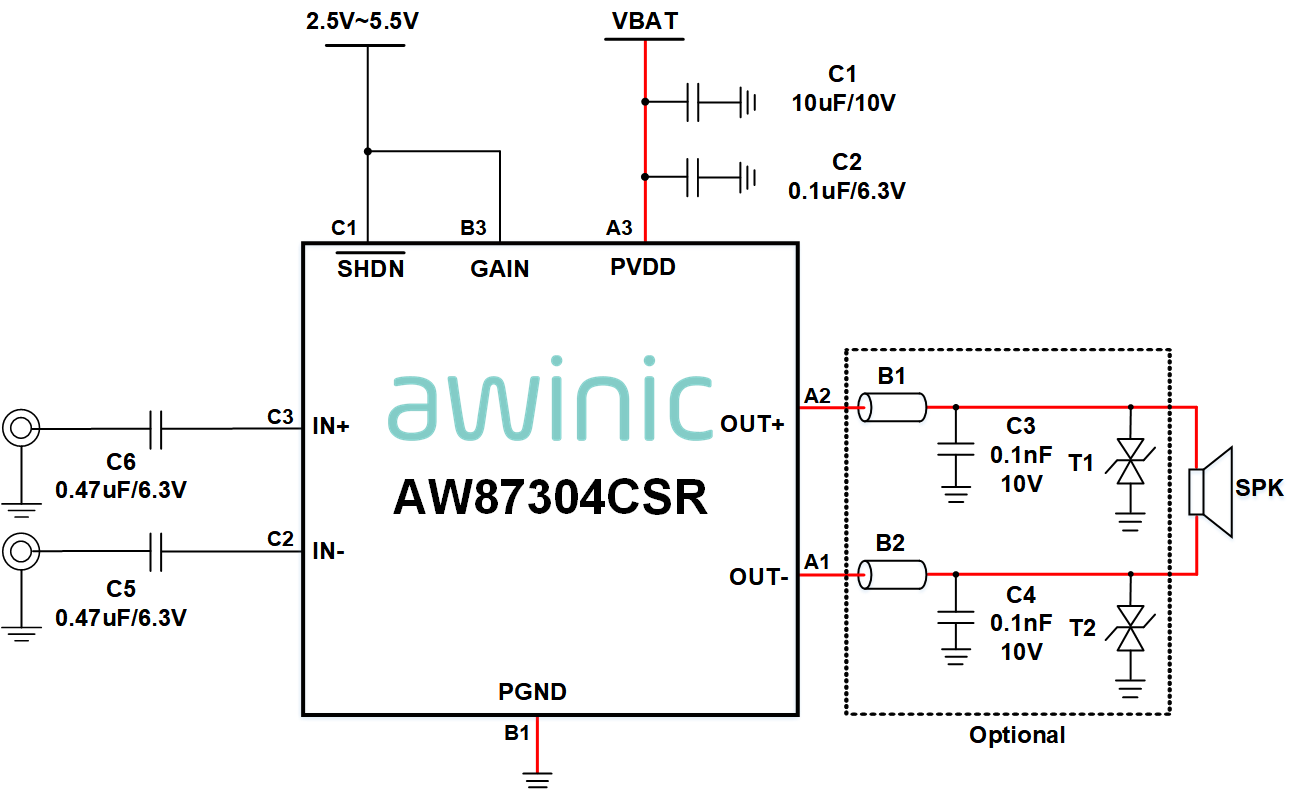

The AW87304 is a Mono Class-D audio amplifier. With a quiescent current of 0.95mA at 3.7V, it extends battery life in portable applications. Its 19V ultra-low noise floor and low distortion ensure clean listening. It can deliver 1.8W output power into a 8 speaker at 10% THD+N.
The amplifier offers five configurable gain settings controlled via a dedicated gain selection pin. Integrated spread spectrum modulation and edge-rate limiting reduces EMI while reducing the size and cost of output filters.
The amplifier offers Over-Current Protection, Over-Temperature Protection, Under-Voltage Protection to protect the device.
The amplifier features click-and-pop suppression that reduces audible transients on startup and shutdown.
AW87304 is available in a WLCSP 0.98X0.98-9B package.
