特性
•1MHz I2C Bus
•4-KByte Memory
•12k/24k/48k input wave sampling rate
•F0 detect and tracking
•Advance autobrake engine integrated
•Playback mode:
➢Real time playback(Up to 4KByte FIFO)
➢Memory playback
➢1 Trigger playback
➢One wire playback
➢Cont playback
•Resistance-Based LRA Diagnostics
•Drive signal monitor for LRA protect
•Drive Compensation Over Battery Discharge
•Fast Start Up Time ＜1ms
•Dedicated interrupt output pin
•Charge pump output voltage up to 6.3V
•Minimum load resistance 10Ω
•Support automatically switch to standby mode
•Standby current：3uA@Vbat=3.6V
•Shutdown current：0.1uA
•Supply voltage range 3 to 5.5V
•Short-Circuit Protection, Over-Temperature Protection, Under-Voltage Protection
•FCQFN 2mm × 2mm × 0.55mm -16L Package

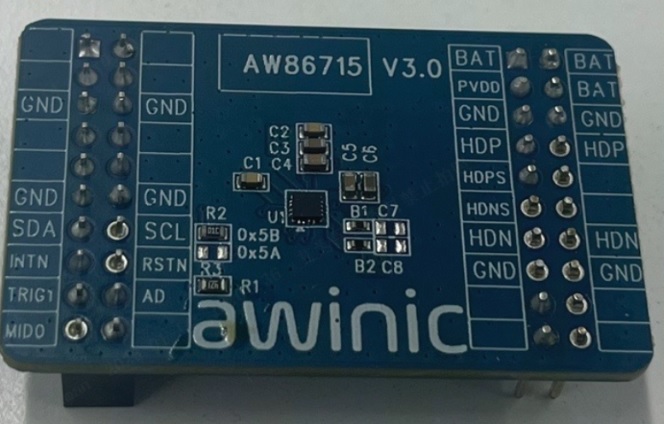

说明
AW86715 integrates an autobrake engine to suppress the aftershocks to zero for different drive waveforms(short in long) on different LRA motor.
AW86715 supports LRA fault diagnostic based on resistance measurement and protections of short-circuit, over-temperature and under-voltage.
AW86715 integrates a high-efficiency charge pump as the H-Bridge driver supply rail. The output voltage, maximum current limit and maximum charge pump current are configurable.
AW86715 features configurable automatically switch to standby mode after haptic waveform playback finished. This can less quiescent power consumption. The RSTN pin provides further power saving by fully shut down the whole device. Dedicated interrupt output pin can detect real time FIFO status and the error status of the chip.
AW86715 features general settings are communicated via an I2C-bus interface and its I2C address is configurable.
AW86715 is available in a FCQFN 2mm × 2mm × 0.55mm -16L package.
