| Pole Type |
omnipolar |
| VDD (Min) (V) |
1.6 |
| VDD (Max) (V) |
5.5 |
| Sensitivity Bop (Gs) |
±25 |
| Sensitivity Brp (Gs) |
±18 |
| BHY (Gs) |
7 |
| IDD_AVG (μA) |
0.8 |
| IDD_Sleep (μA) |
0.43 |
| Channel |
1 |
| Temperature |
-40℃~85℃ |
| Output Type |
Push Pull |
| Package (mm) |
FCDFN 0.8X0.8-4L |
High sensitive omnipolar operation
Micropower operation Typ 0.8uA (average : VDD=1.8V)
Ultra small package:FCDFN 0.8mmX0.8mm-4L
On board voltage regulator for 1.6V to 5.5V range
Magnetic threshold options:Bop=±25Gs, Brp=±18Gs
Wide operating temperature range: -40°C to 85°C

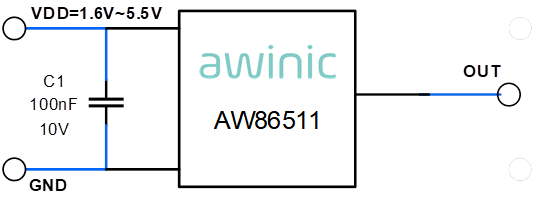

The AW86511EBCFDR device is an ultra-low-power switch Hall effect sensor with internal pull up and pull down capability, designed for the most compact and battery-sensitive systems. The supply range of AW86511EBCFDR is 1.6V to 5.5V to support portable equipment. To minimize PCB space, the AW86511EBCFDR have ultra small packages: FCDFN 0.8mmX0.8mm-4L
When the magnetic field strength is greater than Bop, then the device output is pulled low; When the magnetic field strength is less than Brp, then the device output is pulled high; When the magnetic field strength is between Bop and Brp, then the device output remains in the previous state.
