AW86504ASTR

High Sensitivity Micropower Omnipolar Hall-effect Switch

产品手册：

在线预览 - AW86504ASTR - 产品手册

参考价格

1-99￥1.23
100-249￥1.01
250-499￥0.81
500-999￥0.64
1000+￥0.49

产品详细信息

参数

Pole Type	omnipolar
VDD (Min) (V)	1.6
VDD (Max) (V)	5.5
Sensitivity Bop (Gs)	±30
Sensitivity Brp (Gs)	±20
BHY (Gs)	10
IDD_AVG (μA)	0.8
IDD_Sleep (μA)	0.43
Channel	1
Temperature	-40℃~85℃
Output Type	Push-Pull
Package (mm)	SOT23-3L

封装 | 引脚 | 尺寸

SOT23-3L

特性

-High sensitive omnipolar operation.
-Micropower operation.
Typ 0.8μA (average: VDD=1.8V).
-Ultra small package: SOT23-3L.
-On board voltage regulator for 1.6V to 5.5V range.
-Wide operating temperature range: -40℃ to 85℃.
-ESD (HBM) > 6KV.

说明

AW86504ASTR is a high-sensitivity micropower Omnipolar Hall effect switch IC with internal pull up and pull down capability. AW86504ASTR uses a hibernating clocking system to reduce power consumption, which the total power consumption in normal operation is typically 0.8μA with a 1.8V power source. Mainly designed for portable devices such as laptop computer, smartphone and bluetooth headset etc. The supply range of AW86504ASTR is 1.6V to 5.5V to support portable equipment. To minimize PCB space, the AW86504ASTR has ultra small package: SOT23-3L.

When the magnetic field strength is greater than Bop, then the device output is pulled low; When the magnetic field strength is less than Brp, then the device output is pulled high; When the magnetic field strength is between Bop and Brp, then the device output remains in the previous state.

技术文档

	类型	项目标题		语言		日期
	产品手册	DS_AW86504ASTR_EN_V1.1		英文		2023-06-06

设计和开发

如需其他信息或资源，请查看下方列表，点击标题即可进入详情页面。

硬件开发

评估板

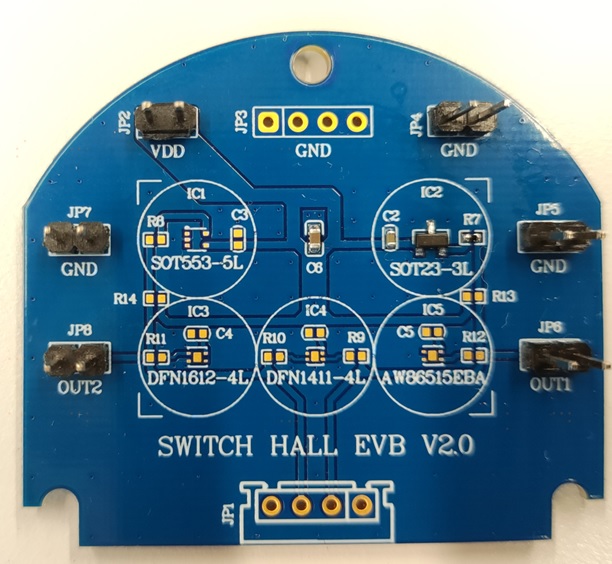

SWITCH HALL EVB V2.0 — SWITCH HALL EVB V2.0是艾为开关霍尔EVB评估板，可实现单芯片功能评估，以及用于磁场发生器结构适配通用评估板
