AW86503DNR

High Sensitivity Micropower Unipolar Hall-effect Switch

产品手册：

在线预览 - AW86503DNR - 产品手册

参考价格

1-99￥1.54
100-249￥1.26
250-499￥1.02
500-999￥0.80
1000+￥0.62

产品详细信息

参数

Pole Type	unipolar
VDD (Min) (V)	1.6
VDD (Max) (V)	5.5
Sensitivity Bop (Gs)	±30
Sensitivity Brp (Gs)	±20
BHY (Gs)	10
IDD_AVG (μA)	0.45
IDD_Sleep (μA)	0.4
Channel	2
Temperature	-40℃~85℃
Output Type	Push Pull
Package (mm)	DFN 1.4X1.1-4L

封装 | 引脚 | 尺寸

DFN 1.4X1.1-4L

特性

High sensitive unipolar operation. Micropower operation. Typ 0.45uA (average :VDD=1.8V). Ultra small package: DFN 1.4mm×1.1mm×0.37mm-4L. On board voltage regulator for 1.6V to 5.5V range. Wide operating temperature range: -40℃ to 85℃. ESD (HBM) > 6KV.

说明

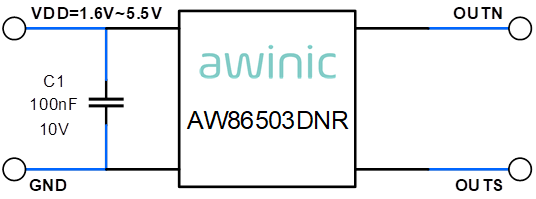

AW86503DNR is a high-sensitivity micropower unipolar Hall effect switch IC with internal pull up and pull down capability. AW86503DNR uses a hibernating clocking system to reduce power consumption, which the total power consumption in normal operation is typically 0.45A with a 1.8V power source. Mainly designed for portable devices such as laptop computer, smartphone and bluetooth headset etc. The supply range of AW86503DNR is 1.6V to 5.5V to support portable equipment. To minimize PCB space, the AW86503DNR has ultra small SON package: DFN 1.4mm×1.1mm×0.37mm-4L. The output1 is activity with a north pole of sufficient magnetic field strength. When the magnetic flux density perpendicular to the package is large than operate point(BopN) , the output will be turned on (pulled low) and held until B is lower than release point (BrpN). The output2 is activity with a south pole of sufficient magnetic field strength. When the magnetic flux density perpendicular to the package is large than operate point(BopS) , the output will be turned on (pulled low) and held until B is lower than release point (BrpS).

技术文档

	类型	项目标题		语言		日期
	产品手册	DS_AW86503DNR_EN_V1.5		英文		2025-04-11

设计和开发

如需其他信息或资源，请查看下方列表，点击标题即可进入详情页面。

硬件开发

评估板

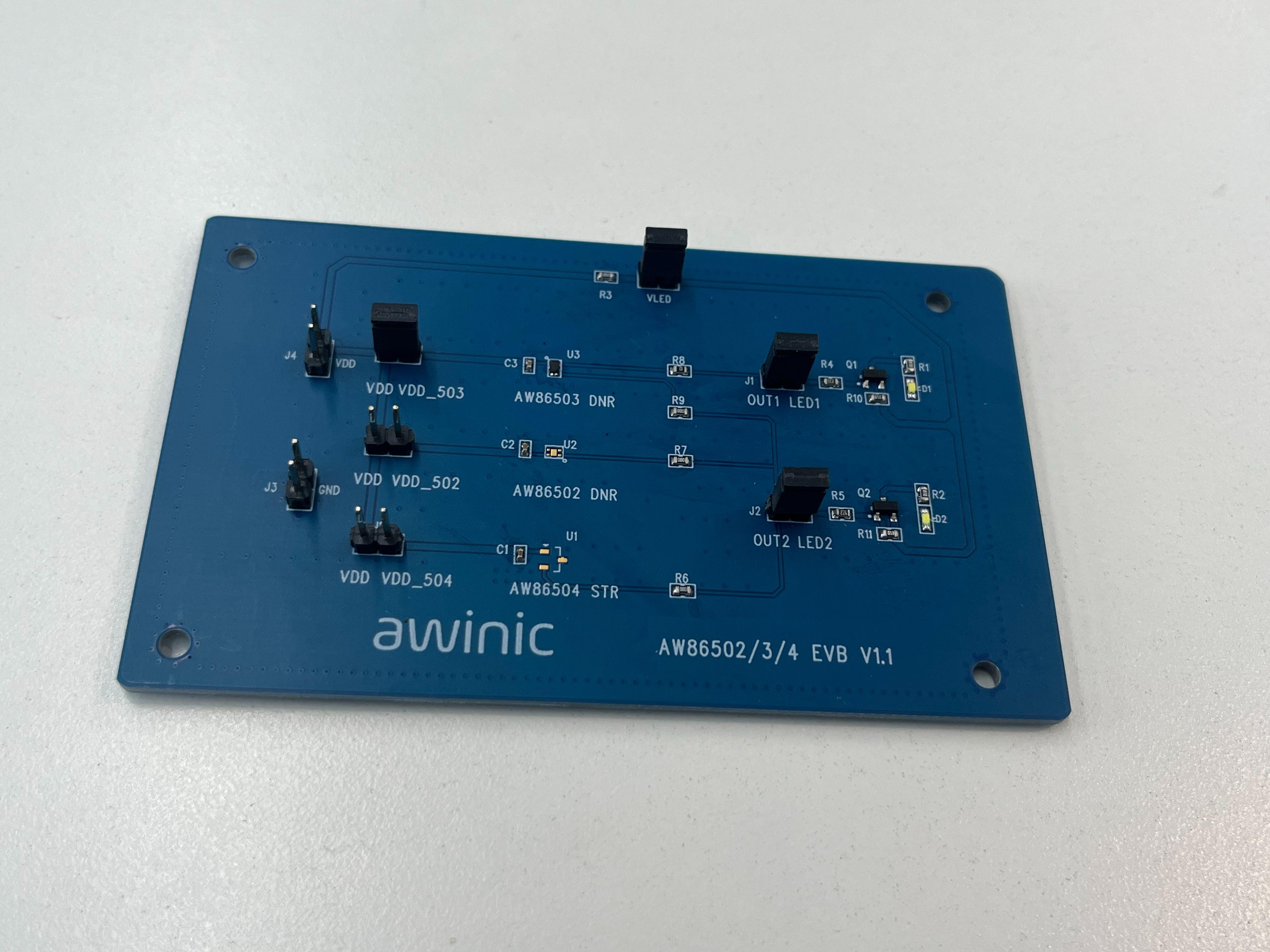

AW86502/3/4 EVB V1.1 — SWITCH HALL EVB V2.0是艾为开关霍尔EVB评估板，可实现单芯片功能评估，以及用于磁场发生器结构适配通用评估板是艾为开关霍尔EVB评估板，可实现单芯片功能评估，以及用于磁场发生器结构适配通用评估板

艾为开关霍尔EVB评估板

了解详情

硬件开发

评估板

艾为开关霍尔EVB评估板

了解详情
