| Motor Type |
BDC Motor |
| H bridge |
1 |
| Micro Step |
- |
| VDD (Min) (V) |
2 |
| VDD (Max) (V) |
9 |
| Peak Current (A) |
1.1 |
| Ron (mΩ) |
850 |
| Control Mode |
PWM |
| CTRL IF |
HW GPIO |
| Temperature |
-40℃~125℃ |
| Function |
-- |
| Package (mm) |
SOT23-6L |
Drives a DC Motor or Coil
Rdson HS + LS: 850mΩ(Typ)
Low-Power Sleep Mode With 100nA Maximum Sleep Current
VM: 2V to 7V Supply Voltage Range
1A Maximum Drive Current
WBSOT23-6L(1.25) package
Over-Current Protection
Over-Temperature Protection
Under-Voltage Protection

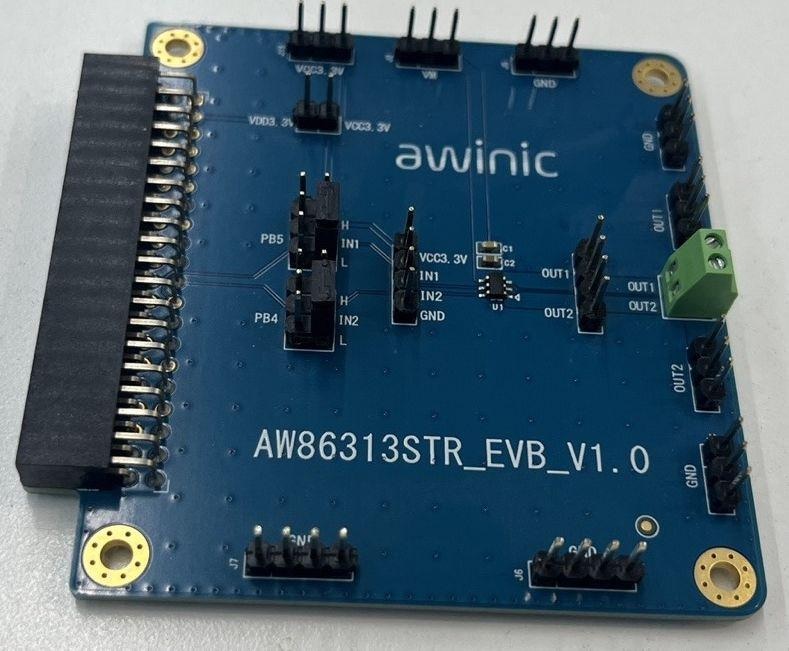

The AW86313 provides an integrated motor driver solution for LXSP, IR-CUT, consumer products, toys, and other low-voltage or battery-powered motion control applications. The device can drive one dc motor or other devices like solenoids. The output driver block consists of N-channel and P-channel power MOSFETs configured as an H-bridge to drive the motor winding.
The AW86313 has a PWM(IN1 and IN2) input interface, which is compatible with industry standard devices.
Internal shutdown functions are provided for Over-current protection, Over-temperature protection and Under-voltage Protection.
