| Voltage Type |
Vbat |
| Vout (Max) (V) |
5.5 |
| SRAM (kB) |
4 |
| Istandby (μA) |
0.5 |
| IO Level (V) |
1.2
1.8
3.3 |
| AAE |
YES |
| Input Signal |
IIS
IIC
3TRIG |
| LRA Calibration |
LCC3.0 |
| Temperature |
-40℃~85℃ |
| TikTap |
YES |
| Package (mm) |
QFN 1.6X1.6-12L |
1MHz I2C Bus
Integrated 4K Memory
8k/12k/24k/48k input wave sampling rate
F0 detect and tracking
Advance autobrake engine integrated
Playback mode:
Real time playback
Memory playback
3 Trigger playback
Cont playback
I2S/TDM playback
Tiktap Engine playback
Resistance-Based LRA Diagnostics
Drive signal monitor for LRA protect
Drive Compensation Over Battery Discharge
Fast Start Up Time: 0.2ms
Dedicated interrupt output pin
Support automatically switching to standby mode
VDD:Supply voltage range 2.3V to 5.5V
DVDD: Supply voltage range 1.7V to 5.5V
Standby current 4uA@DVDD=1.8V 0.5uA@VDD=4.2V
Short-Circuit Protection, Over-Temperature Protection, Under-Voltage Protection
Support ACH(Audio Couple Haptic)
Support AGH(Audio Generate Haptic)
Support LCC3.0(LRA intensity calibration)

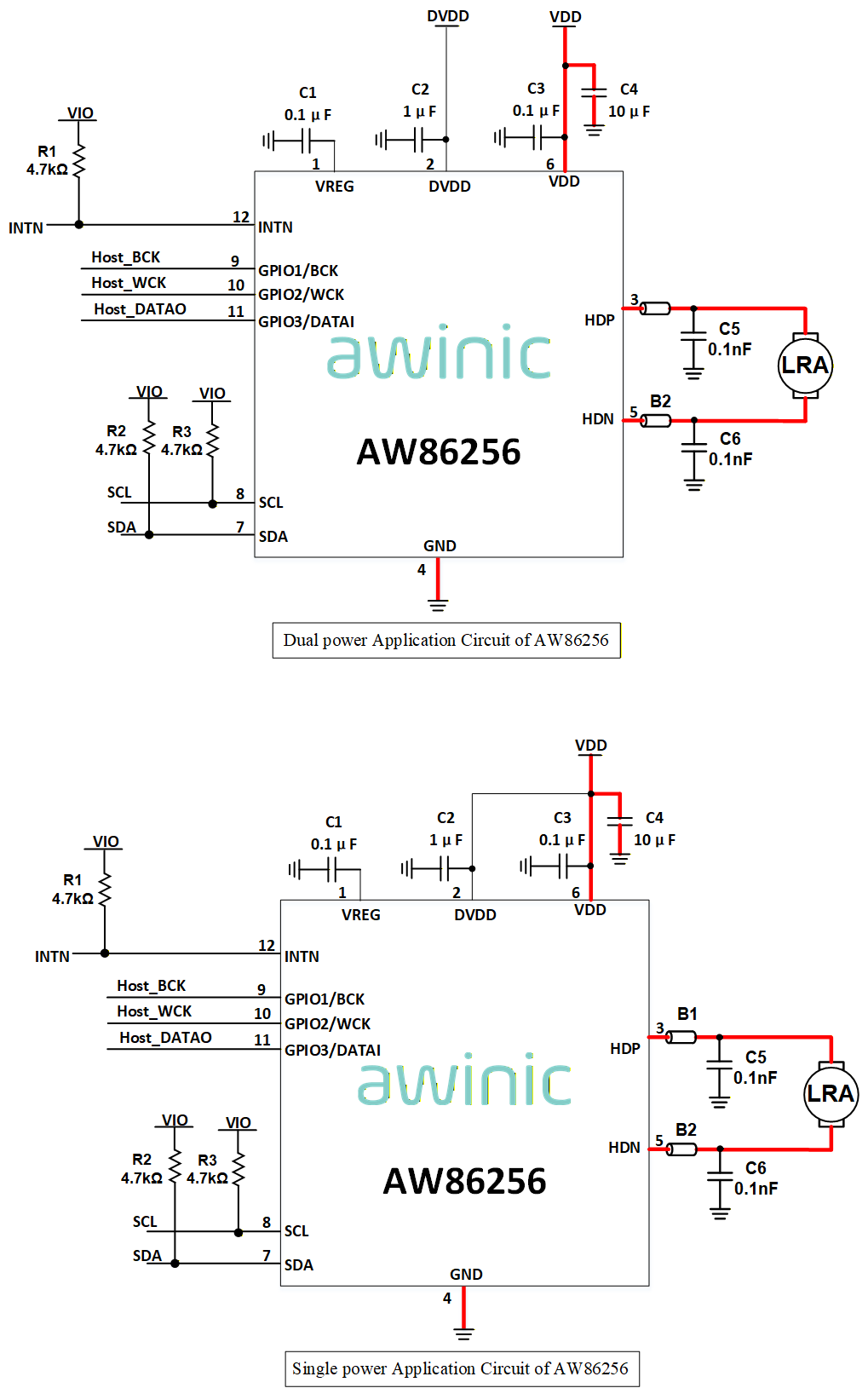

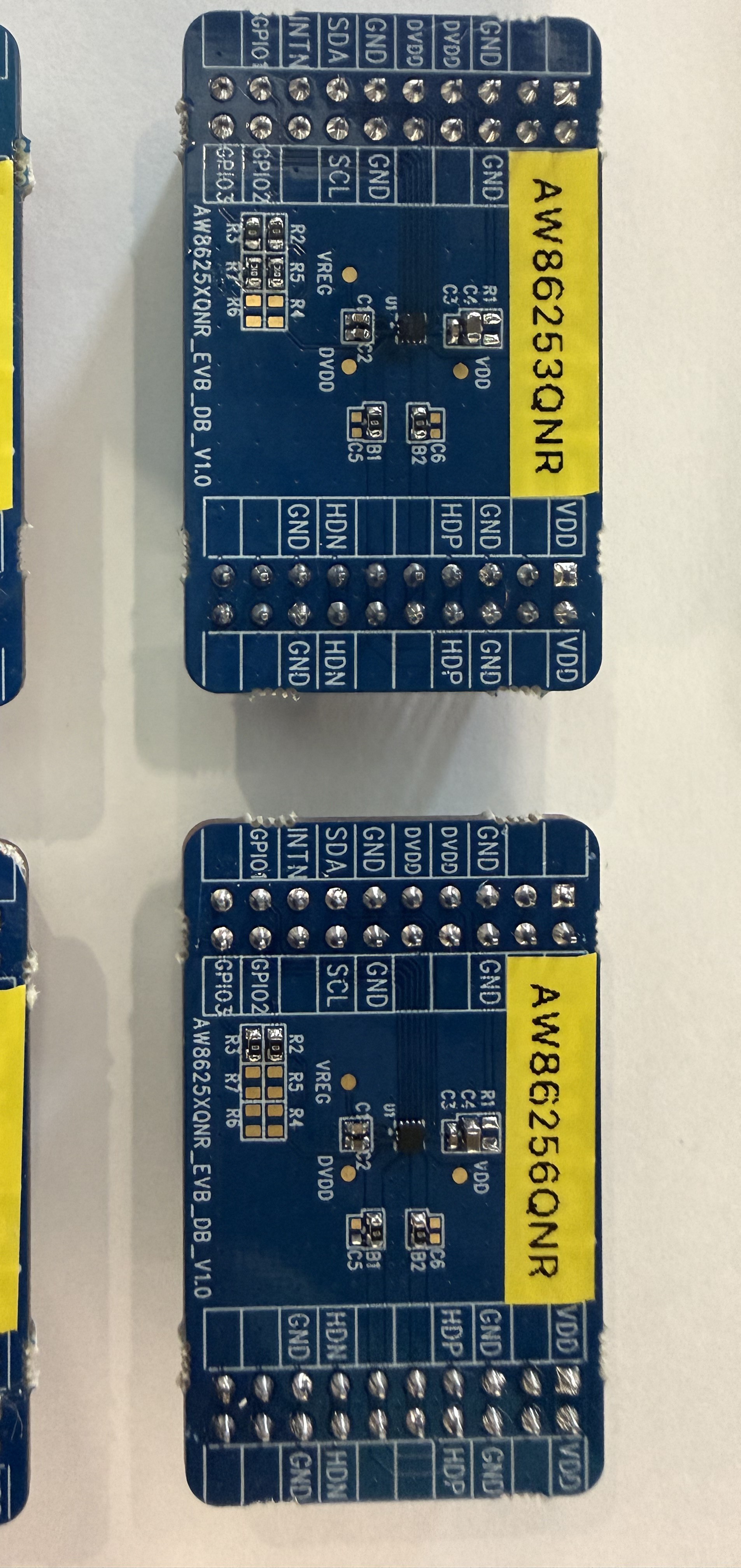

AW86256 is a low cost H-bridge, single chip LRA haptic driver, with F0 detecting and tracking based on BEMF, supporting real time playback, memory playback, Cont playback, I2S/TDM playback ,and hardware pin trigged playback with fast start up time. All these make the AW86256 an ideal candidate for haptic driver.
AW86256 integrates a 4KByte SRAM for user-defined waveforms to achieve a variety of vibration experiences, supporting 4 sampling rate(8k/12k/24k/48k) of waveforms loaded in SRAM, supporting output waveform sampling rate up-sampling to 48k.
AW86256 integrates an autobrake engine to suppress the aftershocks to zero for different drive waveforms (short or long) on different LRA motors.
AW86256 supports LRA fault diagnostic based on resistance measurement and protections of short-circuit, over-temperature and under-voltage.
AW86256 features configurable automatically switch to standby mode after haptic waveform playback finished. This can decrease quiescent power consumption. Interrupt output pin can detect real time FIFO status and the error status of the chip.
AW86256 features general settings are communicated via an I2C-bus interface.
