| Voltage Type |
Vbat |
| Vout (Max) (V) |
5.5 |
| SRAM (kB) |
3 |
| Istandby (μA) |
0.5 |
| IO Level (V) |
1.2
1.8
3.3 |
| AAE |
YES |
| Input Signal |
IIC
1TRIG |
| LRA Calibration |
LCC3.0 |
| Temperature |
-40℃~85℃ |
| TikTap |
YES |
| Package (mm) |
WLCSP 1.157X1.157-9B |
| WLCSP 1.157X1.157-9B(0.557) |
|
1MHz I2C Bus
Integrated 3K Memory
12k/24k/48k input wave sampling rate
F0 detect and tracking
Advance autobrake engine integrated
Playback mode:
Real time playback( autobrake inside)
Memory playback
1 Trigger playback
Cont playback
Resistance-Based LRA Diagnostics
Drive signal monitor for LRA protect
Drive Compensation Over Battery Discharge
Fast Start Up Time: 0.4ms
Dedicated interrupt output pin
Support automatically switching to standby mode
Standby current 2uA@DVDD 0.5uA@VDD
Supply voltage range 2.7V to 5.5V
Short-Circuit Protection, Over-Temperature Protection, Under-Voltage Protection
AW86246ACSR include Immersion IP license for mobile phones and wearables. All information is same with AW86246CSR except Immersion IP license
WLCSP 1.157mmX1.157mmX0.557mm-9B Package

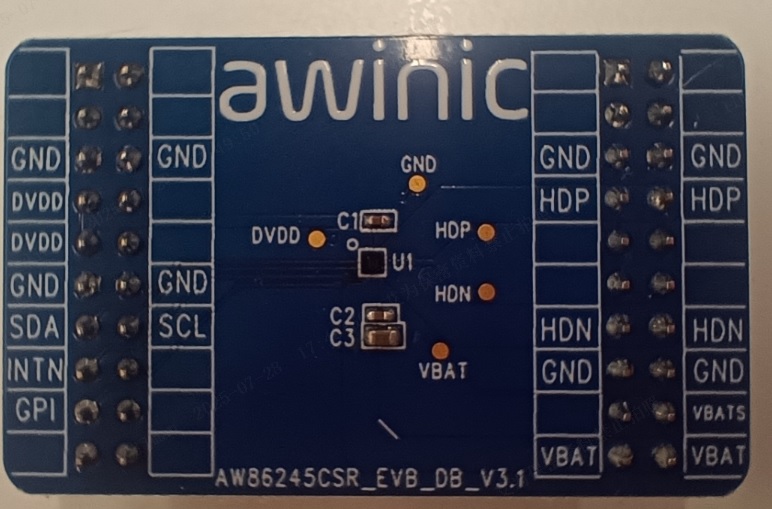

AW86246 is a low cost H-bridge, single chip LRA haptic driver, with F0 detecting and tracking based on BEMF, supporting real time playback, memory playback, Cont playback, and hardware pin trigged playback with fast start up time. All these make the AW86246 an ideal candidate for haptic driver.
AW86246 integrates a 3KByte SRAM for user-defined waveforms to achieve a variety of vibration experiences, supporting 3 sampling rate(12k/24k/48k) of waveforms loaded in SRAM, supporting output waveform sampling rate up-sampling to 48k.
AW86246 integrates an autobrake engine to suppress the aftershocks to zero for different drive waveforms (short or long) on different LRA motors.
AW86246 supports LRA fault diagnostic based on resistance measurement and protections of short-circuit, over-temperature and under-voltage.
AW86246 features configurable automatically switch to standby mode after haptic waveform playback finished. This can decrease quiescent power consumption. Interrupt output pin can detect real time FIFO status and the error status of the chip.
AW86246 features general settings are communicated via an I2C-bus interface.
