特性
1MHz I2C 总线
集成 3K 存储器
12k/24k/48k 输入波形采样率
F0 检测与跟踪
集成先进自动刹车
播放模式：
实时播放
存储器播放
触发播放
连续播放
基于电阻检测的LRA诊断
驱动信号监测以保护LRA
电池放电期间的驱动补偿
快速启动时间：0.4ms
专用中断输出引脚
支持自动切换至待机模式
待机电流：3uA
关断电流：＜1uA
电源电压范围3至5.5V
短路保护、过温保护、欠压保护
AW86214AQNR（注 1）包含用于手机、可穿戴设备、家用电器、家庭电子设备的Immersion IP 许可
AW86214NQNR（注 1）包含用于电脑的 Immersion IP许可

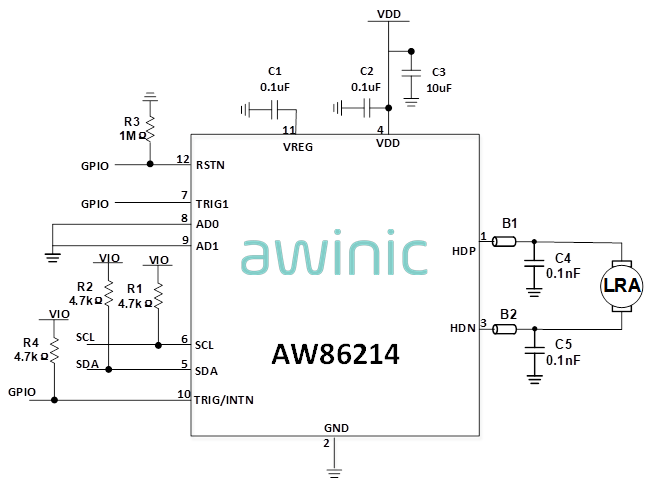

说明
AW86214 is a low cost H-bridge, single chip LRA haptic driver, with F0 detecting and tracking based on BEMF, supporting real time playback, memory playback, CONT, and hardware pin trigged playback with fast start up time. All these make the AW86214 an ideal candidate for haptic driver.
AW86214 integrates a 3KByte SRAM for user-defined waveforms to achieve a variety of vibration experiences, supporting 3 sampling rate(12k/24k/48k) of waveforms loaded in SRAM, supporting output waveform sampling rate up-sampling to 48k.
AW86214 integrates an autobrake engine to suppress the aftershocks to zero for different drive waveforms (short or long) on different LRA motors.
AW86214 supports LRA fault diagnostic based on resistance measurement and protections of short-circuit, over-temperature and under-voltage.
AW86214 features configurable automatically switch to standby mode after haptic waveform playback finished. This can less quiescent power consumption. The RSTN pin provides further power saving by fully shut down the whole device. Dedicated interrupt output pin can detect real time FIFO status and the error status of the chip.
AW86214 features general settings are communicated via an I2C-bus interface.
AW86214 is available in a QFN 2mmX2mmX0.5mm-12L package.
