AW86026CSR

High-precision VCM Close Loop IC

产品手册：

在线预览 - AW86026CSR - 产品手册在线预览 - AW86026CSR - 产品手册

产品详细信息

参数

Actuator Type	CL AF
Output I(mA)	150
VDD (Max) (V)	3.6
VDD (Min) (V)	1.7
I2C (Hz)	100K 400K 1M 3.4M
I2C Addr	0x6A
IQ (mA)	6.5
ISD (μA)	20
Temperature	-40℃~85℃
Control Mode	Close loop
ADC (bit)	16
Package (mm)	WLCSP 1.50X0.86-6B

封装 | 引脚 | 尺寸

WLCSP 1.50X0.86-6B

特性

Supply Voltage : 2.6V to 3.6V Dynamic Voltage Range : 1.7V to 3.6V 2-wire Serial Interface ♦ Support Private / Multi-cast Communication ♦ Support 1.2V/1.8V I2C Interface ♦ Support I2C Frequency Up to 3.4MHz ♦ Support I3C Frequency Up to 6.25MHz ♦ Support Automatic Static Address Recognition Up to 4 Chips Built-in Constant Current Driver ♦ ±150mA Current (default) ♦ Optional current: ±200 mA ♦ 13-bit DAC Built-in Hall Sensor ♦ Si Hall Sensor ♦ Support Hall Sensor Calibration Built-in A/D converter ♦ 16-bit Resolution ♦ Support Temperature and Hall Sampling Built-in 2K Bytes e-Flash, 16 Bytes free access memory, 1.4K bytes for user. Built-in PID Controller ♦ Support Multi-scenes Application Support Linearization Calibration

说明

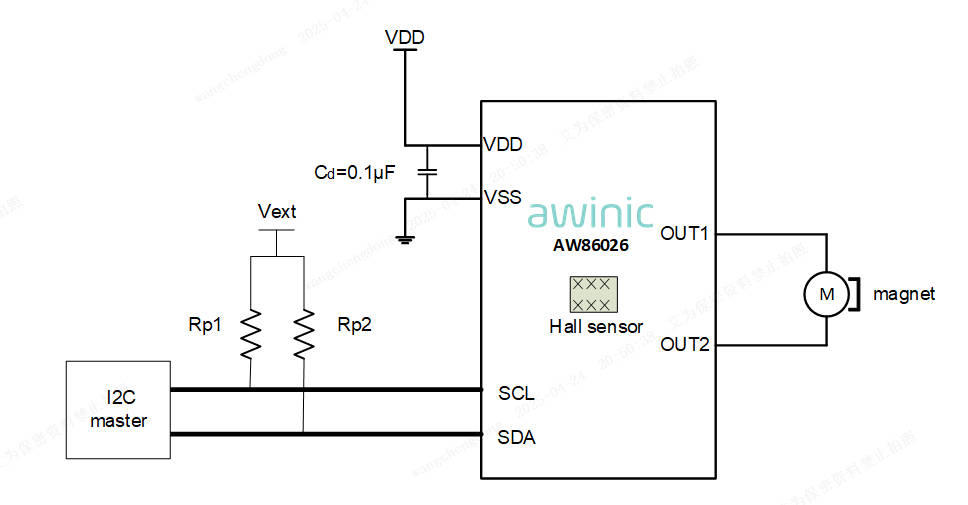

General Description 1. AW8602X is a Bi-directional voice coil motor close loop driver chip, which integrates a constant current driver. 2. The AW8602X slave address can be configures by eFlash. The default address is 0xD4 (7-bit 0x6A). 3. AW8602X integrates hall sensor. The hall sensor contains - temperature correction algorithm and offset cancel circuit. 4. AW8602X integrated PID controller and digital filter circuit, the coefficients of PID and filter circuit are float point. These coefficients can be configured in two ways: 1) automatically loaded (Auto-load), 2) I2C/I3C configuration. 5. AW8602X contains Flash and Cache. Flash storage area size is 1.4K bytes for user.

技术文档

类型	项目标题	语言	日期
产品手册	PB_AW8602X_EN_V1.0	中文	2024-08-09
产品设计指南	AW86026CSR Hardware Design Guide	英文	2025-04-29
Checklist	CL_A2324_AW8602X_Customer_CN_V1.0	中文	2026-03-19
产品应用手册	AW86026CSR应用指南	中文	2026-06-25
产品手册	DS_AW86026_EN_V1.2	英文	2026-06-30
