| Control Interface |
IIC |
| Temperature |
-40℃~85℃ |
| DSP |
YES |
| Noise (μV) |
34uVrms @LLM mode |
| PO(W)（8&THD=1%） |
2×33W@8Ω, 24V, THD+N<1% in BTL mode |
| PO(W)（4&THD=1%） |
1×65W@4Ω, 24V, THD+N <1% in PBTL mode |
| IO Supply (Max) (V) |
3.63 |
| IO Supply (Min) (V) |
1.62 |
| Digital Supply (Max) (V) |
3.63 |
| Digital Supply (Min) (V) |
1.62 |
| Power Supply (Max) (V) |
26.4 |
| Power Supply (Min) (V) |
4.5 |
| IV Sense |
NO |
| Loadmin（Ω) |
2 |
| Channel |
2 |
Integrates SKTune Algorithm：Smart Protection (Anti-chip Voltage Limiter Thermal Limiter, Excursion Limiter and Auto Voltage Monitor)、Input Mixer, Output Crossbar、2x15 Parametric Equalizers (EQ)、Dynamic Equalizer Enhancement (DEE)、Sound Field Expansion (SFE)、Multi-band Dynamic Range Control 、Awinic Sound Enhancement (ASE)、Virtual Bass Enhancement (VBE)
Output Power：2×33W@8Ω, 24V, THD+N<1% in BTL mode ，1×65W@4Ω, 24V, THD+N <1% in PBTL mode
Excellent Audio Performance：THD+N≤0.02%@8Ω,1 W,1 kHz,PVDD = 12 V、SNR≥110dB@8Ω,1%,1 kHz,PVDD = 24 V, A-weighted、Noise Level < 34uVrms @LLM mode、Noise Level < 28uVrms @Low Noise Enable
High-efficiency Class-D Amplifier：Power efficiency 90%, RDSon 110mΩ、Low quiescent current < 18 mA 、Supports Low-Loss Mode
I2S/TDM interface ：I2S, Left-Justified and Right-Justified、Supports 1/2/4/6/8 Su7lots TDM、Supports 32k,44.1k,48k,88.2k,96k,192kHz Sample Rates、Data Width: 16, 20, 24, 32 Bits、
I2C-bus control interface(1MHz)、Extensive Pop-Click Suppression、Volume control (from -96dB to 0dB)、
Multiple switching frequencies：AM/FM avoidance、Supports 384kHz、480kHz、576kHz、768kHz、960 kHz、1200kHz switching frequencies、Support Spread Spectrum to Enhance EMI Performance
Power Supplies ：PVDD: 4.5V~26.4V、DVDD: 1.8V/3.3V
Integrated Self-Protection：Over-Current Protection (OCP)、Over-Temperature Protection (OTP)、Over / Under-Voltage Lock-out (OVLO/UVLO)、DC-detect and short-circuit protection
ETSSOP-28L Package

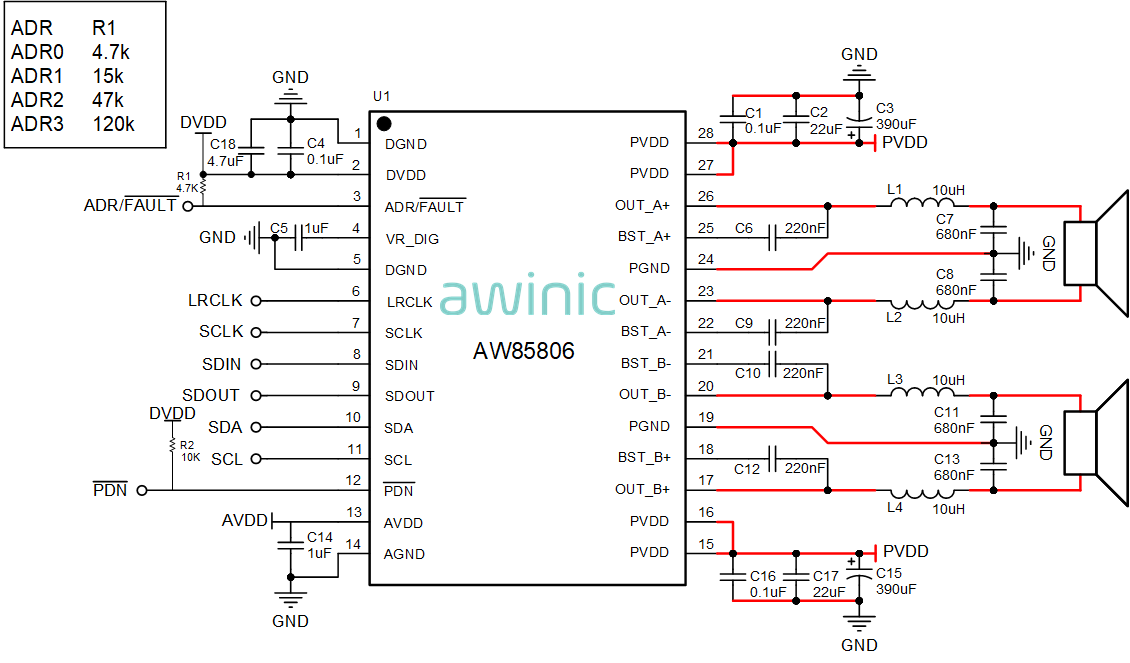

The AW85806 is a high-efficiency, stereo digital class D audio amplifier with low power dissipation and sound enrichment.
The device employs a multiple switching frequency option and Spread Spectrum technology to enhance EMI performance, avoid AM/FM interferences. And it supports Multichip synchronization and channel phase shift.
The AW85806 integrates SKTune algorithm that includes parametric audio path equalizer, dynamic range control, anti-clip voltage limiter and smart protection, etc. The SKTune algorithm maximizes speaker performance while maintaining safe working conditions.
The AW85806 supports Over-Current Protection, Over-Temperature Protection, DC Protection, Under-Voltage/Over-Voltage Protection, short-circuit Protection to protect the device.
AW85806 is available in a ETSSOP-28L Package.
