AW85180SFCR

产品手册：

在线预览 - AW85180SFCR - 产品手册

参考价格

1-99￥32.69
100-249￥26.81
250-499￥21.57
500-999￥17.00
1000+￥13.08

产品详细信息

参数

Control Interface	IIC
Temperature	-40℃~105℃
DSP	YES
Noise (μV)	28
PO(W)（8&THD=1%）	15
PO(W)（4&THD=1%）	30
IO Supply (Max) (V)	3.63
IO Supply (Min) (V)	1.62
Digital Supply (Max) (V)	1.98
Digital Supply (Min) (V)	1.62
Power Supply (Max) (V)	23
Power Supply (Min) (V)	2.7
IV Sense	YES
Loadmin（Ω)	3.2
Channel	1

封装 | 引脚 | 尺寸

FCQFN 4X3.5-30L

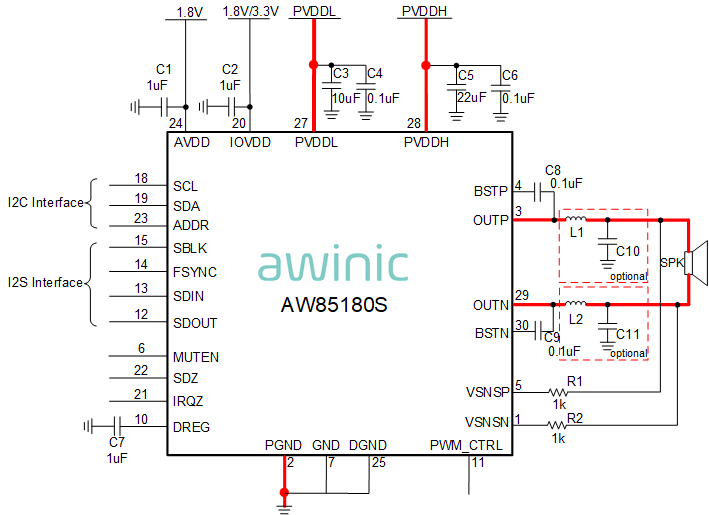

特性

Key Features Integrated DSP for Audio Processing 23V supply for Class-D Output Stage PSM Multi-Level Supply Architecture PTC External Boost Control Algorithm Ultrasonic Output Support up to 40kHz Output Power 30W@4Ω, 18V, THD+N<1% High-efficiency Class-D Amplifier PSM ON 81% at 0.5W,4Ω, PVDDH=18V, PVDDL=5V 84% at 1W,4Ω, PVDDH=18V, PVDDL=5V High-efficiency Class-D Amplifier PSM OFF 80% at 1W, 4Ω, PVDDH=18V, PVDDL=5V 89% at 10W, 4Ω, PVDDH=18V, PVDDL=5V 90% at 20W, 4Ω, PVDDH=18V, PVDDL=5V Interface and Control I2S/TDM:8 Channels of 32 bits up to 96ksps Data Width: 16, 20, 24, 32 bits 32kHz to 192kHz Sample Rates Advanced DSP Audio Processing Real-time IV-Sense for Speaker Protection Nonlinear Excursion Compensation(NEC) Piano Noise Suppression Dynamic Equalizer Enhancement (DEE) Transient Control (TRC) Auto Power Save (APS) Protection and EMI: Over Power and Low Battery Protection PVDDH/PVDDL Supply Tracking Limiters Thermal and Over Current Protections Thermal Foldback Slew Rate Control Power Supplies PVDDH: 3V~23V PVDDL: 2.7V~5.5V AVDD: 1.8V IOVDD: 1.8V/3.3V Integrated Self-Protection Over-Current Protection (OCP) Over-Temperature Protection (OTP) Over/Under-Voltage Lock-out (OVLO/UVLO) Cycle by Cycle (CBC) DC-detect and Short-circuit Protection FCQFN 3.5mmX4mm-30L Package

技术文档

	类型	项目标题		语言		日期
	产品手册	DS_AW85180SFCR_EN_V1.1		英文		2026-07-14

设计和开发

如需其他信息或资源，请查看下方列表，点击标题即可进入详情页面。

软件开发

应用软件和框架

AW85180S_GUI — AW85180SFCR 产品调试GUI插件

AW85180SFCR 产品调试GUI插件。需要安装AwinicSCPV4使用。

了解详情

应用软件和框架

AwinicSCPV4_GUI — AwinicSCPV4 智能化调试工具

AwinicSCPV4 是一款智能化调试工具，专为艾为产品设计，用于产品的配置和调试过程。直观的界面和人性化的操作可帮助客户缩短开发周期，快速的完成系统集成。
