AW8055BMPR

Non-Crack-Noise, Ultra-Low-THD+N, Ultra-Low-EMI,Second Generation Class-D Audio Amplifier

产品手册：

在线预览 - AW8055BMPR - 产品手册

参考价格

1-99￥3.27
100-249￥2.68
250-499￥2.16
500-999￥1.70
1000+￥1.31

产品详细信息

参数

Power Supply (Min) (V)	2.5
Power Supply (Max) (V)	5.5
PO(W)（8Ω&THD=1%）	1.2W@5V
SPK Noise(uV)	mode1：56uV@8V/V <br>mode2：79uV@12V/V<br>mode3：95uV@12V/V
Protection	NCN
Control Interface	one-wire
Temperature	-40℃~85℃
Package (mm)	EMSOP-8L

封装 | 引脚 | 尺寸

MSOP-8L

特性

Ultra low THD+N:0.007%
Output Power：
2.6W@10%THD, RL=4Ω+33uH，VDD=5V
2.1W@1%THD, RL=4Ω+33uH，VDD=5V
AB/D operate mode
Two NCN level：0.65w and0.85w
Unique RNS
High SNR:95dB
EEE Function, Greatly reduces EMI over the full bandwidth
Excellent Pop-Click Suppression
Pin compatible with AW8055 AW8056B
One-pulse control
Filter-Free Class-D Architecture
High PSRR (75dB at 217Hz)
Low Shutdown Current (<0.1uA)
Power Supply Range: 2.5V~5.5V
Over-Current Protection
Over-Temperature Protection
MSOP-8LPackage

说明

The AW8055B is a non-crack-noise (NCN), ultra-low-EMI, filter-free, AB/D output mode selection, unique RNS technology, second generation Class-D audio amplifier. Ultra low THD+N, Unique NCN function, which adjusts the system gain automatically while detecting the “Crack” distortion of output signal, protects the speaker from damage at high power levels and invites the user to bask in immense musical enjoyment.
AW8055B NCN output power can be set to 0.65w in 0.85w for different speakers, this feature is embedded in order to protect speakers from damage caused by an excessive sound level.
The AW8055B features a unique RNS tech-nology, which effectively reduces RF energy, attenuate the RF TDD-noise, an acceptable audible level to the customer.
The AW8055B features the EEE (Enhanced Emission Elimination) function which greatly reduces EMI over the full bandwidth. The AW8055B achieves better than 20dB margin under FCC limits with 24 inch of cable.
The filter-free PWM architecture and internal gain setting reduces external components count, board area consumption, system cost and simplifies the design. The over-current, over-temperature is prepared inside of the de-vice.
The AW8055B is available in a MSOP-8L Package. The AW8055B is specified over the industrial temperature range of -40℃ to +85℃.

技术文档

类型	项目标题	语言	日期
产品设计指南	AW8055BMPR硬件参考设计指南	中文	2023-05-30
产品手册	DS_AW8055B_EN_V1.1	英文	2023-05-04
Checklist	CL_XX客户_XX项目_AW8055B_Customer_CN_V1.0	中文	2026-02-02

设计和开发

如需其他信息或资源，请查看下方列表，点击标题即可进入详情页面。

硬件开发

评估板

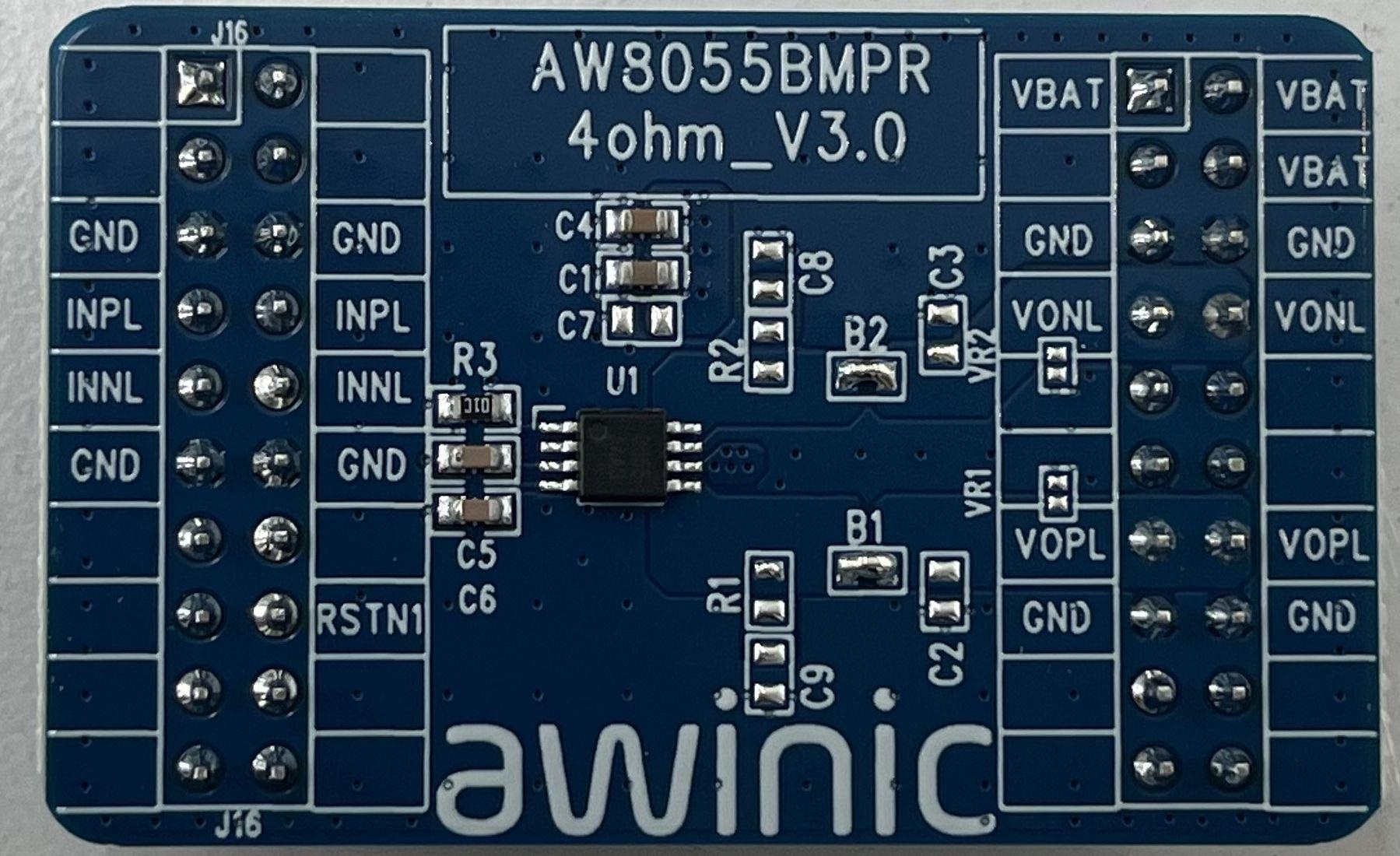

AW8055BMPR_4ohm_V3.0 — 适用于模拟音频功放AW8055B 应用的专用EVB板
