AW5015DNR

Ultra-Low Noise Amplifier for Global Navigation

产品手册：

在线预览 - AW5015DNR - 产品手册

您可能感兴趣的替代产品

比较替代产品

AW15245DNR

Ultra-Low Noise Amplifier for Global Navigation
Satellite Systems (GNSS)

产品详细信息

参数

Frequency (GHz)	1.55-1.61
VCC (Min) (V)	1.5
VCC (Max) (V)	3.6
Gain(dB)	17.3
NF(dB)	0.9
Icc (mA)	9.1
Temperature
P1dB (dBm)	-8.7
Package (mm)	DFN 1.1X0.9-6L

封装 | 引脚 | 尺寸

WBDFN 1.1X0.9-6L(0.45)

特性

• Reduce RF environment Interference with patented Smart-Linearity-Technology (SLT); • Ultra low noise figure(NF)=0.90dB; • High power gain=17.3dB; • High linearity IIP3oob=+2.8dBm; • High input 1dB-compression point=-8.7dBm; • Requires only one input matching inductor; • RF output internally matched to 50 ohm; • Supply voltage: 1.5V to 3.6V; • Operating frequencies: 1550~1615MHz; • Slim DFN-6L package:1.1mmX0.9mmX0.45mm; • 3000V HBM ESD protection (including RFIN and RFOUT pin);

说明

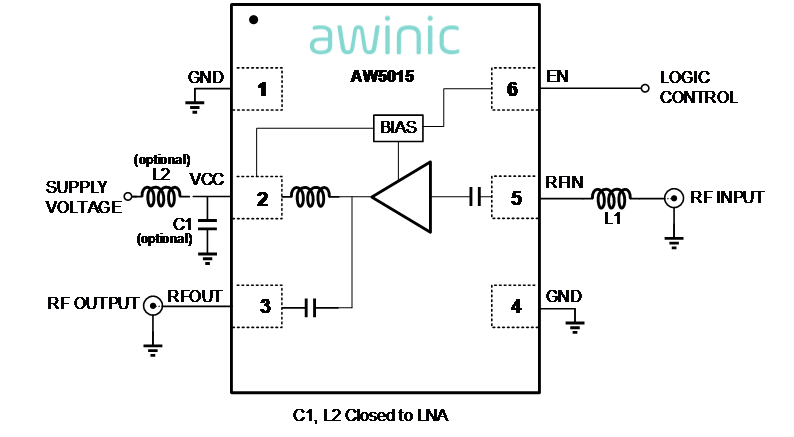

The AW5015 is a Low Noise Amplifier designed for Global Navigation Satellite Systems (GNSS) as GPS, GLONASS, Galileo and Compass. With on-chip DC blocking capacitors at RFIN and RFOUT, The AW5015 can be close to the antenna, requires only one external input matching inductor, and reduces assembly complexity and the PCB area, enabling a cost-effective solution. The AW5015 with patented Smart Linearity Technology (SLT) achieves ultra-low noise figure, high linearity, high gain, over a wide range of supply voltages from 1.5V up to 3.6V. All these features make AW5015 an excellent choice for GNSS LNA as it improves sensitivity with low noise figure and high gain, provides better immunity against out-of-band jammer signals with high linearity, reduces filtering requirement of preceding stage and hence reduces the overall cost of the GNSS receiver. The AW5015 is available in a small lead-free, RoHS-Compliant, 1.1mm x 0.9mm x 0.45mm 6-pin DFN package.

技术文档

	类型	项目标题		语言		日期
	产品手册	DS_AW5015_EN_V1.7_Ultra-Low Noise Amplifier for GNSS		英文		2020-12-16
	技术帖	一文看懂GNSS全球导航卫星系统		中文		2024-08-19
