AW5007ASTR

FM Low-Noise-Amplifier ｉｎ Alliance with Internal Antenna

产品手册：

在线预览 - AW5007ASTR - 产品手册

参考价格

1-99￥0.38
100-249￥0.32
250-499￥0.25
500-999￥0.20
1000+￥0.15

产品详细信息

参数

Frequency (GHz)	0.064~0.11
VCC (Min) (V)	1.5
VCC (Max) (V)	3.6
Gain(dB)	21
NF(dB)	1.2
Icc (mA)	9.2
Temperature	-40℃~85℃
P1dB (dBm)	-20
Package (mm)	SOT363-6L

封装 | 引脚 | 尺寸

SOT363-6L

特性

1. Without any earphone or telescopic antenna, receive FM-radio signal through re-using GSM antenna
2. Ultra-low noise-figure: 1.2dB
3. Standard CMOS process technology
4. High power gain of 21dB under 2.8V supply
5. High linearity
6. EN supports 1.8V / 2.8V GPIO
7. Supply voltage: 1.5V~3.6V
8. Shut-down current: <0.1μA
9. Slim 2.1×2.3×1 mm3 SOT363-6L package

说明

1. AW5007A is a Low-Noise-Amplifier (LNA), without earphone in telescopic antenna, re-using GSM antenna to receive FM-radio signal.
2. AW5007A is characterized with low noise, high gain and high linearity. Typical noise figure is 1.2dB and power gain is 21dB.
3. AW5007A is powered by 1.5V~3.6V supply with typical 2.8V. EN supports 2.8V / 1.8V GPIO input.
4. AW5007A integrates RF radio switch inside, implementing high impedance under shut-down condition. Shut-down current is less than 0.1μA.
5. AW5007A is available in slim 2.1mm×2.3mm×1mm SOT363-6L package. The specified operating free- air temperature ranges from -40℃ to 85℃.

技术文档

	类型	项目标题		语言		日期
	产品手册	DS_AW5007ASTR_EN_V1.3		英文		2023-06-06
	Checklist	CL_客户_项目_AW5007A_Customer_CN_V1.0		中文		2026-02-02

设计和开发

如需其他信息或资源，请查看下方列表，点击标题即可进入详情页面。

硬件开发

评估板

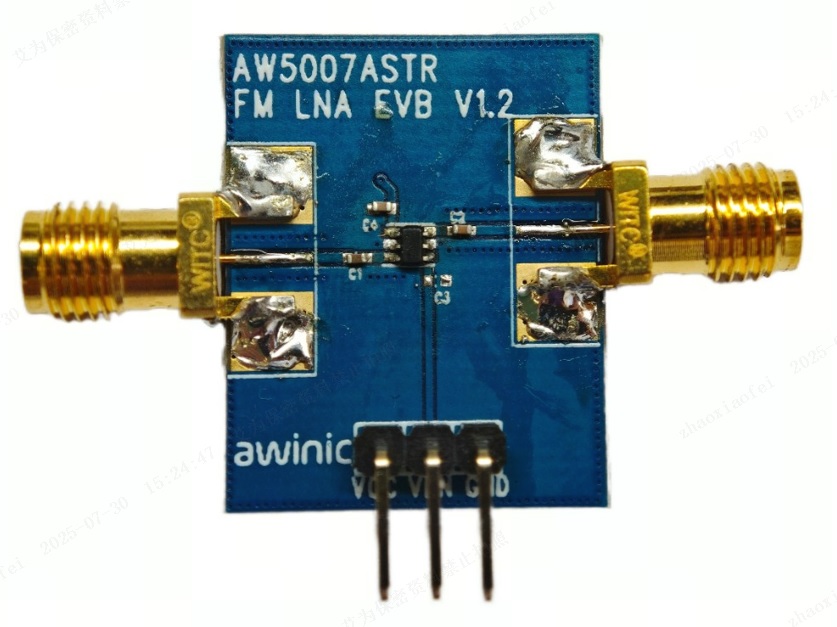

AW5007ASTR FM LNA EVB V1.2 — 该款EVB用于AW5007A的S参数、噪声等性能评估。
