AW39214SPR

4-Bit Bidirectional Voltage-Level Translator with Automatic Direction Sensing

产品手册：

在线预览 - AW39214SPR - 产品手册

参考价格

1-99￥5.38
100-249￥4.41
250-499￥3.55
500-999￥2.80
1000+￥2.15

产品详细信息

参数

Data Rate (Max) (Mbps)	100
VCCA (Min) (V)	1.2
VCCA (Max) (V)	3.6
VCCB (Min) (V)	1.65
VCCB (Max) (V)	5.5
ICCA+ICCB (Max) (μA)	30
Channel	4
Support	Push-Pull
Temperature	-40℃~125℃
Transmission Direction	Auto
Package (mm)	TSSOP-14L

封装 | 引脚 | 尺寸

TSSOP-14L

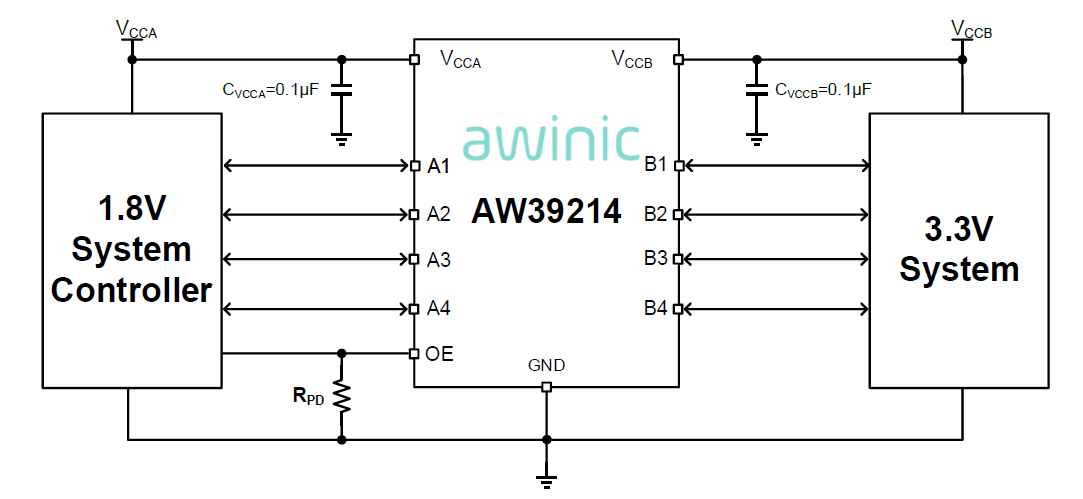

特性

1.2V~3.6V on A Port and 1.65V~5.5V on B Port(VCCA ≤ VCCB) Maximum Data Rates:100Mbps(Push Pull) This Device Can Only Translate Push-pull CMOS Logic Outputs No Direction-Control Signal Required VCC Isolation Feature – If Either VCC Input is at GND, All Output are in the High-Impedance State OE Input Circuit Referenced to VCCA Low Power Consumption,30uA Maximum ICC Support Ultra-Low Power Consumption Mode with OE Pin is Low Voltage Level Extended Temperature: -40°C to +125°C

技术文档

类型	项目标题	语言	日期
产品设计指南	AW39214 硬件设计指南	中文	2024-04-10
产品设计指南	AW39214 Hardware Design Guide	英文	2026-04-13
产品手册	DS_AW39214_EN_V1.1	英文	2026-04-15
