AW37418ACSR

6MHz，750mA 超小型降压转换器

产品手册：

在线预览 - AW37418ACSR - 产品手册在线预览 - AW37418ACSR - 产品手册

参考价格

1-99￥5.00
100-249￥4.10
250-499￥3.30
500-999￥2.60
1000+￥2.00

产品详细信息

参数

Power Supply (Min) (V)	2.7
Power Supply (Max) (V)	5.5
IQ (μA)	45
Load Current (Max) (A)	0.75
Vout (Min) (V)	0.9
Vout (Max) (V)	1.1
Control Interface	/
EMI Optimization	NO
Temperature	-40℃~85℃
Special Function	PWM
Package (mm)	WLCSP 0.968X0.888-5B

封装 | 引脚 | 尺寸

WLCSP 0.968X0.888-5B

特性

重载下 6MHz 开关频率自动 PFM/PWM模式 – AW37418A/B/C 强制 PWM – AW37419A/B/C 输出电压 0.9V – AW37418A, AW37419A 0.95V – AW37418B, AW37419B 1.1V – AW37418C, AW37419C 轻载下 45μA PFM 静态电流 – AW37418A 750mA 输出电流能力 1.5A 电感逐周期限流保护 <0.1uA 关断电流允许使用 0805 封装的小型贴片电感 WLCSP 0.968mm × 0.888mm - 5B 封装

说明

AW37418/9 series are 6MHz DC-DC step-down converters with extremely small package. The AW37418 works in three operation modes. At heavy load, the device operates in 6MHz fixed frequency PWM mode. At light load, the AW37418 enters peak-current-control PFM mode automatically to reduce the switching losses. In PFM mode, the quiescent current consumed by the part is reduced to 45μA for the purpose to extend the battery life. The AW37419A works in forced PWM mode which can achieve extremely low output ripple throughout the load. The device is off in Shutdown mode and reduces the supply current to 0.1μA(typical). AW37418/9 series are available in WLCSP-5B 0.968mm × 0.888mm -5B Packages. The high switching frequency 6MHz allows the use of the economic size-saving external components, two ceramic capacitors and one 0.47μH inductor are required.

技术文档

类型	项目标题	语言	日期
产品设计指南	AW37418X_9X 硬件设计指南	中文	2026-03-04
产品手册	DS_AW37418A_8B_8C_9A_9B_9C_CN_V1.2	中文	2026-08-24
产品手册	DS_AW37418A_8B_8C_9A_9B_9C_EN_V1.2	英文	2026-08-24
技术帖	【技术贴】DC/DC的FB引脚作用详解	中文	2024-07-05

设计和开发

如需其他信息或资源，请查看下方列表，点击标题即可进入详情页面。

硬件开发

评估板

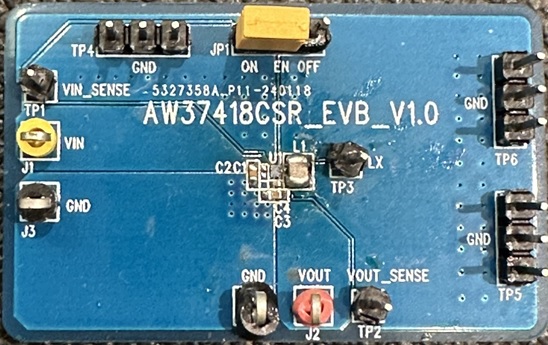

AW37418CSR_EVB_V1.0 — AW37418CSR_EVB_V1.0是艾为6MHz 750mA降压转换器演示板，可实现对于DCDC降压转换器的各种指标测试和功能演示。

6MHz 750mA降压转换器EVB评估主板

了解详情

硬件开发

评估板

AW37418CSR_EVB_V1.0 — AW37418CSR_EVB_V1.0是艾为6MHz 750mA降压转换器演示板，可实现对于DCDC降压转换器的各种指标测试和功能演示。

6MHz 750mA降压转换器EVB评估主板
