AW3710D330STR

1A Low-Dropout Linear Regulator

产品手册：

在线预览 - AW3710D330STR - 产品手册

参考价格

1-99￥2.12
100-249￥1.73
250-499￥1.40
500-999￥1.10
1000+￥0.85

产品详细信息

参数

Load Current (Max) (mA)	1000
Power Supply (Min) (V)	1.9
Power Supply (Max) (V)	5.5
Vout (Min) (V)	1.2
Vout (Max) (V)	3.3
Iq (Typ) (μA)	85
Vdropout (mV)	240@1A,Vout=1.8V 155@1A,Vout=3.3V
PSRR @1KHz(dB)	82@30mA
Output Noise (μVrms)	26@30mA
Discharge	YES
Output options	Fixed ADJ
Temperature	-40℃~85℃
IO Level (V)	1.8
Package (mm)	SOT89-5L

封装 | 引脚 | 尺寸

SOT89-5L

特性

Input voltage range: 1.9V to 5.5V Fixed outputs of 1.2V, 1.8V, 3.0V, 3.3V Rated output current: 1A Quiescent current: typical 85uA Typical 0.3uA shutdown current Typical 155mV dropout voltage at 1A load , VOUT=3.3V Power supply rejection ratio: typical 82dB (IOUT=30mA, freq=1kHz) Noise: typical 26uVrms (IOUT=30mA, BW=10Hz to 100kHz) Built-ｉｎ output short protection: typical 130mA when output short to ground Output auto discharge function SOT89 4.5mmX4.5mm-5L package

说明

AW3710DXXX is a low dropout voltage regulator featuring low ON resistance, high PSRR, low Noise, good load/line transient response and smooth soft-start.
AW3710DXXX integrates current limit, short circuit protection, thermal shutdown, sufficiently protecting IC from being damaged.Meanwhile AW3710DXXX integrates a reverse current protection circuit.

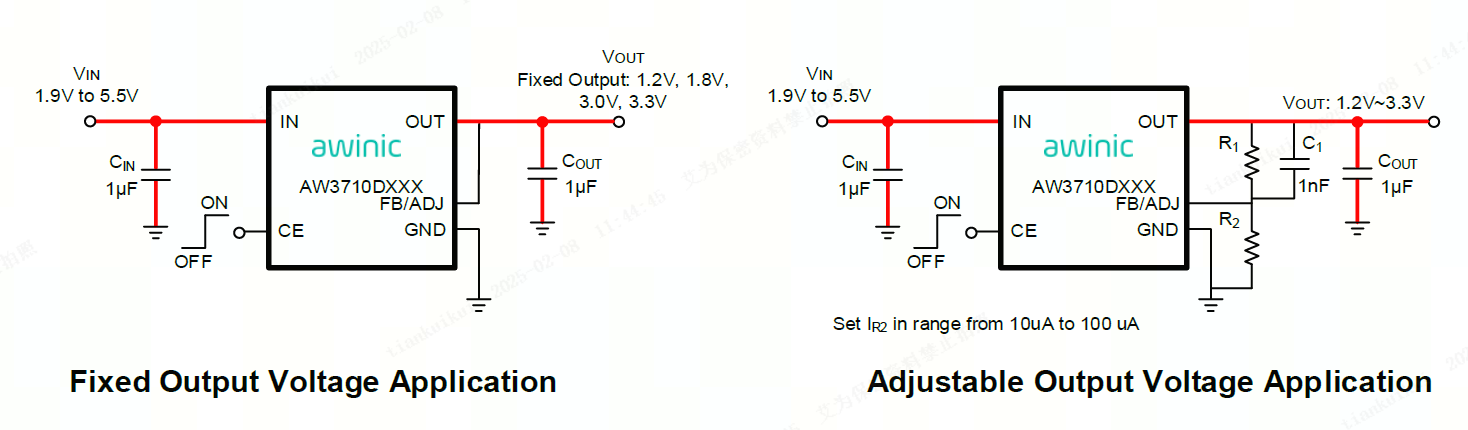

AW3710DXXX is designed to work with a 1uF in more input ceramic capacitor and a 1uF in more output ceramic capacitor. The low power dissipation and good dynamic response make AW3710DXXX very suitable for hand-held communication equipment. Tiny package makes high density mounting of the IC on boards possible.

技术文档

	类型	项目标题		语言		日期
	产品设计指南	AW3710DXXX硬件设计指南		中文		2023-05-29
	产品手册	DS_AW3710DXXX_EN_V1.2		英文		2025-02-18

设计和开发

如需其他信息或资源，请查看下方列表，点击标题即可进入详情页面。

硬件开发

评估板

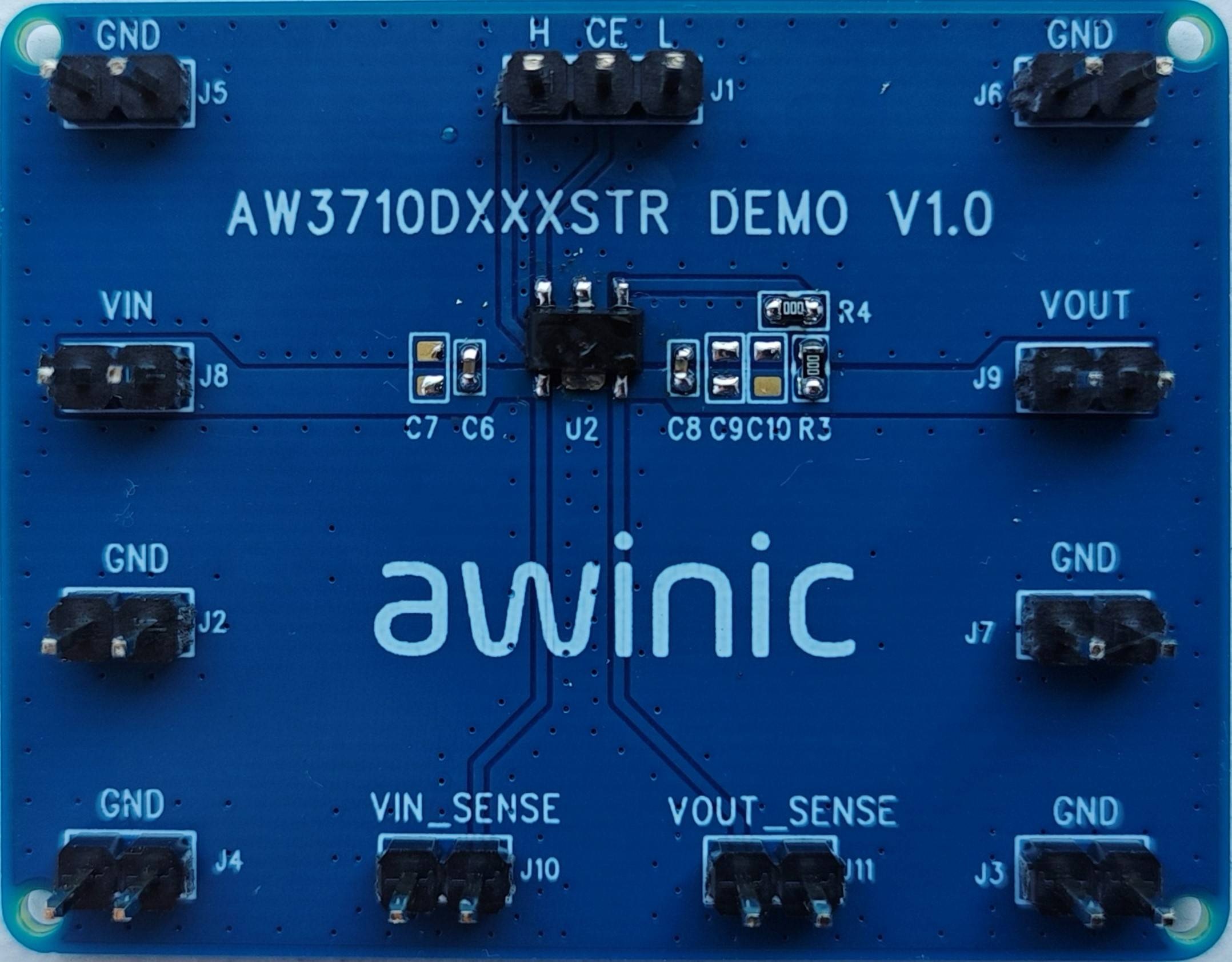

AW3710DXXXSTR DEMO V1.0 — AW3710DXXXSTR EVB是艾为一款低Dropout、高PSRR LDO测试板，芯片关键测试点均在EVB板上单独引出，方便测试

使用于LDO AW3710DXXX的EVB评估板

了解详情

硬件开发

评估板

AW3710DXXXSTR DEMO V1.0 — AW3710DXXXSTR EVB是艾为一款低Dropout、高PSRR LDO测试板，芯片关键测试点均在EVB板上单独引出，方便测试

使用于LDO AW3710DXXX的EVB评估板
