AW3707D300EDNR

产品手册：

在线预览 - AW3707D300EDNR - 产品手册

参考价格

1-99￥1.92
100-249￥1.58
250-499￥1.27
500-999￥1.00
1000+￥0.77

产品详细信息

参数

Load Current (Max) (mA)	1000
Power Supply (Min) (V)	1.6
Power Supply (Max) (V)	5.5
Vout (Min) (V)	3.0
Vout (Max) (V)	3.0
Iq (Typ) (μA)	140
Vdropout (mV)	149@IOUT=1A
PSRR @1KHz(dB)	70@IOUT=30mA
Output Noise (μVrms)	23@IOUT=30mA
Discharge	YES
Output options	Fixed
Temperature	-40℃~125℃
IO Level (V)	1.8
Package (mm)	DFN 1.6X1.2-8L

封装 | 引脚 | 尺寸

DFN 1.6X1.2-8L

特性

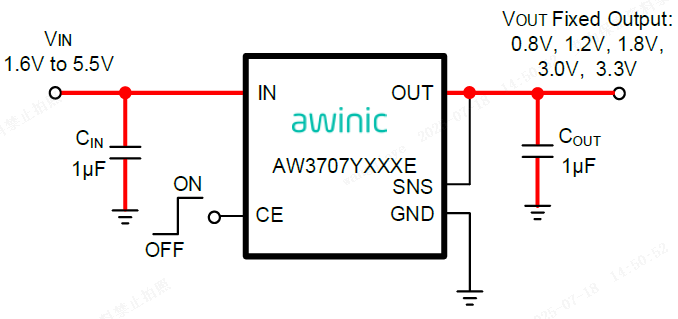

● Input voltage range: 1.6V to 5.5V ● Fixed output of 0.8V, 1.2V, 1.8V, 3.0V, 3.3V, Adjustable output of 0.8V~4.5V ● Rated output current: 1A, when VIN - VOUT(SET)>1V rated output current reduce to 750mA ● Quiescent current: typical 140μA ● Typical 0.3μA shutdown current ● Typical 141mV dropout voltage (IOUT=1A, 3.3V output) ● Power supply rejection ratio: typical 70dB (IOUT=30mA, freq=1kHz) ● Noise: typical 23μVrms (IOUT=30mA, BW=10Hz to 100kHz) ● Built-in output short protection: typical 130mA when output short to ground ● Output auto discharge function version available ● DFN 1.6mm×1.2mm×0.37mm-8L package

技术文档

	类型	项目标题		语言		日期
	产品手册	DS_AW3707YXXXE_EN_V1.3		英文		2025-07-22
