| Load Current (Max) (mA) |
1000 |
| Power Supply (Min) (V) |
1.6 |
| Power Supply (Max) (V) |
5.5 |
| Vout (Min) (V) |
1.8 |
| Vout (Max) (V) |
1.8 |
| Iq (Typ) (μA) |
140 |
| Vdropout (mV) |
269@IOUT=1A |
| PSRR @1KHz(dB) |
70@IOUT=30mA |
| Output Noise (μVrms) |
23@IOUT=30mA |
| Discharge |
YES |
| Output options |
Fixed |
| Temperature |
-40℃~125℃ |
| IO Level (V) |
1.8 |
| Package (mm) |
DFN 1.6X1.2-8L |
● Input voltage range: 1.6V to 5.5V
● Fixed output of 0.8V, 1.2V, 1.8V, 3.0V, 3.3V, Adjustable output of 0.8V~4.5V
● Rated output current: 1A, when VIN - VOUT(SET)>1V rated output current reduce to 750mA
● Quiescent current: typical 140μA
● Typical 0.3μA shutdown current
● Typical 141mV dropout voltage (IOUT=1A, 3.3V output)
● Power supply rejection ratio: typical 70dB (IOUT=30mA, freq=1kHz)
● Noise: typical 23μVrms (IOUT=30mA, BW=10Hz to 100kHz)
● Built-in output short protection: typical 130mA when output short to ground
● Output auto discharge function version available
● DFN 1.6mm×1.2mm×0.37mm-8L package
AW3707YXXXE is a low dropout voltage regulator featuring low ON resistance, high PSRR, low Noise, good load/line transient response and smooth soft-start.
AW3707YXXXE integrates current limit, short circuit protection, thermal shutdown, sufficiently protecting IC from being damaged. Meanwhile AW3707YXXXE integrates a reverse current protection circuit.

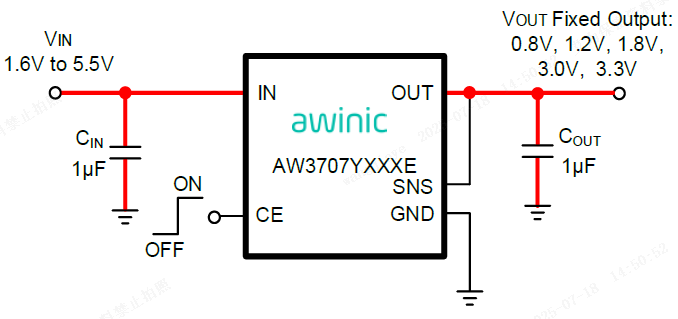

AW3707YXXXE is designed to work with a 1μF or more input ceramic capacitor and a 1μF or more output ceramic capacitor. The low power dissipation and good dynamic response make AW3707YXXXE very suitable for hand-held communication equipment. Tiny package makes high density mounting of the IC on boards possible.
