| Load Current (Max) (mA) |
500 |
| Power Supply (Min) (V) |
1.4 |
| Power Supply (Max) (V) |
5.5 |
| Vout (Min) (V) |
1.1 |
| Vout (Max) (V) |
1.1 |
| Iq (Typ) (μA) |
50 |
| Vdropout (mV) |
1001@500mA |
| PSRR @1KHz(dB) |
90@30mA,Vout=1.8V |
| Output Noise (μVrms) |
21@30mA,Vout=1.1V
33@30mA,Vout=1.8V
46@30mA,Vout=3.3V |
| Discharge |
YES |
| Output options |
Fixed |
| Temperature |
-40℃~85℃ |
| IO Level (V) |
1.8 |
| Package (mm) |
DFN 1X1-4L |
● Input voltage range: 1.4V to 5.5V
● Fixed outputs of 1.1V, 1.2V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
● Rated output current: 500mA
● Quiescent current: typical 50μA
● Typical 0.1μA shutdown current
● Typical 530mV dropout voltage(IOUT=500mA, 1.8V output)
● Power supply rejection ratio: typical 90dB (IOUT=30mA, freq=1kHz, 1.8V output)
● Noise: typical 33μVrms (IOUT=30mA, BW=10Hz to 100kHz, 1.8V output)
● Built-in output short protection: typical 150mA when output short to ground
● DFN 1mm×1mm×0.37mm-4L package and SOT 23-5L package

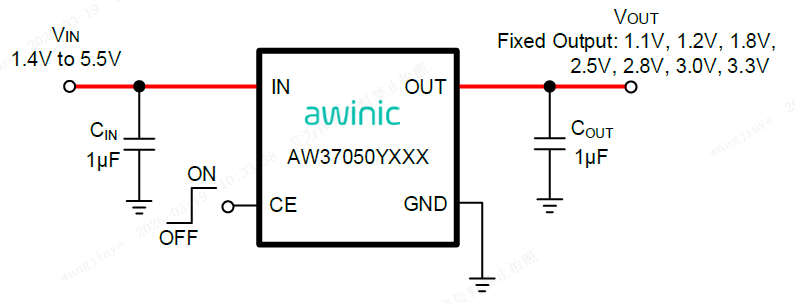

AW37050YXXX is a low dropout voltage regulator featuring low ON resistance, high PSRR, low Noise, good load/line transient response and smooth soft-start.
AW37050YXXX integrates current limit, short circuit protection, thermal shutdown, sufficiently protecting IC from being damaged.
AW37050YXXX is designed to work with a 1F or more input ceramic capacitor and a 1F or more output ceramic capacitor. The low power dissipation and good dynamic response make AW37050YXXX very suitable for hand-held communication equipment. Tiny package makes high density mounting of the IC on boards possible.
