| Control Interface |
GPIO |
| Current Limit (Typ) (A) |
4 |
| Load Current (Max) (A) |
1.5 |
| Vout (Min) (V) |
5.25 |
| Vout (Max) (V) |
5.25 |
| Output Type |
Fixed |
| Temperature |
-40℃~85℃ |
| Special Function |
PWM Mode
PSM Mode
Pass-through Mode |
| Package (mm) |
WLCSP 1.253X1.253-9B |
● Input Voltage Range: 2.4V to 5.5V
● 2.5V minimum input voltage for start-up
● Fixed Output Voltage: 5.25V and 5.4V
● IOUT ≥ 1.5A at VIN ≥ 3.3V
● Up to 93% Efficiency
● 35μA Quiescent Current
● 4A switching valley current limit
● Light Load Power Save Mode
● Build-in OVP, OTP, UVLO, Short-circuit Protection
● True Load Disconnect During Shutdown
● WLCSP 1.253mm x 1.253mm-9B Package

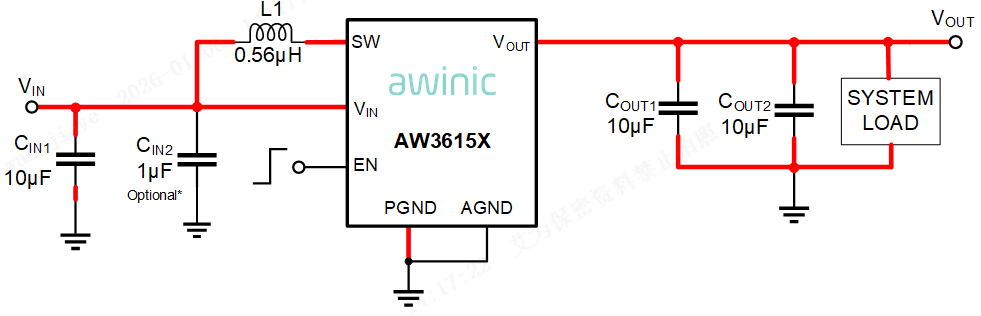

The AW3615X is a large current, high-efficiency synchronous boost regulator with adjustable output voltage. With a wide input voltage range of 2.4V to 5.5V, the device supports applications powered by Li-Ion batteries with extended voltage range.
The AW3615X operates at a quasi-constant 2.5MHz switching frequency and enters power save mode operation at light load currents to maintain high efficiency over the entire load current range. The PSM mode extends the battery life by reducing the quiescent current during light load operation.
The AW3615X operates in pass-through mode when input voltage is higher than output voltage. When it enters pass-through mode and the device stops switching. The rectifying PMOS constantly turns on and low-side switch constantly turns off.
The AW36151 and AW36152 are preset for outputting 5.25V and 5.4V respectively.
The AW3615X is available in a tiny WLCSP 1.253mm x 1.253mm-9B package.
