| BW(GHz) |
1 |
| Surge(V) |
35 |
| DC(V) |
24 |
| Ron (Ω) |
5.9 |
| Temperature |
-40℃~85℃ |
| IO Level (V) |
1.2 |
| Package (mm) |
QFN 2X1.5-10L |
USB 2.0 Hi-speed DPDT switch
Typical -3dB bandwidth: 1GHz
Over voltage protection: 5.1V typical
24V DC protection on D+ and D- Ports
+35V surge protection on D+ and D-
Supply voltage range: 2.7V to 5.5V
5.9Ω switch on-resistance typical
CON: 6pF typical
ICC: 33μA typical
QFN 2.0mm X1.5mm X0.55mm-10L package

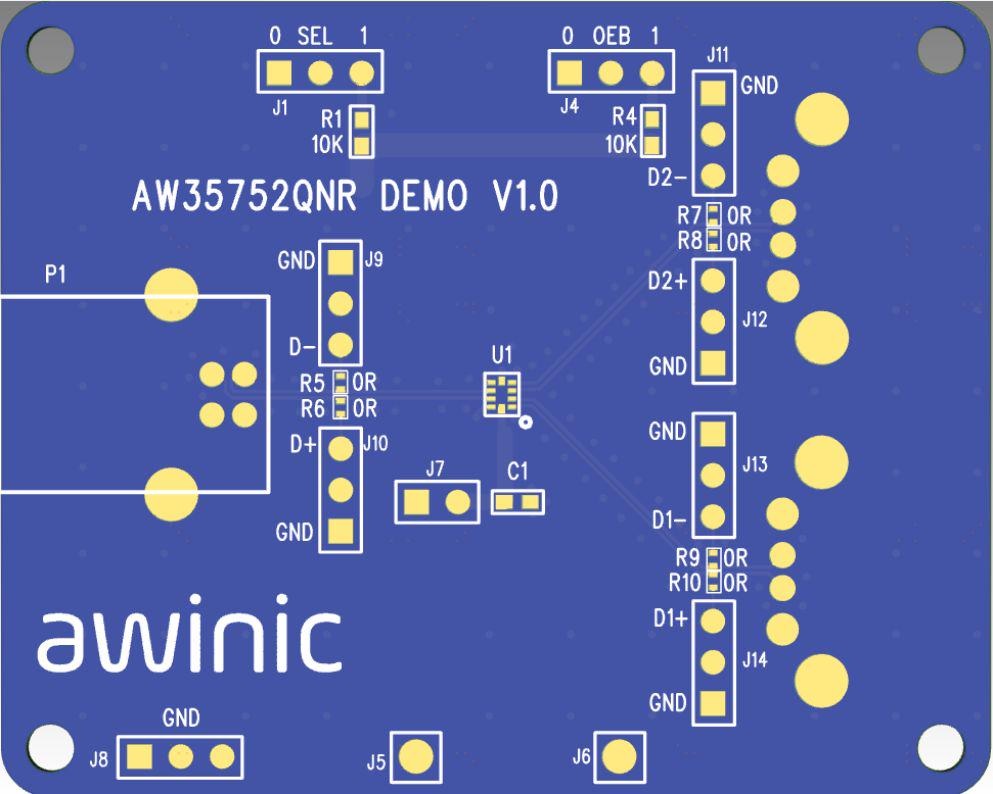

The AW35752 is a Hi-Speed USB 2.0(480Mbps) DPDT(Double Pole Double Throw) switch with integrated protection for USB D+ and D-, it can be configured as a dual 1:2 in 2:1 switch.
The AW35752 protection on the D+/D- pins can tolerate up to 24V DC, when D+ in D- voltage is greater than the OVP(Over-Voltage Protection) threshold, the switch will be automatically shutoff to protect downstream devices.
The device operates over a 2.7V to 5.5V supply range with independent control bits for each switch pair and an on/off enable pin for shutdown mode.
The AW35752 is available in a QFN 2.0mm X1.5mm X0.55mm-10L package.
