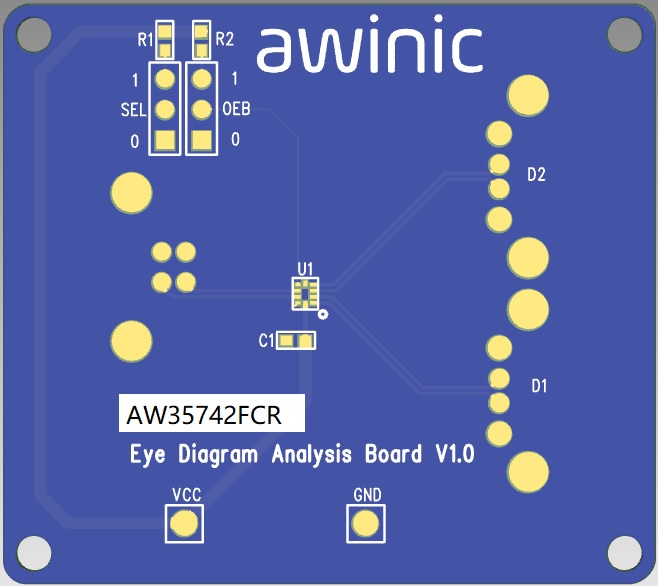

AW35742FCR

DPDT USB Switch With Over Voltage Protection

产品手册 :

参考价格：

<1k￥2.66
≥1k￥1.77

产品详细信息

BW(GHz)	1
Surge(V)	25
DC(V)	20
Ron (Ω)	5
Temperature	-40℃~105℃
IO Level (V)	1.8 3.3
Package (mm)	FCQFN 1.5X2-10L

USB 2.0 Hi-speed DPDT switch Typical -3dB bandwidth: 1GHz Over voltage protection: 4.8V typical 20V DC protection on D+ ａｎｄ D- Ports +25V surge protection on D+ ａｎｄ D- Supply voltage range: 2.7V to 5.5V 5Ω switch on-resistance typical CON: 6pF typical ICC: 35μA typical FCQFN 2.0mm X1.5mm X0.55mm-10L package

The AW35742 is a Hi-Speed USB 2.0(480Mbps) DPDT(Double Pole Double Throw) switch with integrated protection for USB D+ and D-, it can be configured as a dual 1:2 in 2:1 switch.

The AW35742 protection on the D+/D- pins can tolerate up to 20V DC, when D+ in D- voltage is greater than the OVP(Over-Voltage Protection) threshold, the switch will be automatically shutoff to protect downstream devices.

The device operates over a 2.7V to 5.5V supply range.

The AW35742 is available in a FCQFN 2.0mm X1.5mm X0.55mm-10L package.

技术文档

类型	项目标题	语言	日期
产品设计指南	AW3574X硬件设计指南	中文	2023-06-12
产品手册	DS_AW35742_EN_V1.6	英文	2024-05-09
技术帖	【技术帖】Type-C端口默默付出的Switch器件	中文	2024-11-04
