| BW(GHz) |
4 |
| Data Lane |
5 |
| Con(pF) |
1.5 |
| Support I/O (V) |
|
| Xtalk(dB) |
-30 |
| Temperature |
-40℃~85℃ |
| OIRR(dB) |
-24 |
| Package (mm) |
FOPLP 2.08X2.08-36B |
10-Channel 2:1 Switch
Signal Types:
MIPI D-PHY
MIPI C-PHY
General bus, such as IIC,IIS,SPI, etc
-3dB Bandwidth: 4 GHz Typical
Supply Voltage Range(VCC): 1.65V to 5.0V
Input Signals:
For MIPI PHY: 0V to 1.3V
For General bus: 0V to 3.3V
RON: 7.5Ω Typical
ΔRON: 0.35Ω Typical
ICC: 17μA Typical
Low Crosstalk: −30 dB Typical
Low Off Isolation: −24 dB Typical
CON: 1.5 pF Typical
AW35645PLR is a 10-channel 2:1 high speed switch. Each channel has the same specification and can be used as a multi-channel high speed analog switch. It also can be used as a four−data−lane MIPI D−PHY switch or as three-data-lane MIPI C-PHY switch.

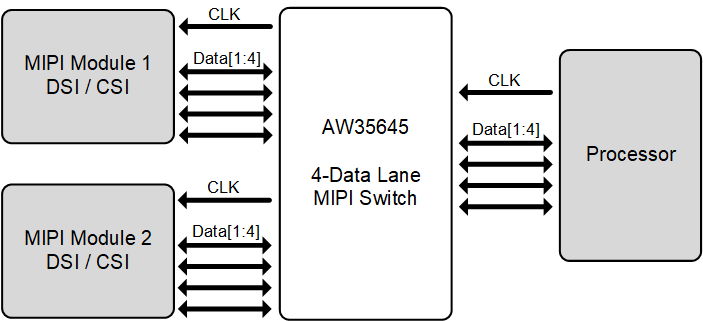

The 10 channel single-pole double-throw switch is optimized for high speed MIPI applications. The AW35645 is designed to facilitate multiple MIPI compliant devices to connect to a CSI or DSI module.
The AW35645PLR is available in a FOPLP 2.08mmX2.08mmX0.62mm-36B package (0.35mm pitch).
