AW35645FBR

Data Lane 2:1 MIPI Switch

产品手册：

在线预览 - AW35645FBR - 产品手册

参考价格

1-99￥4.61
100-249￥3.78
250-499￥3.05
500-999￥2.40
1000+￥1.85

产品详细信息

参数

BW(GHz)	4.5
Data Lane	4
Con(pF)	1.5
Support I/O (V)
Xtalk(dB)	-30
Temperature	-40℃~85℃
OIRR(dB)	-24
Package (mm)	FCBGA 2.4X2.4-36B

封装 | 引脚 | 尺寸

FCBGA 2.4X2.4-36B(0.6)

特性

 10-Channel 2:1 Switch  Signal Types: MIPI D-PHY & C-PHY General bus, such as IIC,IIS,SPI, etc  Supply Voltage Range(VCC): 1.65V to 5.0V  Input Signals: For MIPI PHY: 0V to 1.3V For General bus: 0V to 1.8V  RON: 7.5Ω Typical  ΔRON: 0.2Ω Typical  ICC: 17μA Typical  -3dB Bandwidth: 4.5 GHz Typical  Low Crosstalk: −30 dB Typical  Low Off Isolation: −24 dB Typical  CON: 1.5 pF Typical

说明

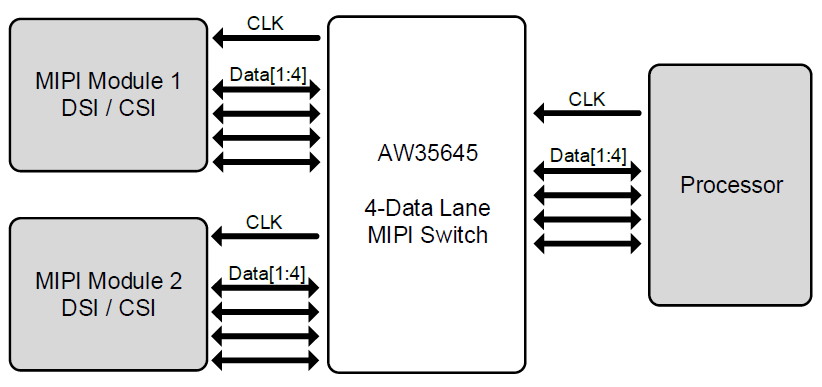

The AW35645 is a four−data−lane MIPI D−PHY switch. The AW35645 can also be configured as three-data-lane MIPI C-PHY switch. This 10 channel single-pole double-throw switch is optimized for high speed MIPI applications. The AW35645 is designed to facilitate multiple MIPI compliant devices to connect to a CSI or DSI module. The AW35645 is available in a FCBGA 2.4mmX2.4mmX0.6mm-36B package.

技术文档

类型	项目标题	语言	日期
产品设计指南	AW3564X 硬件设计指南	中文	2023-03-22
产品设计指南	AW3564X_Hardware_Design_Guide	英文	2024-05-30
产品设计指南	AW3564X_Hardware_Design_Guide	中文	2024-05-30
产品手册	DS_AW35645_EN_V1.6	英文	2024-07-16
