AW35612CSR

USB Type-C Low Speed Ports Protection IC

产品手册：

在线预览 - AW35612CSR - 产品手册

参考价格

1-99￥5.58
100-249￥4.57
250-499￥3.68
500-999￥2.90
1000+￥2.23

产品详细信息

参数

BW(GHz)	0.02
Channel	2
DC_LS(V)	24
DC_HS(V)	/
Surge_LS（Max）(V)	80
Surge_LS（Min）((V)	-80
Temperature	-40℃~85℃
IO Level (V)	1.8 3.3
Package (mm)	WLCSP 1.82X1.27-12B

封装 | 引脚 | 尺寸

WLCSP 1.82X1.27-12B(0.575)

特性

IEC61000-4-5 surge protection ±80V surge protection on CON_LSP1/2 USB Type-C LSP1/2 DC protection CON_LSP1/CON_LSP2: 24V DC Dead battery circuits ｉｎ CON_LSP1/CON_LSP2 Integrated low Rdson switch LSP switch: 340mΩ typical IEC61000-4-2 ESD protection for CON_LSP1/2 Contact discharge: ±8kV Air discharge: ±12kV Default Over-Voltage Protection (OVP) threshold CON_LSP1/CON_LSP2: 5.8V typical Low supply current: 20μA typical LSP1/2 leakage current: 0.5μA typical Fast OVP turn off time: 70ns typical Over-temperature protection (OTP) Under-voltage lockout (UVLO) WLCSP 1.82mm×1.27mm-12B package

说明

AW35612 is a single chip USB Type-C port protection solution, it integrates two channels of switches with OVP protection. CON_LSP1/2 pins can tolerate up to 24V DC. LSP switch can be used to protect CC of Type-C.
AW35612 will disconnect both two channels of switches when any pin of CON_LSP1/2 is above the OVP threshold, LSP1, LSP2 in system side are protected from the high voltage.
AW35612 integrates dead battery circuits in CON_LSP1 and CON_LSP2.
AW35612 integrates ±80V IEC61000-4-5 surge protection on CON_LSP1 and CON_LSP2, and also provides ±8kV contact discharge and ±12kV air discharge IEC61000-4-2 ESD protection on CON_LSP1 and CON_LSP2.

技术文档

	类型	项目标题		语言		日期
	产品设计指南	AW35611&AW35612应用设计指南		中文		2023-05-17
	产品手册	DS_AW35612_EN_V1.2		英文		2024-05-30

设计和开发

如需其他信息或资源，请查看下方列表，点击标题即可进入详情页面。

硬件开发

评估板

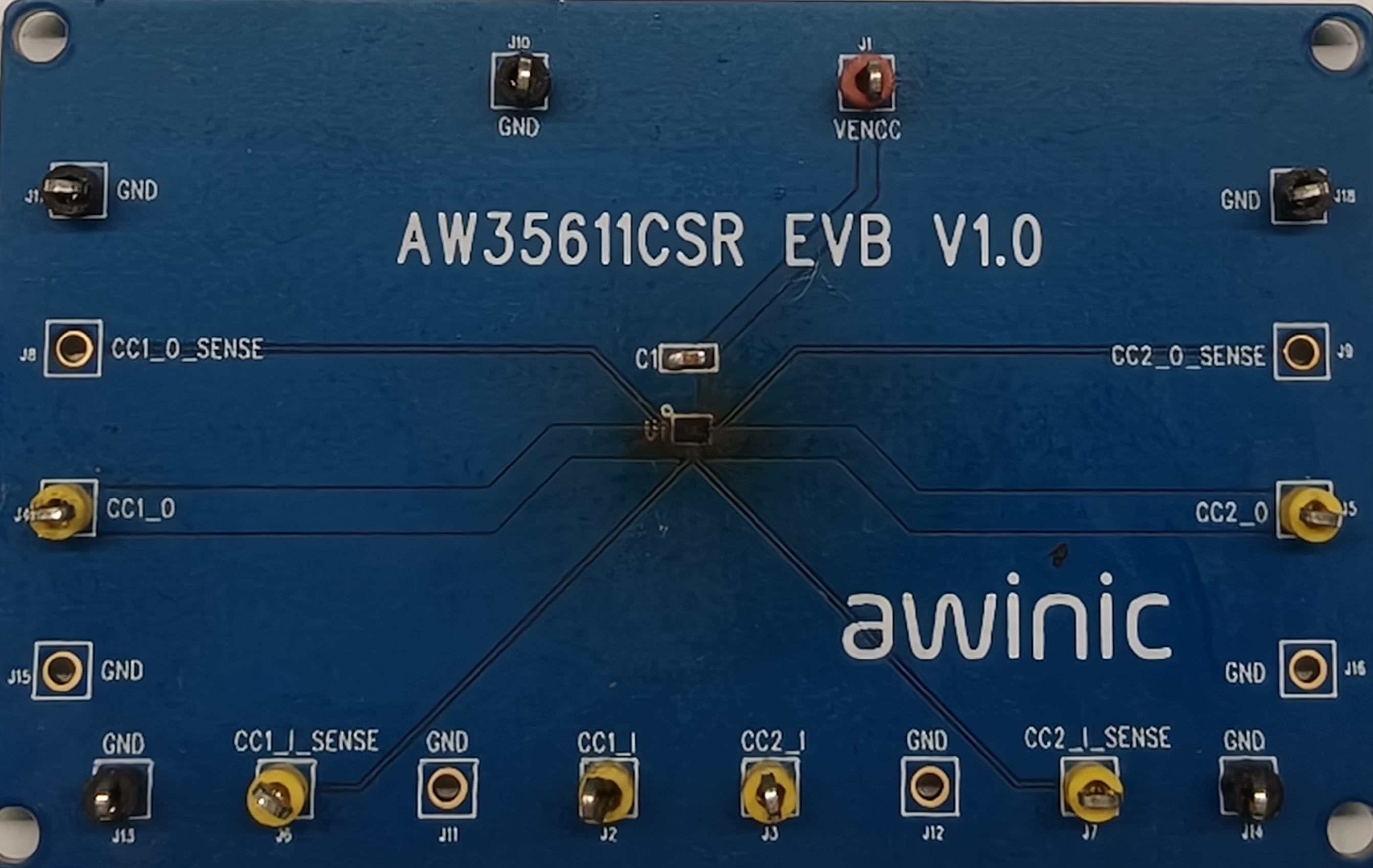

AW35611CSR EVB V1.0 — AW35611CSR和AW35612CSR的EVB评估板,其通道带有OVP保护和死电池等功能。

基于USB Type-C低速端口保护芯片EVB评估板。

了解详情

硬件开发

评估板

AW35611CSR EVB V1.0 — AW35611CSR和AW35612CSR的EVB评估板,其通道带有OVP保护和死电池等功能。

基于USB Type-C低速端口保护芯片EVB评估板。

了解详情
