| Channel |
2 |
| Type |
1:2 |
| Power Supply (Min) (V) |
2.3 |
| Power Supply (Max) (V) |
5.5 |
| Iq (μA) |
1 |
| Ron (Typ) (Ohms) |
0.5 |
| -3dB Bandwidth (MHz) |
80 |
| VINH (Min) (V) |
1.4 |
| VINL (Max) (V) |
0.6 |
| tON (ns) |
100 |
| Temperature |
-40℃~105℃ |
| tOFF (ns) |
100 |
| Package |
QFN 1.8X1.4-10L |
Single Supply Voltage Range: 2.3V to 5.5V
Low On-Resistance: 0.5Ω (TYP) at V+=4.5V
-3V Negative Signal Passing
Fast Switching Times:
tON: 100ns (TYP)
tOFF: 100ns (TYP)
Low On-Resistance Flatness
-3dB Bandwidth: 80MHz
High Off-Isolation: -79dB at 100KHz
Low Crosstalk Rejection: -80dB at 100KHz
TTL/CMOS Compatible
Break-Before-Make Switching
Operation Temperature Range: -40°C to 105°C
Available in QFN 1.8mmX1.4mmX0.55mm-10L Package

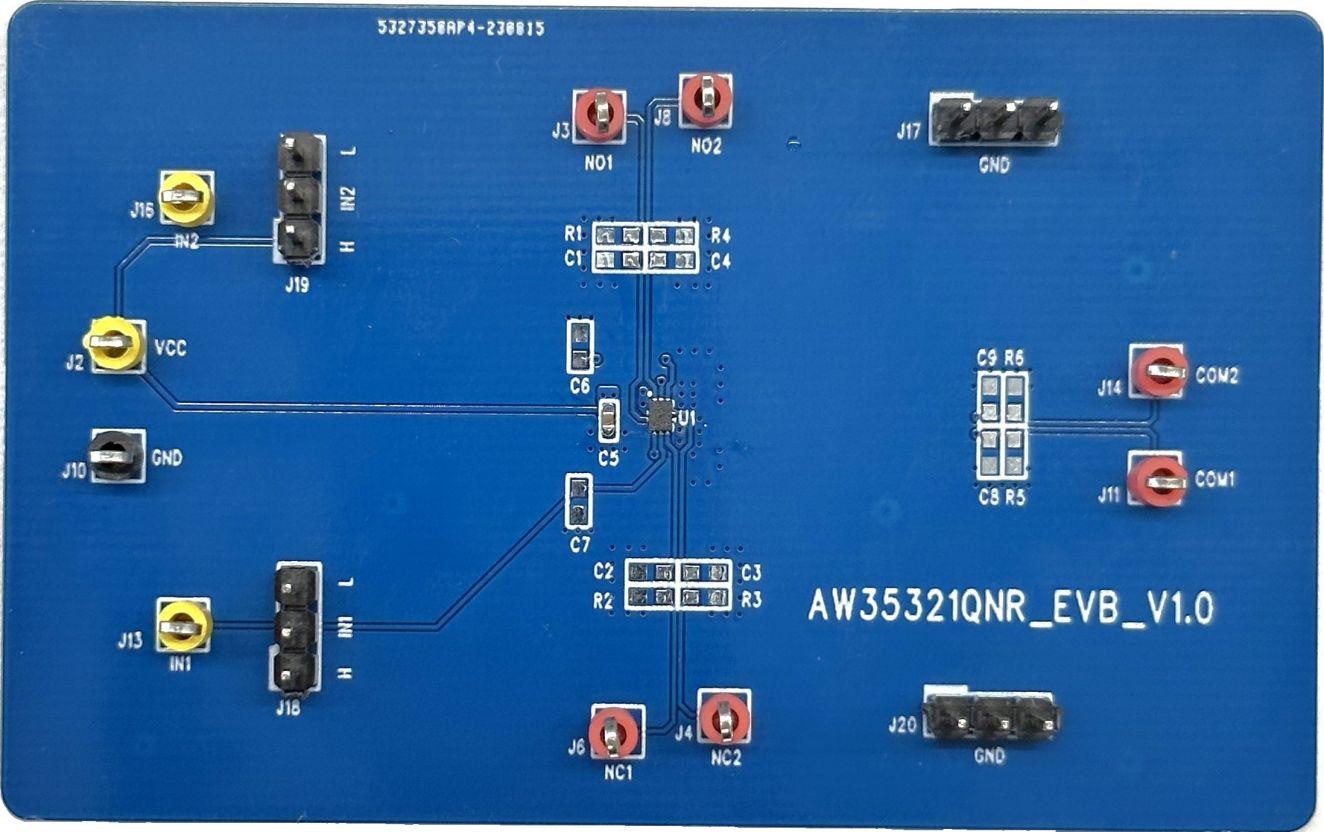

AW35321QNR is a high performance, bidirectional, dual SPDT (single-pole/double-throw) analog switch with negative swing audio capability that features ultra-low RON of 0.5Ω (TYP) at 4.5V V+. It operates over a wide V+ range of 2.3V to 5.5V and is designed for break-before-make operation. The select input is TTL-level compatible.
AW35321QNR features very low quiescent current even when the control voltage is lower than the V+ supply. This feature makes it very suitable for multiple applications, such as portable electronic device, audio and video signal routing, etc. Low power consumption is also one of the important reasons that make it a good choice.
AW35321QNR is available in a Green QFN 1.8mmX1.4mmX0.55mm-10L package. It operates over an ambient temperature range of -40°C to 105°C.
