AW35132CSR

3A Ultra-small Load Switch with Slew Rate Control

产品手册：

在线预览 - AW35132CSR - 产品手册

参考价格

1-99￥3.08
100-249￥2.52
250-499￥2.03
500-999￥1.60
1000+￥1.23

产品详细信息

参数

Channel	1
Controlled Slew Rate	YES
Enable Logic	Active High
Output Discharge	NO
Reverse Current Block	NO
TR (μs)	320
Max Continuous Current (A)	3
Ron (mΩ)	29
Power Supply (Min) (V)	1.2
Power Supply (Max) (V)	5.5
Temperature	-40℃~85℃
IO Level (V)	1.8
Package (mm)	WLCSP 1.355X0.855-6B

封装 | 引脚 | 尺寸

WLCSP 1.355X0.855-6B

特性

•Integrated P-channel MOSFET load switch
•Input voltage: 1.2V to 5.5V
•3A maximum continuous switch current
•Switch on-resistance(typ.):
Rdson=24mΩ at VIN=5.5V
Rdson=29mΩ at VIN=3.3V
Rdson=73mΩ at VIN=1.2V
•Controlled slew rate to limit inrush currents
•Ultra low shutdown current
•Internal EN pull-down resistor
•WLCSP 1.355mm×0.855mm×0.55mm-6B

说明

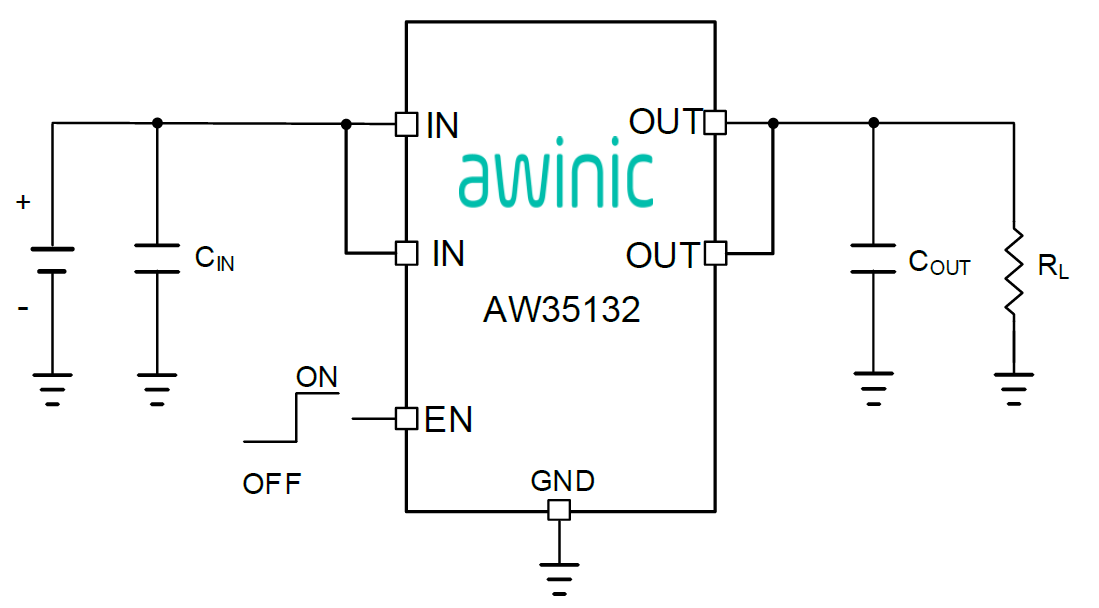

The AW35132 is a load switch with output slew rate control. The device integrates a 29mΩ (typ.) P-channel MOSFET, which can operate over a wide input range of 1.2V to 5.5V.
The AW35132 features output slew rate control, limiting inrush currents during turn-on to protect downstream devices.

技术文档

	类型	项目标题		语言		日期
	产品手册	DS_AW35132_EN_V1.0		英文		2023-06-06
